FMZ API Instructions

Author: Zero, Created: 2020-04-20 10:19:00, Updated: 2023-04-12 14:44:56

xchangeList()

GetExchangeList() returns the list of supported exchanges and the required configuration information.

  • Parameter None

  • Return value

    {
    "code": 0,
    "data": {
        "result": {
            "exchanges": [{
                "website": "https://www.huobi.pro/",
                "name": "Huobi",
                "priority": 1,
                "meta": "[{"desc": "Access Key", "required": true, "type": "string", "name": "AccessKey", "label": "Access Key"}, {"encrypt": true, "name": "SecretKey", "required": true, "label": "Secret Key", "type": "password", "desc": "Secret Key"}]",
                "eid": "Huobi",
                "logo": "huobi.png",
                "id": 1
            }, {
                "website": "https://www.kex.com/",
                "name": "KEX",
                "priority": -99,
                "meta": "[{"desc": "Access Key", "required": true, "type": "string", "name": "AccessKey", "label": "Access Key"}, {"encrypt": true, "name": "SecretKey", "required": true, "label": "Secret Key", "type": "password", "desc": "Secret Key"}, {"encrypt": true, "required": true, "type": "password", "name": "Password", "label": "Trading Password"}]",
                "eid": "KEX",
                "logo": "",
                "id": 43
            },

             ...

            ]
        },
        "error": null
    }
}

DeleteNode(Nid)

DeleteNode(Nid) deletes the docker node (ID is Nid) corresponding to the API KEY in the request of the FMZ Quant Trading platform account.

  • Parameter Nid is of integer type, namely the docker ID.

  • Return Value

    {
    "code":0,
    "data":{
        "result":true,
        "error":null
    }
}

DeleteRobot(…)

DeleteRobot(RobotId, DeleteLogs) deletes the robot with the specified ID (robot ID: RobotId) corresponding to the API KEY in the request under the FMZ Quant account.

  • Parameter RobotId is of integer type, namely the robot ID to be deleted. DeleteLogs is of Boolean type; set DeleteLogs to decide whether to delete the log or not; passing true indicates deleting the log.

  • Return Value

    // Return value after successful deletion
{
    "code": 0,
    "data": {
        "result": 0,
        "error": null
    }
}

GetStrategyList()

GetStrategyList() obtains the strategy information corresponding to the API KEY in the request of the FMZ Quant Trading platform account.

  • Parameter None

  • Return value

    {
    "code": 0,
    "data": {
        "result": {
            "strategies": [{
                "category": 0,
                "username": "yifidslei",
                "is_owner": true,
                "name": "fmz simulation market test strategy",
                "language": 0,
                "hasToken": false,
                "args": "[]",
                "is_buy": false,
                "public": 0,
                "last_modified": "2018-01-18 12:36:03",
                "date": "2018-01-17 09:19:32",
                "forked": 0,
                "id": 63372
            }, {
                "category": 20,
                "username": "bifndslez",
                "is_owner": true,
                "name": "Line drawing library",
                "language": 0,
                "hasToken": false,
                "args": "[]",
                "is_buy": false,
                "public": 0,
                "last_modified": "2017-05-08 09:44:18",
                "date": "2017-04-19 10:38:14",
                "forked": 0,
                "id": 39677
            },

            ...
            ],
            "all": 20
        },
        "error": null
    }
}

NewRobot(Settings)

NewRobot(Settings) creates a new bot according to the parameter settings, corresponding to the API KEY in the request of the FMZ Quant account.

  • Parameter Settings is of JSON object type. Settings is a JSONobject configured by the bot.

    The Settings description is explained as follows:

    Settings = {
    "name": "hedge test",
    /*
    Strategy parameters; the order does not have to be in correspondence with the parameter order, but the name must be the same as the parameter name
    Note: the second element in the parameter array ["MAType", 0, 75882] is an array including three elements, in which the first one "MAType" is the parameter on the pattern referred by the bot-binding strategy, and the second one "0" is the specific value set by the parameter "MAType", and the third one "75882" is the pattern ID containing the parameter "MAType"
    */
    "args": [["Interval", 500], ["MAType", 0, 75882]],
    // Strategy ID, which can be obtained by "GetStrategyList" method
    "strategy": 25189,
    // K-line period parameter; "60" indicates 60 seconds
    "period": 60,
    // it can be specified to run on which docker; no writing of the attribute will lead to automatic assignment
    "node" : 52924,
    // custom field
    "appid": "member2",
    // Specify a bot group
    "group": 1122,
    "exchanges": [
        // ZB; "pid" can be obtained by "GetPlatformList" method
        {"pid": 15445, "pair": "ETH_BTC"},
        // OKEX
        {"pid": 13802, "pair": "BCH_BTC"},
        // In addition to the exchanges configured by the FMZ dashboard (pid identification), you can also set exchange configuration information that has not been configured to operate the bot
        {"eid": "OKEX", "pair": "ETH_BTC", "meta" :{"AccessKey": "xxx", "SecretKey": "yyy"}},
        {"eid": "Huobi", "pair": "BCH_BTC", "meta" :{"AccessKey": "xxx", "SecretKey": "yyy"}}
    ]
}

    Note: When you use the sensitive information, such as platform API KEY, including "meta":{"AccessKey":"xxx","SecretKey":"yyy"} in the configuration of eid, you should know FMZ does not store the data. The data will be sent directly to the docker program, so this information must be configured every time the bot is created or restarted.

    To restart the bot that uses the plugin to support the platform, When configuring the Settings parameter, you should make the following settings for the exchanges attribute:

    {"eid": "Exchange", "label" : "testXXX", "pair": "ETH_BTC", "meta" :{"AccessKey": "123", "SecretKey": "1234", "Front" : "http://127.0.0.1:6666/XXX"}}

    label attribute is to set a label for the exchange object accessed by the current general protocol, which can be obtained by the exchange.GetLabel() function in the strategy.

  • Test strategy:

    • Strategy parameter Interval

    • JavaScript strategy code

      function main(){
    Log(exchange.GetAccount())
    Log(exchange.GetTicker())
    Log(exchange.GetDepth())
    Log("Interval:", Interval)
}

  • Return value

    // Create the bot successfully
{
    "code": 0,
    "data": {
        "result": 74260,
        "error": null
    }
}

PluginRun(Settings)

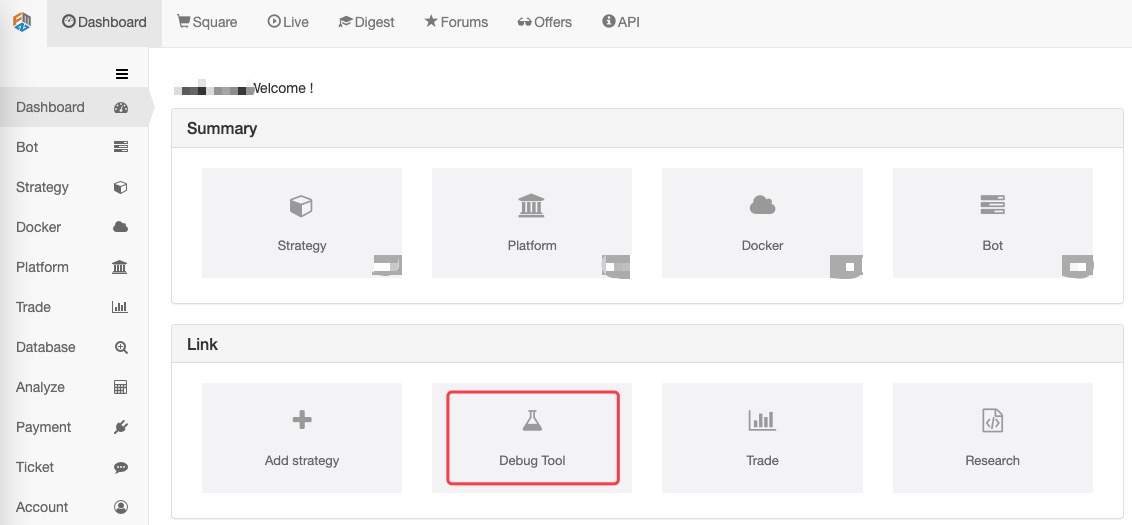

PluginRun(Settings) uses the extended API to call debugging tool function.

  • Parameter Settings is a JSON object, namely the settings in the debugging tool (Settings contains the test code written in the attribute source).

  • Test code Python example:

    #!/usr/bin/python
# -*- coding: utf-8 -*-
import time
import md5
import urllib
import json

# API KEY has been blurred; you can use your own API KEY to test
accessKey = 'f77XXXXXXXXXXXXXXX757'
# API KEY has been blurred; you can use your own API KEY to test
secretKey = 'd8XXXXXXXXXXXXXXXX41ca97ea15'

def api(method, *args):
    d = {
        'version': '1.0',
        'access_key': accessKey,
        'method': method,
        'args': json.dumps(list(args)),
        'nonce': int(time.time() * 1000),
        }
    d['sign'] = md5.md5('%s|%s|%s|%d|%s' % (d['version'], d['method'], d['args'], d['nonce'], secretKey)).hexdigest()
    return json.loads(urllib.urlopen('https://www.fmz.com/api/v1', urllib.urlencode(d)).read())

code = '''
function main() {
    Log(exchange.GetTicker())
    exchange.SetTimeout(2000);
    return exchanges[0].GetTicker()
}
'''

settings = {
    # K-line period parameter "60" indicates 60 seconds
    "period": 60,
    "source": code,
    # The docker ID can specify which docker to run the bot on; if the value is -1, it means automatic assignment
    "node" : 54913,
    "exchanges": [
        {"eid": "OKEX", "pair": "ETH_BTC", "meta" :{"AccessKey": "123abc", "SecretKey": "123abc"}},
        {"eid": "Huobi", "pair": "BCH_BTC", "meta" :{"AccessKey": "123abc", "SecretKey": "123abc"}}
    ]
}

print api("PluginRun", settings)

    Note: {"eid": "OKEX", "pair": "ETH_BTC", "meta" :{"AccessKey": "123abc", "SecretKey": "123abc"}} {"eid": "Huobi", "pair": "BCH_BTC", "meta" :{"AccessKey": "123abc", "SecretKey": "123abc"}} For the exchanges attribute in the settings, the attribute only needs to be set to 1, when calling the PluginRun interface (for only one exchange object can be supported when you use the “Debug Tool” page). No error will be reported when you set 2 exchange objects in settings, but an error will be reported when the second exchange object is accessed in the code.

  • Return value api("PluginRun", settings) returned results:

    {
    u'code': 0,
    u'data': {
        u'result': u'{"logs":[{"PlatformId":"","OrderId":"0","LogType":5,"Price":0,"Amount":0,"Extra":"{\\"Info\\":{\\"date\\":\\"1523715057\\",\\"ticker\\":{\\"high\\":\\"0.06400845\\",\\"vol\\":\\"117648.31546800\\",\\"last\\":\\"0.06204514\\",\\"low\\":\\"0.06178666\\",\\"buy\\":\\"0.06200001\\",\\"sell\\":\\"0.06208728\\"}},\\"High\\":0.06400845,\\"Low\\":0.06178666,\\"Sell\\":0.06208728,\\"Buy\\":0.06200001,\\"Last\\":0.06204514,\\"Volume\\":117648.315468,\\"OpenInterest\\":0,\\"Time\\":1523715057726}","Instrument":"","Direction":"","Time":1523715057726}],"result":"{\\"Info\\":{\\"date\\":\\"1523715057\\",\\"ticker\\":{\\"vol\\":\\"117648.31546800\\",\\"last\\":\\"0.06204514\\",\\"low\\":\\"0.06178666\\",\\"buy\\":\\"0.06200001\\",\\"sell\\":\\"0.06208728\\",\\"high\\":\\"0.06400845\\"}},\\"High\\":0.06400845,\\"Low\\":0.06178666,\\"Sell\\":0.06208728,\\"Buy\\":0.06200001,\\"Last\\":0.06204514,\\"Volume\\":117648.315468,\\"OpenInterest\\":0,\\"Time\\":1523715057774}"}\n',
        u'error': None
    }
}

GetRobotLogs(…)

GetRobotLogs(robotId, logMinId, logMaxId, logOffset, logLimit, profitMinId, profitMaxId, profitOffset, profitLimit, chartMinId, chartMaxId, chartOffset, chartLimit, chartUpdateBaseId, chartUpdateDate, summaryLimit) obtains the robot log information (robot ID: robotId), corresponding to the API KEY in the request of the FMZ Quant account.

  • Parameter

    Parameter Name Type Remarks
    robotId integer Bot ID

    table Log queries the Log data of the database table:

    Parameter Name Type Remarks
    logMinId integer Minimum ID of the log
    logMaxId integer Maximum ID of the log
    logOffset integer After the range is determined by logMinId and logMaxId, the logOffset offset (how many records are skipped) begins to be used as the starting position for obtaining data
    logLimit integer After determining the starting position, the number of selected data records

    table Profit queries the Profit data of the database table:

    Parameter Name Type Remarks
    profitMinId integer Minimum ID of record
    profitMaxId integer Maximum ID of record
    profitOffset integer The offset (how many records are skipped) begins to be used as the starting position
    profitLimit integer After determining the starting position, the number of selected data records

    table Chart queries the Chart data of the database table:

    Parameter Name Type Remarks
    chartMinId integer Minimum ID of record
    chartMaxId integer Maximum ID of record
    chartOffset integer Offset
    chartLimit integer the number of the records to be obtained
    chartUpdateBaseId integer Query the updated base ID
    chartUpdateDate integer Data record updates the timestamp, which will filter out the records larger than this timestamp

    summaryLimit queries the data of the status bar:

    It queries the status bar data of the bot. The parameter type is integer. Setting to “0” means there is no need to query the status bar information, and setting to non-zero number indicates the number of bytes of the status bar information to be queried (the interface does not limit the data quantity, so you can specify a larger summaryLimit parameter to get all status bar information). The status bar data is stored in the returned data summary.

    Python example:

    api('GetRobotLogs', 63024, 0, 0, 7, 2, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0)    # For the specific code, please refer to the above content: 4. Simple examples, which will not be repeated here; here only write the call and pass of "GetRobotLogs"

  • Return value returned data:

    {
    "code": 0,
    "data": {
        "result": {
            "status": 1,
            "updateTime": 1527049990197,
            "wd": 0,
            // The first data structure in logs is the log records in the strategy log table in the bot database
            "logs": [{
                "Max": 3984,
                "Arr": [
                    [3977, 3, "Futures_OKCoin", "", 0, 0, "Sell(688.9, 2): 20016", 1526954372591, "", ""],
                    [3976, 5, "", "", 0, 0, "OKCoin:this_week too many positions, long: 2", 1526954372410, "", ""]
                ],
                "Total": 1503,
                "Min": 2482
            }, {
                // The second data structure in logs is the log records in the strategy log table in the bot database
                "Max": 0,
                "Arr": [],
                "Total": 0,
                "Min": 0
            }, {
                // The third data structure in logs is the log records in the strategy log table in the bot database
                "Max": 0,
                "Arr": [],
                "Total": 0,
                "Min": 0
            }],
            "chart": "",
            "refresh": 1527049988000,
            "summary": "...",
            "chartTime ": 0,
            "node_id ": 50755,
            "online ": true
        },
        "error ": null
    }
}

  • The strategy log table in the database

    The Arr attribute value description in the above returned result data:

    "Arr": [
    [3977, 3, "Futures_OKCoin", "", 0, 0, "Sell(688.9, 2): 20016", 1526954372591, "", ""],
    [3976, 5, "", "", 0, 0, "OKCoin:this_week too many positions, long: 2", 1526954372410, "", ""]
],
    id logType eid orderId price amount extra date contractType direction
    3977 3 “Futures_OKCoin” "" 0 0 “Sell(688.9, 2): 20016” 1526954372591 "" ""
    3976 5 "" "" 0 0 “OKCoin:this_week too many positions, long: 2” 1526954372410 "" ""

    extra is the attached message of the printed log.

    Specific log types represented by logType value:

    logType: 0 1 2 3 4 5 6
    Meaning of logType: BUY SALE RETRACT ERROR PROFIT MESSAGE RESTART
    Chinese Meaning Buy order type log Sell order type log Withdraw Error Revenue Log Restart

  • Log table of the revenue chart in the database The data in the chart’s log table is consistent with the revenue log in the strategy log table.

    "Arr": [
    [202, 2515.44, 1575896700315],
    [201, 1415.44, 1575896341568]
]

    Take one of the log data as an example:

    [202, 2515.44, 1575896700315]

    202 as log ID; 2515.44 as revenue value; 1575896700315 as timestamps.

  • Chart log table in the database

    "Arr": [
    [23637, 0, "{\"close\":648,\"high\":650.5,\"low\":647,\"open\":650,\"x\":1575960300000}"],
    [23636, 5, "{\"x\":1575960300000,\"y\":3.0735}"]
]

    Take one of the log data as an example:

    [23637, 0, "{\"close\":648,\"high\":650.5,\"low\":647,\"open\":650,\"x\":1575960300000}"],

    23637 is the log ID, 0 is the index of the chart data series, and the last data "{\"close\":648,\"high\":650.5,\"low\":647,\"open\":650,\"x\":1575960300000}" is the log data; This data is the K-line data on the chart.

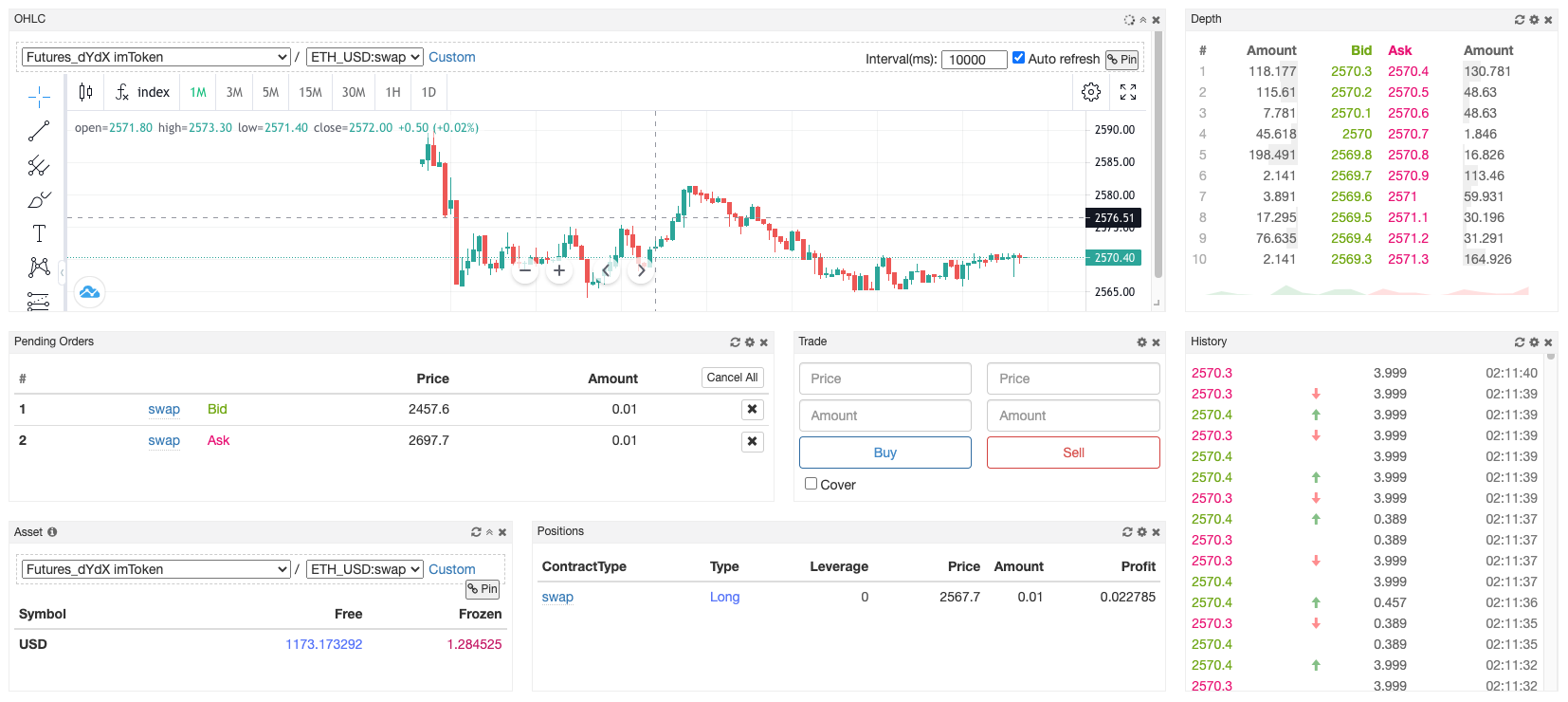

Trading Plugin

Introduction

In order to improve the functions of the trading terminal and well facilitate manual trading, a plug-in function is now available. The location is shown as follows:


Principle of Plugin

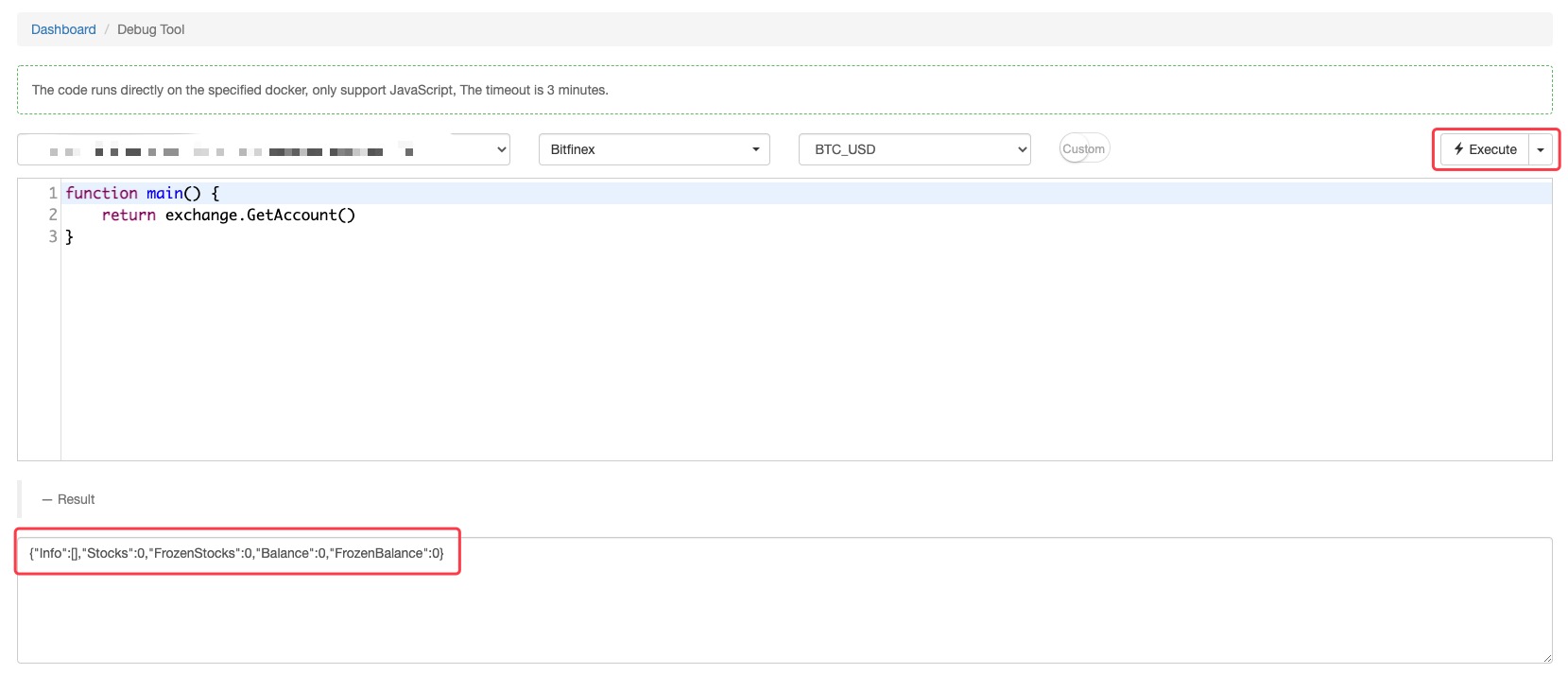

The principle is the same as the debugging tool: send a piece of code to the docker of the “Trade” terminal page to execute, and support the return of charts and tables (the debugging tool is also able to support after upgrade). The function is the same as debugging tool, it can only be executed for 3 minutes, without charging. It can realize some simple small functions, complex strategies still need to run in real trading.

Plugin Writing

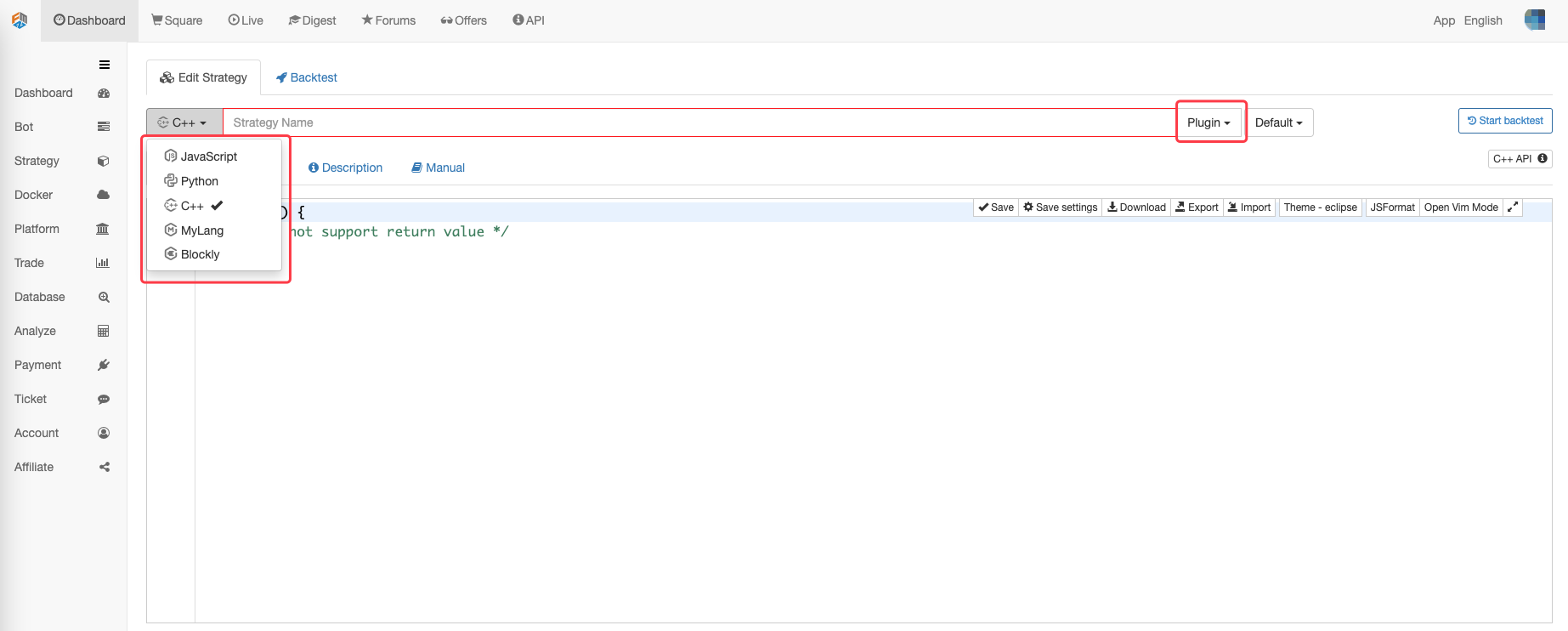

On the “New Strategy” page, set the strategy type to: Trading Plugin, which supports JavaScript, Python, cpp and MyLanguage.

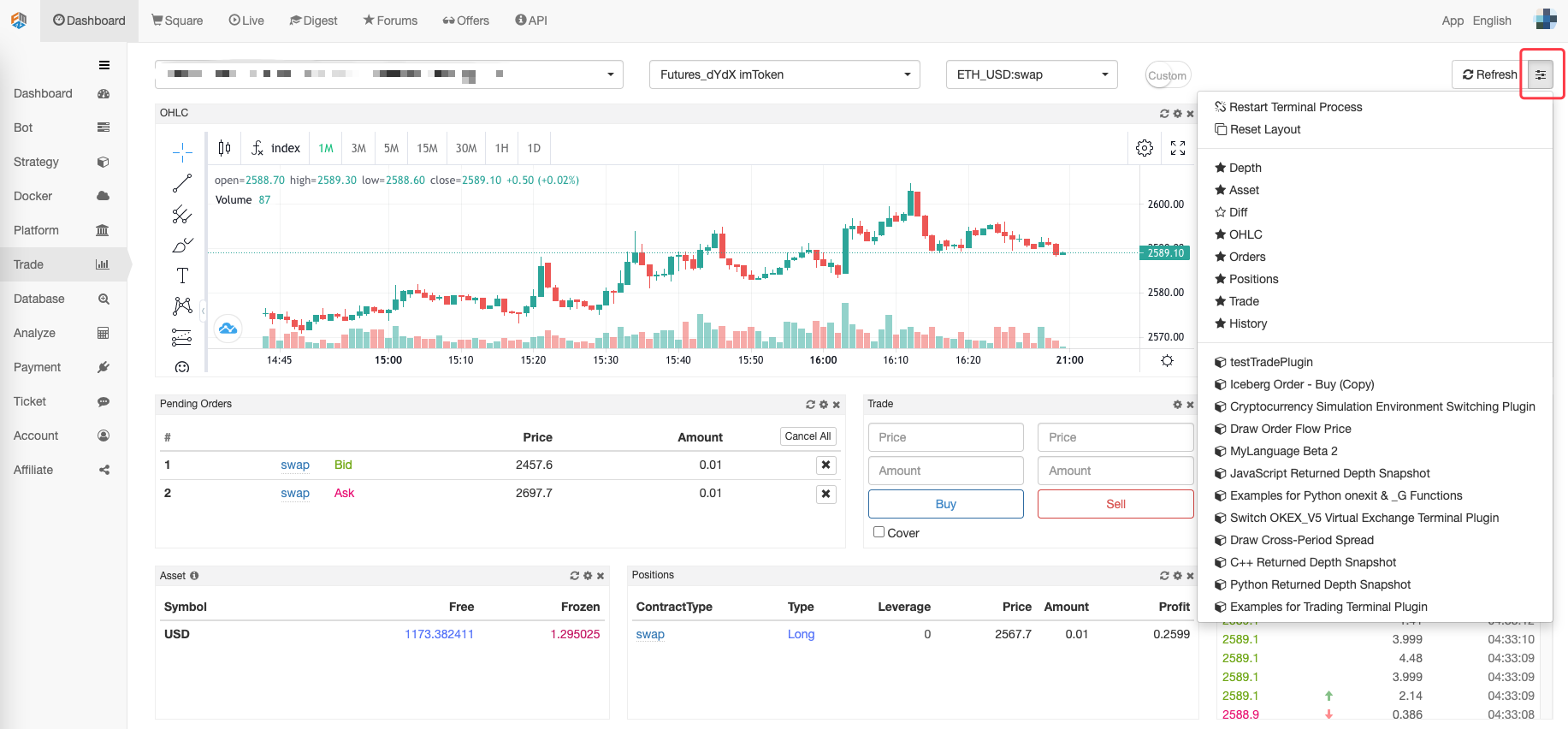

Usage of Plugin

The plugin can execute the code for a period of time, and it can perform some simple operations, such as iceberg orders, pending orders, order cancellation and order calculation. Same as the debugging tool, it uses return to return the results, and it can also directly return the charts and tables. Here are a few examples, and other functions can be explored by yourself.

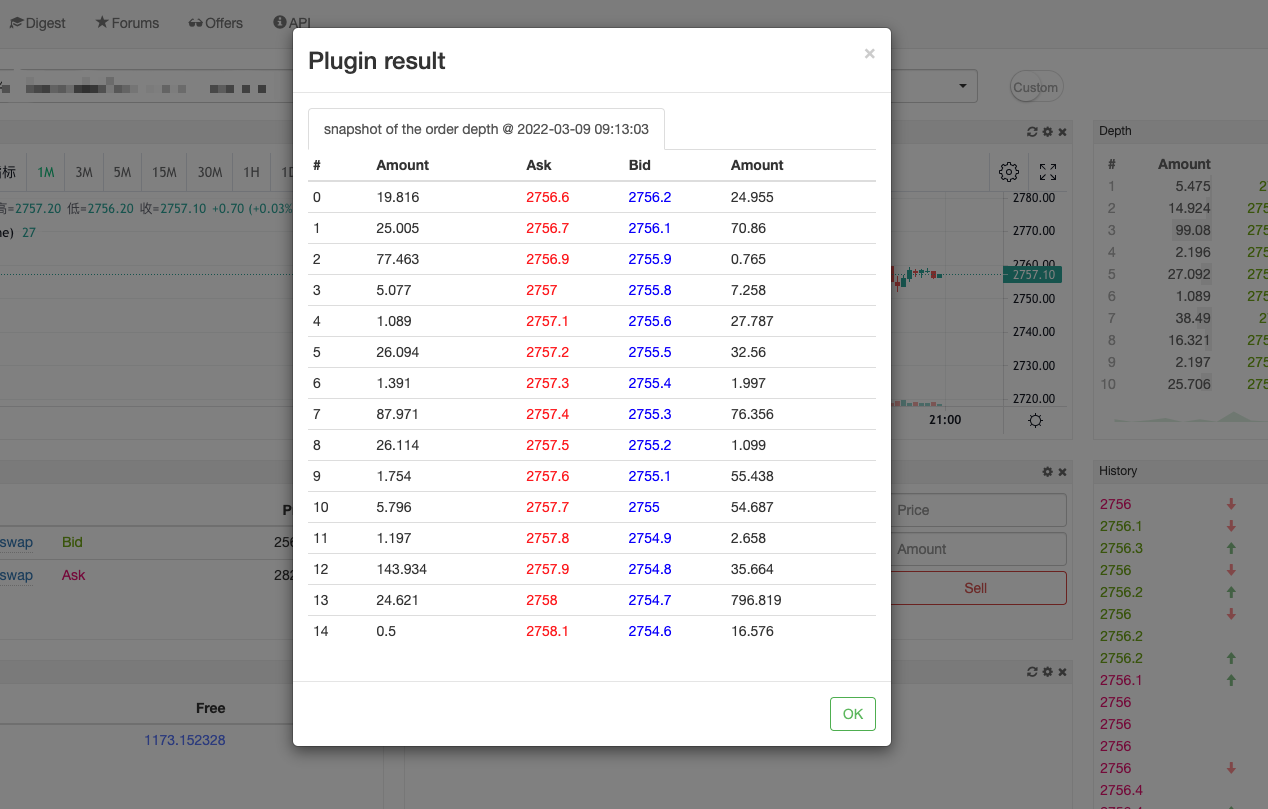

  • Return to the depth snapshot

    // Return to the depth snapshot
function main() {
    var tbl = {
        type: 'table',
        title: 'snapshot of the order depth @ ' + _D(),
        cols: ['#', 'Amount', 'Ask', 'Bid', 'Amount'],
        rows: []
    }
    var d = exchange.GetDepth()
    for (var i = 0; i < Math.min(Math.min(d.Asks.length, d.Bids.length), 15); i++) {
        tbl.rows.push([i, d.Asks[i].Amount, d.Asks[i].Price+'#ff0000', d.Bids[i].Price+'#0000ff', d.Bids[i].Amount])
    }
    return tbl
}

    def main():
    tbl = {
        "type": "table",
        "title": "snapshot of the order depth @ " + _D(),
        "cols": ["#", "Amount", "Ask", "Bid", "Amount"],
        "rows": []
    }
    d = exchange.GetDepth()
    for i in range(min(min(len(d["Asks"]), len(d["Bids"])), 15)):
        tbl["rows"].append([i, d["Asks"][i]["Amount"], str(d["Asks"][i]["Price"]) + "#FF0000", str(d["Bids"][i]["Price"]) + "#0000FF", d["Bids"][i]["Amount"]])
    return tbl

    void main() {
    json tbl = R"({
        "type": "table",
        "title": "abc",
        "cols": ["#", "Amount", "Ask", "Bid", "Amount"],
        "rows": []
    })"_json;

    tbl["title"] = "snapshot of the order depth @" + _D();
    auto d = exchange.GetDepth();
    for(int i = 0; i < 5; i++) {
        tbl["rows"].push_back({format("%d", i), format("%f", d.Asks[i].Amount), format("%f #FF0000", d.Asks[i].Price), format("%f #0000FF", d.Bids[i].Price), format("%f", d.Bids[i].Amount)});
    }

    LogStatus("`" + tbl.dump() + "`");
    // C++ does not support "return json" to display the table, and you can create a bot to display the table of the status bar
}

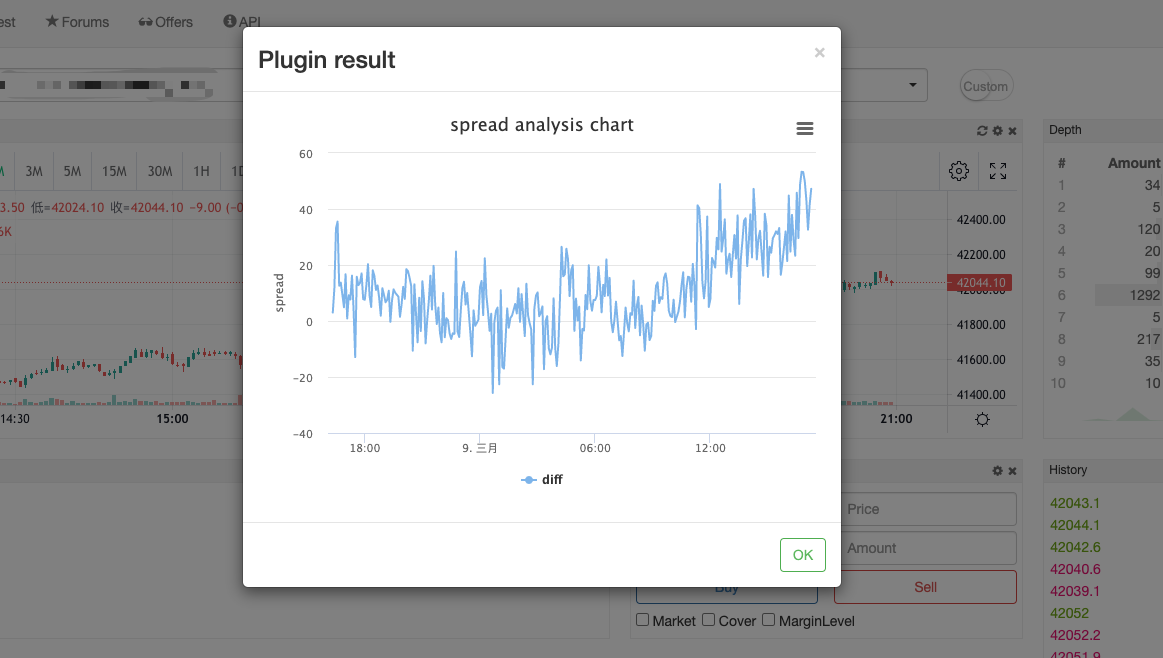

  • Draw cross-period spreads

    // Draw cross-period spreads
var chart = {
    __isStock: true,
    title : { text : 'spread analysis chart'},
    xAxis: { type: 'datetime'},
    yAxis : {
        title: {text: 'spread'},
        opposite: false
    },
    series : [
        {name : "diff", data : []}
    ]
}

function main() {
    exchange.SetContractType('quarter')
    var recordsA = exchange.GetRecords(PERIOD_M5)
    exchange.SetContractType('this_week')
    var recordsB = exchange.GetRecords(PERIOD_M5)

    for(var i = 0; i < Math.min(recordsA.length, recordsB.length); i++){
        var diff = recordsA[recordsA.length - Math.min(recordsA.length, recordsB.length) + i].Close - recordsB[recordsB.length - Math.min(recordsA.length, recordsB.length) + i].Close
        chart.series[0].data.push([recordsA[recordsA.length - Math.min(recordsA.length, recordsB.length) + i].Time, diff])
    }
    return chart
}

    chart = {
    "__isStock": True,
    "title": {"text": "spread analysis chart"},
    "xAxis": {"type": "datetime"},
    "yAxis": {
        "title": {"text": "spread"},
        "opposite": False
    },
    "series": [
        {"name": "diff", "data": []}
    ]
}

def main():
    exchange.SetContractType("quarter")
    recordsA = exchange.GetRecords(PERIOD_M5)
    exchange.SetContractType("this_week")
    recordsB = exchange.GetRecords(PERIOD_M5)

    for i in range(min(len(recordsA), len(recordsB))):
        diff = recordsA[len(recordsA) - min(len(recordsA), len(recordsB)) + i].Close - recordsB[len(recordsB) - min(len(recordsA), len(recordsB)) + i].Close
        chart["series"][0]["data"].append([recordsA[len(recordsA) - min(len(recordsA), len(recordsB)) + i]["Time"], diff])
    return chart

    // C++ does not support "return json" structure drawing


    There are other examples in the “More Strategies”, such as buy / sell in small quantities, Strategy Address.

How to Use

  • Add the plugin module of trading terminal As shown in the figure, open the module add menu on the “Trade” terminal page, the trading terminal plugins in the strategy library of the current FMZ account will be displayed in the list automatically, find the plugin to be added and click “Add”.


  • Run the plugin Click “Execute”, and the trading terminal plugin will start running. The plugin will not display the log, but it can return display table.

  • Time of running the plugin The maximum running time of the plugin is 3 minutes; and it will stop running automatically after exceeding 3 minutes.

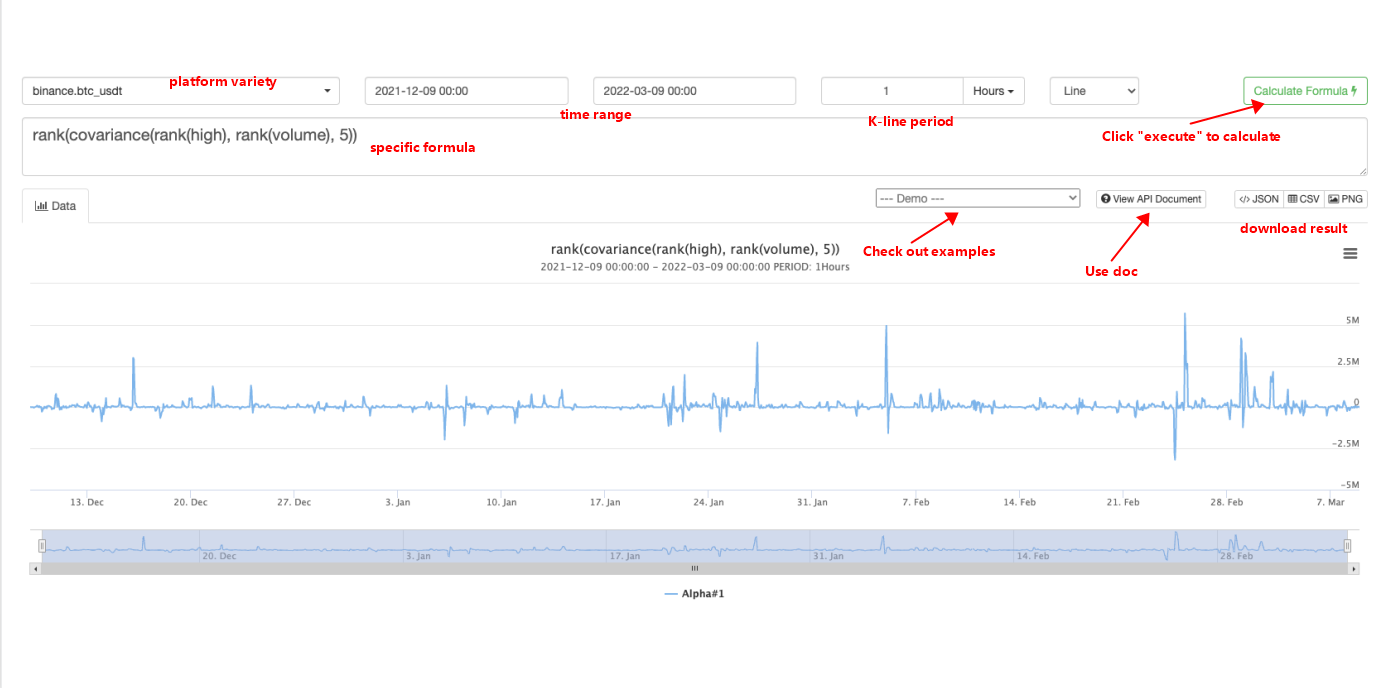

Alpha Factor Analysis Tool

Introduction

The analysis formula refers to the market quote calculation method in the public alpha101 of worldquant: http://q.fmz.com/chart/doc/101_Formulaic_Alphas.pdf, which is basically compatible with its grammar (with explanations for unimplemented features), and has been enhanced. It is used for quickly performing calculations on time series and validating ideas, Use Address.

Page Introduction:


Functions & Operators

"{}" below represents placeholder, all expressions are not case sensitive, and “x” represents data time series

  • abs(x), log(x), sign(x) literally means absolute value, logarithm and sign function, respectively.

The following operators, including +, -, *, /, >, <, also meet the meanings of their standards; == represents “equal or not”; || means “or”; x? y: z indicates ternary operator.

  • rank(x): the ranking of cross-sections, returning the percentage of the location; it is necessary to specify multiple candidate target pools, which cannot be calculated for a single market and will directly return the original result.
  • delay(x, d): the value before the d period of the sequence.
  • sma(x, d): the simple moving average of the d period of the sequence.
  • correlation(x, y, d): the correlation coefficient of time series x and y over the past d periods.
  • covariance(x, y, d): the covariance of the time series x and y in the past d periods.
  • scale(x, a): it normalizes the data, so that sum(abs(x)) = a (“a” defaults to 1).
  • delta(x, d): the current value of the time series x minus the value before d periods.
  • signedpower(x, a): x^a.
  • decay_linear(x, d): weighted d-period moving average of time series x, with weights being d, d-1, d-2… 1 (normalized).
  • indneutralize(x, g): the neutral processing for industry classification “g”, currently not supported.
  • ts_{O}(x, d): perform “O” operations on the time series x in the past d periods (“O” can specifically represent “min” and “max”, etc., introduced later), “d” will be converted to an integer.
  • ts_min(x, d): the minimum value of the past d periods.
  • ts_max(x, d): the maximum value of the past d periods.
  • ts_argmax(x, d): ts_max(x, d) position.
  • ts_argmin(x, d): ts_min(x, d) position.
  • ts_rank(x, d): sorting of the past d periods time series x values (percentage sorting).
  • min(x, d): ts_min(x, d).
  • max(x, d): ts_max(x, d).
  • sum(x, d): the sum of the past d periods.
  • product(x, d): the product of the past d periods.
  • stddev(x, d): the standard deviation of the past d periods.

Input Data

The input data is not case sensitive; the default data is the selected symbol on the web page, or it can be specified directly, such as binance.ada_bnb

  • returns: returns of closing price.
  • open, close, high, low, volume: namely open price, close price, highest price, lowest price and trading volume during the period.
  • vwap: volume-weighted executed price, not implemented yet, which is currently the closing price.
  • cap: total market value, not implemented yet.
  • IndClass: industry classification, not implemented yet.

Others

Outputting multiple results (expressed by list) at once is supported; for example, [sma(close, 10), sma(high, 30)] will draw two lines on the chart. In addition to inputting time series data, it can also be used as a simple calculator.

Appendix

General Protocol

For FMZ Quant Trading platform that has not encapsulated the exchange API interface yet, it can be accessed by writing a general protocol plug-in program. You can use this general protocol to access any exchange that provides API interface for trading, and the following two protocols are supported:

The difference between the FIX protocol plug-in program and the REST protocol plug-in program is only the interaction between the protocol plug-in program and the exchange interface. The protocol plug-in program has the same detail processing of the docker program interaction and data format as FMZ Quant. For details, please refer to the examples in the above links.

Trading Terminal

The FMZ Quant Trading platform provides a modular and customizable “Trade” page. You can freely add various data modules and trading function modules, and even develop their own code modules (trading terminal plugins). With its highly flexible and free usage, it also greatly facilitates users of manual trading and semi-programmatic trading. Various modules on the “Trade” page can be dragged and zoomed, the settings of the trading pairs and exchanges bound by the modules can be modified, and multiple modules of the same type can be added.


Debugging Tool

Debug Tool page provides an environment to quickly test codes by bot, supporting only JavaScript currently.

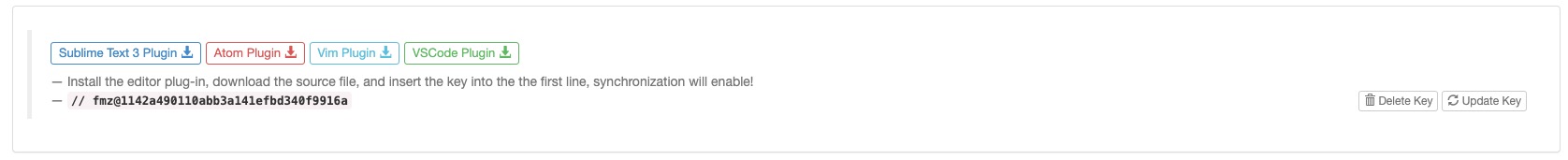

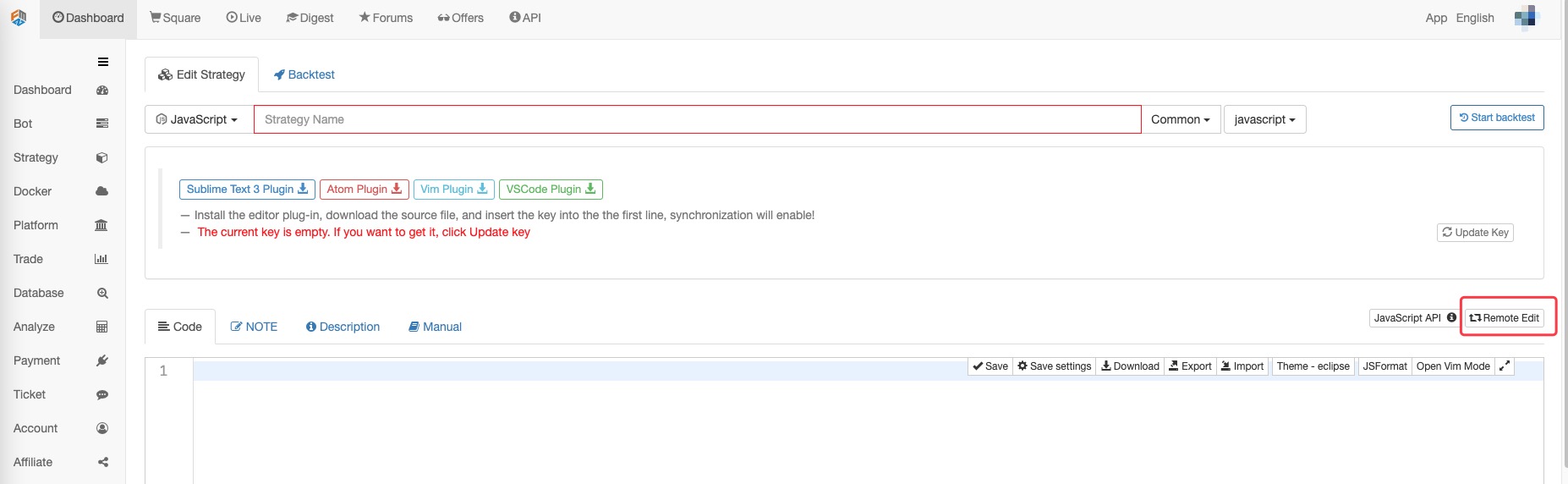

Remote Editing

It supports the local editor remote synchronization strategy code to FMZ Quant Trading platform, and it supports Sublime Text/Atom/Vim/VSCode editor. On the strategy editing page, click “Remote Edit” to unfold the plugin download address button to display the remote synchronization key (token) of the current strategy.


Click “Update key” to refresh the current key display, and click “Delete Key” to delete the secret key (token) of the current strategy.


The plug-in installation methods of different editors are slightly different. You can click the download button to jump to the specific remote synchronization plug-in item.

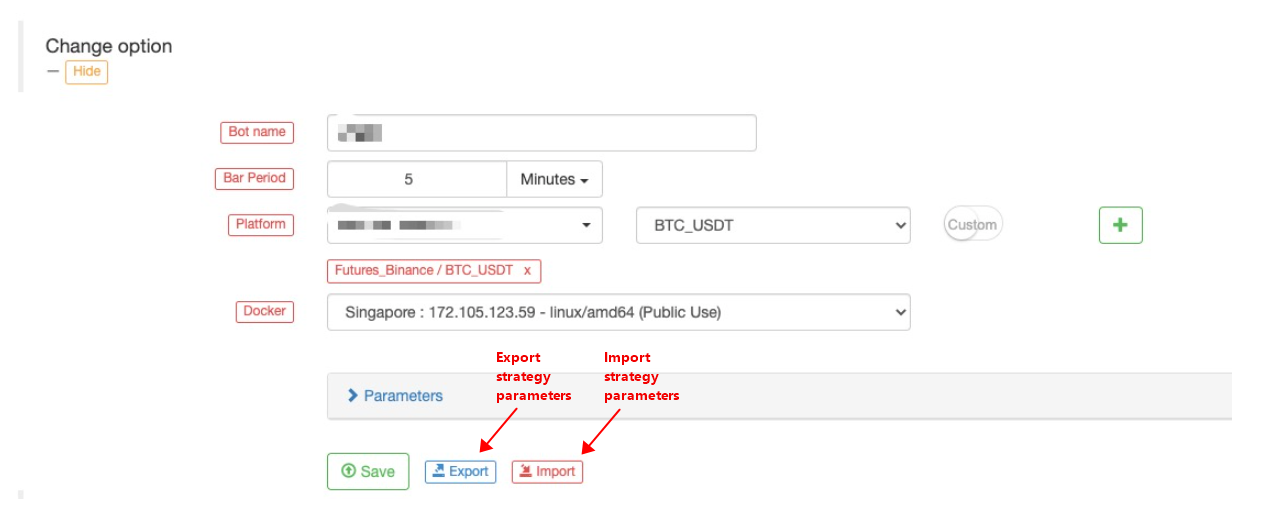

Bot Parameters Import & Export


When running the live trading, you need to save the parameter data of the real bot configuration, you can click the “Export” button. The exported strategy parameters will be saved in the JSON file, and the exported strategy parameter configuration can also be imported to the real bot again. Click the “Import” button to import the saved strategy bot parameters to the current real bot. Then, click “Save” to save.

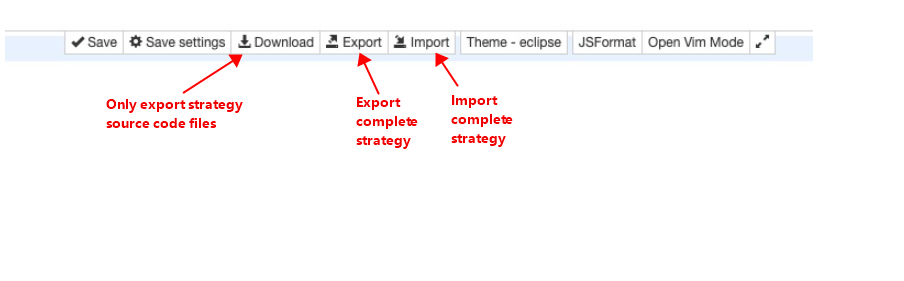

Strategy Import & Export Files


  • Download Source Code Export the strategy source code, and the type of the export file is based on the strategy programming language. JavaScript strategy exports the files with the extension js; python strategy exports the files with the extension py; C++ strategy exports the files with the extension cpp; Mylanguage strategy exports the files with the extension txt. Note that only the strategy source code is exported, not including strategy parameters, template references, etc.

  • Export Strategy Export the complete strategy, including all strategy information, such as strategy source code and parameter design. The export file is an xml file.

  • Import Strategy Use the xml file exported by the “Export” function, and click the “Import” button on the strategy editing page to select the xml to be imported, that is, you can import a complete strategy. After importing, you need to click the “Save” button to save the strategy.

Multilingual Support

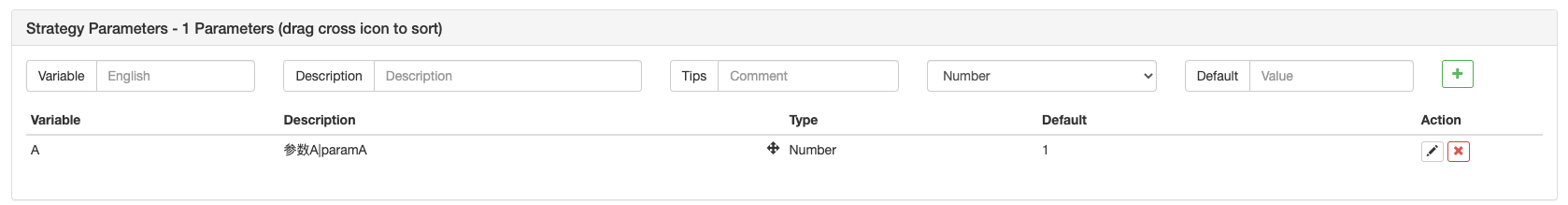

Strategy names and strategy parameter descriptions can be written in Chinese|English, displayed in the language recognized by web pages automatically.

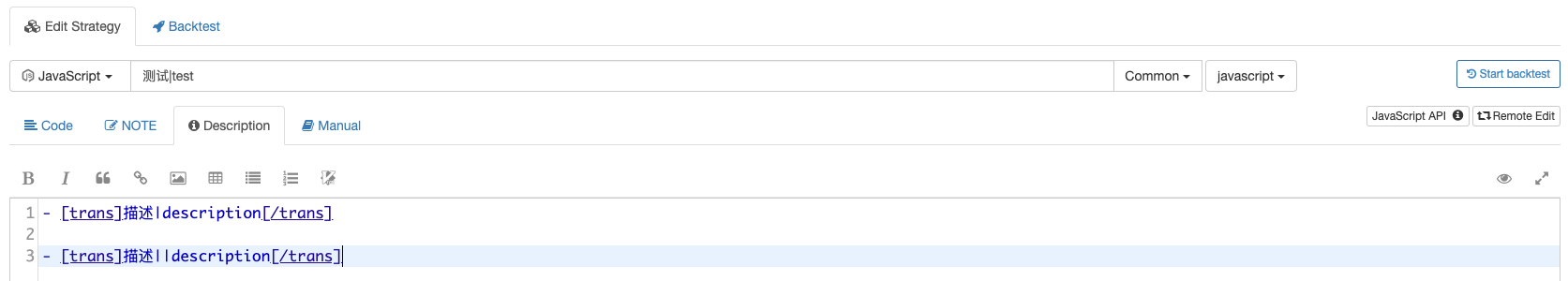

In other places, such as: strategy description, usage instruction and other texts in Markdown format, using [trans]Chinese|English[/trans] or [trans]Chinese||English[/trans] can also achieve the effect of automatic recognition. The effect of the above example is shown in the following figure:

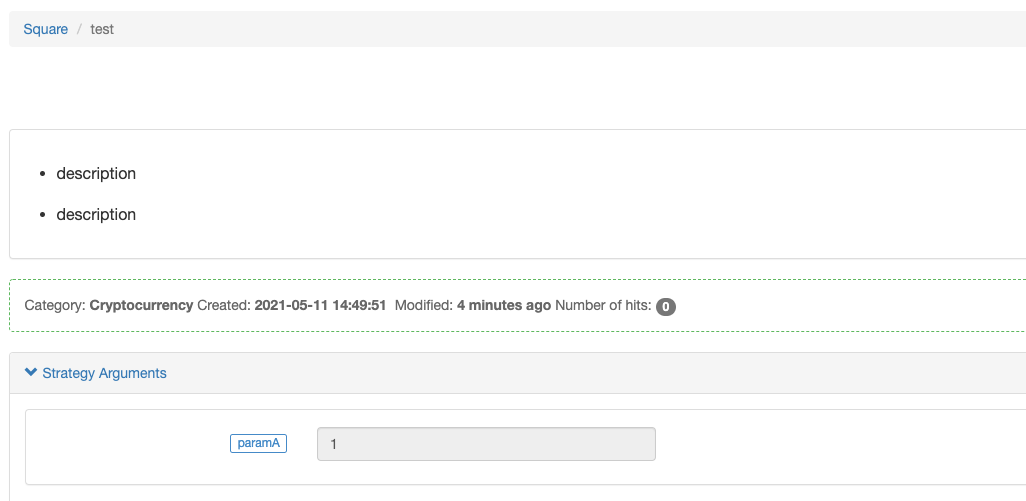

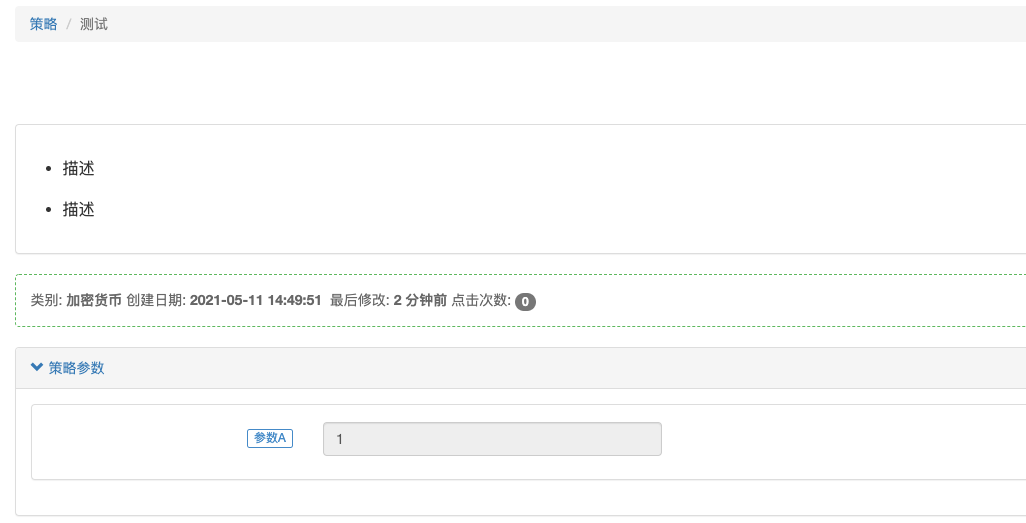

  • Page display in Chinese: img

  • Page display in English: img

After switching the language, it will take effects after refreshing the web page.

Functions that can write strings in the strategy code also support language switching, such as function Log, function LogStatus, etc.

function main() {
    Log("[trans]日志|log[/trans]")
    var table = {
        type: "table",
        title: "[trans]操作|option[/trans]",
        cols: ["[trans]列1|col1[/trans]", "[trans]列2|col2[/trans]", "[trans]操作|option[/trans]"],
        rows: [
            ["[trans]比特币|BTC[/trans]", "[trans]以太坊|ETH[/trans]", {"type": "button", "cmd": "coverAll", "name": "平仓|cover", "description": "描述|description"}]  // Note: It doesn't need to add [trans] tag in the button
        ]
    }
    LogStatus("[trans]信息|message[/trans]", "\n`" + JSON.stringify(table) + "`")
    throw "[trans]错误|error[/trans]"
}

import json
def main():
    Log("[trans]日志|log[/trans]")
    table = {
        "type": "table",
        "title": "[trans]操作|option[/trans]",
        "cols": ["[trans]列1|col1[/trans]", "[trans]列2|col2[/trans]", "[trans]操作|option[/trans]"],
        "rows": [
            ["[trans]比特币|BTC[/trans]", "[trans]以太坊|ETH[/trans]", {"type": "button", "cmd": "coverAll", "name": "平仓|cover", "description": "描述|description"}]
        ]
    }
    LogStatus("[trans]信息|message[/trans]", "\n`" + json.dumps(table) + "`")
    raise Exception("[trans]错误|error[/trans]")

void main() {
    Log("[trans]日志|log[/trans]");
    json table = R"({
        "type": "table",
        "title": "[trans]操作|option[/trans]",
        "cols": ["[trans]列1|col1[/trans]", "[trans]列2|col2[/trans]", "[trans]操作|option[/trans]"],
        "rows": [
            ["[trans]比特币|BTC[/trans]", "[trans]以太坊|ETH[/trans]", {"type": "button", "cmd": "coverAll", "name": "平仓|cover", "description": "描述|description"}]
        ]
    })"_json;
    LogStatus("[trans]信息|message[/trans]", "\n`" + table.dump() + "`");
    Panic("[trans]错误|error[/trans]");
}

WexApp Simulation Market

  • 24-hour non-stop operation, powerful trading matching system, simulating real trading.
  • Powerful market-making bot that provides good liquidity and depth of the order book.
  • Complete API interface support, not only can be tested on FMZ Quant for simulated quantitative trading, but also can connect to the API interface by yourself, address: WexApp.

Docker Program Parameters

After downloading the docker software, the executable file after decompression (file name: robot) is the docker program; the parameters can be specified for the docker program, when deploying the docker.

  • -v: check the information including the version and compilation time of the current docker program. The complete execution command is based on Apple Mac System: ./robot -v.
  • -s: the address specified to communicate with FMZ Quant Trading platform when running the docker program. The complete execution command is based on Apple Mac System: ./robot -s node.fmz.com/xxxxxxx; xxxxxxx is the unique identification ID of each account on FMZ Quant Trading platform; after executing the command, there will be a prompt to input the password for the corresponding FMZ Quant Trading platform account.
  • -p: you can directly specify the parameter in the run command to input the password, which is not recommended, because the password parameter will be left in the current system record. Suppose the account password corresponding to the address node.fmz.com/xxxxxxx is: abc123456. The complete execution command is based on Apple Mac System: ./robot -s node.fmz.com/xxxxxxx -p abc123456.
  • -n: attach label information to the running docker program. The complete execution command is based on Apple Mac System: ./robot -n macTest -s node.fmz.com/xxxxxxx. There will be a macTest text label in the docker information on the platform docker management page.
  • -l: print the exchange list supported by the current docker. The complete execution command is based on Apple Mac System: ./robot -l, that is, the names of the supported exchanges can be output.

Common Causes for Bot Error & Abnormal Exit

  • Strategy static grammar errors (such errors are obvious, and usually you can see the error mark on the strategy editing page), which can be found and corrected during backtest.
  • Strategy runtime errors, the most common example is the direct use of the function’s return value without making a legal judgment.
  • Too much content that cannot be garbage collected is stored in global variables, resulting in excessive memory usage.
  • When using the asynchronous exchange.Go function, there is no reasonable wait to wait for the end of the coroutine during the operation, resulting in a large number of coroutines.
  • Too many layers of recursive function calls cause the exceeded stack size of the coroutines.
  • Interface business errors and network request errors, etc.; such error messages will display the information, including relevant exchange object names, function names, error-related messages and reasons, and other information. Such errors will not cause abnormal stoppage in actual trading (such errors are usually causes, but not the direct causes. The direct causes are usually the program exceptions caused by the direct use without the interface return value to judge the legality).
  • Platform underlayer errors, the common example is Decrypt: Secret key decrypt failed, which will cause the failure of starting the live trading. The reason for the error is that the modification of the FMZ account password causes all the configured API KEY to be invalid. To solve the problem, the API KEY needs to be reconfigured, and the docker needs to be restarted.
  • When renting a Python strategy, an error is reported due to the version incompatibility between the Python encrypted by the platform and the Python in the strategy runtime: ValueError: bad marshal data (unknown type code). Upgrade or install the Python environment run by the strategy to one of the versions supported by the strategy: Python 2.7, Python 3.5 and Python 3.6.
  • interrupt error; the error is because the user clicks the Stop bot button on the Bot page when the program performs an operation (such as accessing the platform interface), and the bot stops and interrupts the error message printed by the current operation. The error has no effect and is just a log record.

Bots & Strategy Grouping

On the “Bot” page and “Strategy” page of the FMZ Quant Trading platform, you can click Group setting button on the right to manage strategies and real trading in groups. For example, for the group setting of strategies, Template, JavaScript Strategy and Strategy for Backtest can be divided into three groups, respectively.

Sub-Account & Live Bot

Sub-Account After logging in the platform, click “Dashboard” and “Account” to jump to the FMZ account [management page] (https://www.fmz.com/m/account). Click “Sub-Account” to see the sub-account creation page, select the bot that the added sub-account can access in the available permissions control, and set the sub-account’s username and sub-account login password in the user information control. Click the “Add sub-member” button to create a sub-account. The added sub-account will be displayed on the current page and can be “modified”, “locked/unlocked”, and “deleted”.

Sub-accounts have limited permissions; only the authorized bots in the settings of available permissions can be seen in the sub-accounts. The authorized bot has the authority to modify parameters, stop and restart live trading, but it cannot modify the exchange object configured by the bot. The usage scenarios of sub-accounts are usually:

  • A. It is convenient to log in and manage when the quantitative team manages multiple bot strategies.
  • B. Debugging when the strategy is for rent.

Live Trading View In the bot list of the FMZ platform bot page, click the “Public” button to display the bots of the current row publicly. There are currently two ways to view the live bots:

    1. Display the bots on the [Live View] (https://www.fmz.com/live) page published on the FMZ platform, after clicking the “Public” button, and select Public Share.
    1. Create a private link for viewing. After clicking the “Public” button and selecting Internal Share, you can set a validity period to generate a private link to log in the private live view page of the strategy bot.

Strategy Sharing & Renting

On “Strategy” page, after clicking the “Action” button on the right side of the strategy, the menu that pops up has options for sharing and renting.

Strategy Sharing

  • Public Sharing After clicking the “Sharing” button, a dialog box will pop up, and you can choose “Public Sharing”, so the strategy is completely shared in the platform’s “More Strategies”, and any user can copy the strategy.

  • Internal Sharing After clicking the “Sharing” button, a dialog box will pop up, and you can choose “Internal Sharing”. After selecting the share validity period and the number of shares, the copy page address and copy code of the strategy will be generated. It can be distributed to designated FMZ platform users. Users who need this strategy only need to use the copy page address link, to log in the copy page and enter the copy code to obtain the strategy. After obtaining the strategy, it will appear on the “Strategy” page automatically.

Strategy Renting

  • Public Sale After clicking the “Rent” button, a dialog box will pop up, and you can choose “Public Sale”. The strategy can be applied for listing (subject to approval).

  • Internal Sale After clicking the “Rent” button, a dialog box will pop up, and you can choose “Internal Sale”. After selecting the number of days to use, the maximum concurrent number and the number of strategy tokens, the registration page address and strategy token of the strategy will be generated. It can be distributed to specified FMZ users. Users who need this strategy only need to use the registration page address link, to log in to the registration page. Then, enter the strategy token to obtain the right to use the strategy. The strategy will be also displayed on the “Strategy” page, but only with the right to use the backtest and the bot. The information like the source code of the strategy is inaccessible.

Important note: When creating and distributing the strategy token, please make sure to carefully confirm whether it is a “strategy token” or a “copy code”, so as not to share the strategy by mistake.

Sharpe Algorithm in Backtesting System

function returnAnalyze(totalAssets, profits, ts, te, period, yearDays) {
    // force by days
    period = 86400000
    if (profits.length == 0) {
        return null
    }
    var freeProfit = 0.03 // 0.04
    var yearRange = yearDays * 86400000
    var totalReturns = profits[profits.length - 1][1] / totalAssets
    var annualizedReturns = (totalReturns * yearRange) / (te - ts)

    // MaxDrawDown
    var maxDrawdown = 0
    var maxAssets = totalAssets
    var maxAssetsTime = 0
    var maxDrawdownTime = 0
    var maxDrawdownStartTime = 0
    var winningRate = 0
    var winningResult = 0
    for (var i = 0; i < profits.length; i++) {
        if (i == 0) {
            if (profits[i][1] > 0) {
                winningResult++
            }
        } else {
            if (profits[i][1] > profits[i - 1][1]) {
                winningResult++
            }
        }
        if ((profits[i][1] + totalAssets) > maxAssets) {
            maxAssets = profits[i][1] + totalAssets
            maxAssetsTime = profits[i][0]
        }
        if (maxAssets > 0) {
            var drawDown = 1 - (profits[i][1] + totalAssets) / maxAssets
            if (drawDown > maxDrawdown) {
                maxDrawdown = drawDown
                maxDrawdownTime = profits[i][0]
                maxDrawdownStartTime = maxAssetsTime
            }
        }
    }
    if (profits.length > 0) {
        winningRate = winningResult / profits.length
    }
    // trim profits
    var i = 0
    var datas = []
    var sum = 0
    var preProfit = 0
    var perRatio = 0
    var rangeEnd = te
    if ((te - ts) % period > 0) {
        rangeEnd = (parseInt(te / period) + 1) * period
    }
    for (var n = ts; n < rangeEnd; n += period) {
        var dayProfit = 0.0
        var cut = n + period
        while (i < profits.length && profits[i][0] < cut) {
            dayProfit += (profits[i][1] - preProfit)
            preProfit = profits[i][1]
            i++
        }
        perRatio = ((dayProfit / totalAssets) * yearRange) / period
        sum += perRatio
        datas.push(perRatio)
    }

    var sharpeRatio = 0
    var volatility = 0
    if (datas.length > 0) {
        var avg = sum / datas.length;
        var std = 0;
        for (i = 0; i < datas.length; i++) {
            std += Math.pow(datas[i] - avg, 2);
        }
        volatility = Math.sqrt(std / datas.length);
        if (volatility !== 0) {
            sharpeRatio = (annualizedReturns - freeProfit) / volatility
        }
    }

    return {
        totalAssets: totalAssets,
        yearDays: yearDays,
        totalReturns: totalReturns,
        annualizedReturns: annualizedReturns,
        sharpeRatio: sharpeRatio,
        volatility: volatility,
        maxDrawdown: maxDrawdown,
        maxDrawdownTime: maxDrawdownTime,
        maxAssetsTime: maxAssetsTime,
        maxDrawdownStartTime: maxDrawdownStartTime,
        winningRate: winningRate
    }
}

Special Exchange Instructions

  • Futures_Binance It supports the dual position mode of Binance futures; you can use exchange.IO to switch:

    function main() {
    var ret = exchange.IO("api", "POST", "/fapi/v1/positionSide/dual", "dualSidePosition=true")
    // ret : {"code":200,"msg":"success"}
    Log(ret)
}

    def main():
    ret = exchange.IO("api", "POST", "/fapi/v1/positionSide/dual", "dualSidePosition=false")
    Log(ret)

    void main() {
    auto ret = exchange.IO("api", "POST", "/fapi/v1/positionSide/dual", "dualSidePosition=true");
    Log(ret);
}

    It supports switching between crossed position/ isolated position

    function main() {
    exchange.SetContractType("swap")
    exchange.IO("cross", true)    // Switch to crossed position
    exchange.IO("cross", false)   // Switch to isolated position
}

    def main():
    exchange.SetContractType("swap")
    exchange.IO("cross", True)
    exchange.IO("cross", False)

    void main() {
    exchange.SetContractType("swap");
    exchange.IO("cross", true);
    exchange.IO("cross", false);
}

  • Futures_HuobiDM It supports modifying the address of Huobi Futures participating in the signature, which is not switched by default. If you need to disable the function, you can use exchange.IO("signHost", "") to set an empty string. Use exchange.IO("signHost", "https://aaa.xxx.xxx") to switch the base address of Huobi Futures participating in signature verification. Use exchange.IO("base", "https://bbb.xxx.xxx") or exchange.SetBase("https://bbb.xxx.xxx") to switch the base address of the platform interface. When the trading pair is set to XXX_USDT, use the function exchange.SetContractType("swap") to set the contract code to swap perpetual contract, using exchange.IO("cross", true) can switch to USDT-margined perpetual contract in the crossed position mode. Using exchange.IO("cross", false) to switch back to the isolated position mode. The initial default is the isolated position mode.

  • Huobi It supports Huobi spot leverage tokens, such as: LINK*(-3); the code defined by the exchange is: link3susdt, which is written when FMZ sets the trading pair LINK3S_USDT. It is also possible to switch trading pairs in the strategy:

    function main() {
    exchange.SetCurrency("LINK3S_USDT")
    Log(exchange.GetTicker())
}

    def main():
    exchange.SetCurrency("LINK3S_USDT")
    Log(exchange.GetTicker())

    void main() {
    exchange.SetCurrency("LINK3S_USDT");
    Log(exchange.GetTicker());
}

  • OKX OKX interface can switch to the simulation bot testing environment of OKX; using exchange.IO("simulate", true) can switch to the simulated trading environment. If you want to switch to the real trading environment, use exchange.IO("simulate", false) to switch. The initial default is the real trading environment. It supports switching account margin modes; use exchange.IO("cross", true) to switch to crossed position mode, and use exchange.IO("cross", false) to switch to isolated position mode, the initial default is the crossed position mode.

  • Futures_Bibox Use exchange.IO("cross", true) to switch to the crossed position mode, and use exchange.IO("cross", false) to switch to the isolated position mode; the initial default is crossed position mode. The exchange does not support the query of current pending orders and the interface for querying the historical trading records of the market, so the GetOrders and GetTrades functions are not supported.

  • Futures_Bitget Use exchange.IO("cross", true) to switch to crossed position mode, and use exchange.IO("cross", false) to switch to isolated position mode.

  • Futures_AOFEX Use exchange.IO("cross", true) to switch to crossed position mode, and use exchange.IO("cross", false) to switch to isolated position mode.

  • Futures_MEXC Use exchange.IO("cross", true) to switch to crossed position mode, and use ```exchange.IO("cross",

上一页 下一页
More

2019 FMZ - All rights reserved
