使用FMZ轻松入门基于以太坊的web3开发
Author: 发明者量化-小小梦, Created: 2023-03-28 13:32:48, Updated: 2024-11-11 22:28:24":true,“name”:“dst”,“type”:“address”},{“indexed”:false,“name”:“wad”,“type”:“uint256”}],“name”:“Transfer”,“type”:“event”},{“anonymous”:false,“inputs”:[{“indexed”:true,“name”:“dst”,“type”:“address”},{“indexed”:false,“name”:“wad”,“type”:“uint256”}],“name”:“Deposit”,“type”:“event”},{“anonymous”:false,“inputs”:[{“indexed”:true,“name”:“src”,“type”:“address”},{“indexed”:false,“name”:“wad”,“type”:“uint256”}],“name”:“Withdrawal”,“type”:“event”}]`
// WETH合约地址
var wethAddress = "0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2"
// 注册WETH合约的ABI
exchange.IO("abi", wethAddress, abiWETH)
// 当前配置的交易所对象的钱包地址
var walletAddress = exchange.IO("address")
// 编码WETH合约的deposit方法调用
var calldataForDeposit = exchange.IO("encode", wethAddress, "deposit")
Log("calldataForDeposit:", "0x" + calldataForDeposit)
// 获取nonce
var nonce = exchange.IO("api", "eth", "eth_getTransactionCount", walletAddress, "pending")
// 获取gasPrice
var gasPrice = exchange.IO("api", "eth", "eth_gasPrice")
// 调用deposit方法把ETH换为WETH，需要转账ETH，这里把0.01ETH转换为以wei为单位的十六进制数值
var innerAmount = BigInt(Number(toInnerAmount(0.005, 18))).toString(16)
// The transaction call object:
var obj = {
"from" : walletAddress,
"to" : wethAddress,
"gasPrice" : gasPrice,
"value" : "0x" + innerAmount,
"data" : "0x" + calldataForDeposit,
}
// 计算gasLimit
var gasLimit = exchange.IO("api", "eth", "eth_estimateGas", obj)
// 构造交易
var transaction = {
"to": wethAddress,
"value": toAmount("0x" + innerAmount, 0), // 转换为10进制
"data": "0x" + calldataForDeposit,
"gasLimit": toAmount(gasLimit, 0), // 转换为10进制
"gasPrice": toAmount(gasPrice, 0), // 转换为10进制
"nonce": toAmount(nonce, 0), // 转换为10进制
"chainId": 1, // 以太坊主网Id
}
Log("transaction:", transaction)
// 签名，your key 替换为你的私钥
var signedTx = Encode("signTx", "string", "hex", JSON.stringify(transaction), "hex", "0x" + "your key")
Log("signedTx:", "0x" + signedTx)
// 调用eth_sendRawTransaction发送交易
var ret = exchange.IO("api", "eth", "eth_sendRawTransaction", "0x" + signedTx)
return ret
}
调试工具中运行：
```run
2023-06-15 09:58:50 信息 signedTx: 0xf86f4f8504202067888...
2023-06-15 09:58:50 信息 transaction: {"to":"0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2","value":5000000000000000,"data":"0xd0e30db0","gasLimit":27938,"gasPrice":17718863752,"nonce":79,"chainId":1}
2023-06-15 09:58:50 信息 calldataForDeposit: 0xd0e30db0
执行var ret = exchange.IO("api", "eth", "eth_sendRawTransaction", "0x" + signedTx)函数，返回的Transaction Hash为：0x2ff585504b0fe59b0122f696e8808abfe2f3ce263448066533f3bb8a4f55e8e6。这个eth_sendRawTransaction调用执行了其中的calldata，调用WETH合约的deposit方法将发送的0.005个ETH换为WETH。
监听mempool
在以太坊上用户的交易被矿工打包进以太坊区块链之前，所有交易会汇集在Mempool(交易内存池)中，“矿工”也是在这里寻找费用高的交易优先打包，以实现挖矿利益最大化。所以通常交易的gasPrice设置越高越容易被打包。
一些交易脚本也会对Mempool进行嗅探，希望找到一些有利可图的交易。例如一笔交易如果设置过高的兑换滑点，这笔交易就可能被这些交易脚本实施“三明治攻击”。那么这些脚本是如何监听Mempool中的pending（未决，待打包）交易呢？
使用REST协议监听
使用我们之前学习过的RPC方法：eth_getBlockByNumber，只不过我们这次不传具体的blockNumber，我们使用"pending"标签。
function main() {
var data = exchange.IO("api", "eth", "eth_getBlockByNumber", "pending", true)
if (Array.isArray(data.transactions)) {
for (var i = 0; i < data.transactions.length; i++) {
Log(data.transactions[i])
}
}
}
调试工具中运行：
2023-06-18 19:23:05 信息 {"blockNumber":"0x10b2027","type":"0x2","accessList":[],"blockHash":"0xf833ed36435c53d63bd7109bb1e85383075534410c14573881bf26d912f46a89","from":"0xd50521974d62f1fa34b8e81cb742ccf6147d05ff","gasPrice":"0x32ea2db37","hash":"0xf8f10f8f473c340b021298feb48d0affe529e8737a309c4cc1902e8989ef0914","input":"0xa22cb4650000000000000000000000001e0049783f008a0085193e00003d00cd54003c710000000000000000000000000000000000000000000000000000000000000001","v":"0x0","value":"0x0","maxFeePerGas":"0x48a413364","maxPriorityFeePerGas":"0x5f5e100","nonce":"0x8","r":"0x8c1cc36f43b02c9e9e454153588cc9d38757f1da69ec49d3cfdda74ab69e06a8","s":"0x2f3dd3e5ddf9e5d42c128a8e900026aca7568fa83c68cf332e1328066ee8d03a","transactionIndex":"0x3a","chainId":"0x1","gas":"0x1142d","to":"0x8c3c0274c33f263f0a55d129cfc8eaa3667a9e8b"}
2023-06-18 19:23:05 信息 {"input":"0x646174613a2c7b2270223a226572632d3230222c226f70223a226d696e74222c227469636b223a2265746873222c226964223a223139323732222c22616d74223a2231303030227d","nonce":"0x1d","blockHash":"0xf833ed36435c53d63bd7109bb1e85383075534410c14573881bf26d912f46a89","from":"0xe7fa86855af674837cea1b58f88b5352543ca27b","gas":"0x81cc","gasPrice":"0x32ea2db37","to":"0xe7fa86855af674837cea1b58f88b5352543ca27b","chainId":"0x1","transactionIndex":"0x39","type":"0x2","value":"0x0","accessList":[],"blockNumber":"0x10b2027","hash":"0x55702f5d14736fc9d0c58fdac2d2052a602db171c46b5e1fa9ff6af5c277f9a2","maxFeePerGas":"0x48a413364","maxPriorityFeePerGas":"0x5f5e100","r":"0x5a703d389d23b51adf8ef0f55db8876e7392636797b68a4be6afe73e76d7e1f2","s":"0x4b4bb11257c4434a0acc2672357f8793476e4bfdf98bc30d2389ce335e7de64e","v":"0x1"}
2023-06-18 19:23:05 信息 {"gas":"0x186a0","nonce":"0x46533","r":"0xfeea052a4ac2283ca058a657a806ba0916d8e7d52d2a577f150c40eb1dfbec65","s":"0x5bf0089a3c060ba787b67a205b44e1065a0d11d132b41737ab9adf0f55066811","transactionIndex":"0x38","value":"0x78f0975742c400","blockHash":"0xf833ed36435c53d63bd7109bb1e85383075534410c14573881bf26d912f46a89","chainId":"0x1","hash":"0x56bdf1b38e23db66e8d1c4014d1e9f690a9217d8a0232489210325fc69e25cf9","v":"0x25","input":"0x","type":"0x0","blockNumber":"0x10b2027","gasPrice":"0x4a817c800","from":"0x97b9d2102a9a65a26e1ee82d59e42d1b73b68689","to":"0xcb513e99c020e9d15a6eafef873fef5d9f078221"}
...
摘出其中一条数据：
{
"blockNumber": "0x10b2027",
"type": "0x2",
"accessList": [],
"blockHash": "0xf833ed36435c53d63bd7109bb1e85383075534410c14573881bf26d912f46a89",
"from": "0xd50521974d62f1fa34b8e81cb742ccf6147d05ff",
"gasPrice": "0x32ea2db37",
"hash": "0xf8f10f8f473c340b021298feb48d0affe529e8737a309c4cc1902e8989ef0914",
"input": "0xa22cb4650000000000000000000000001e0049783f008a0085193e00003d00cd54003c710000000000000000000000000000000000000000000000000000000000000001",
"v": "0x0",
"value": "0x0",
"maxFeePerGas": "0x48a413364",
"maxPriorityFeePerGas": "0x5f5e100",
"nonce": "0x8",
"r": "0x8c1cc36f43b02c9e9e454153588cc9d38757f1da69ec49d3cfdda74ab69e06a8",
"s": "0x2f3dd3e5ddf9e5d42c128a8e900026aca7568fa83c68cf332e1328066ee8d03a",
"transactionIndex": "0x3a",
"chainId": "0x1",
"gas": "0x1142d",
"to": "0x8c3c0274c33f263f0a55d129cfc8eaa3667a9e8b"
}
使用WebSocket协议监听
在发明者量化交易平台，我们使用Dial函数来创建WebSocket连接，可以查看FMZ API文档了解Dial函数。
本章节测试代码在以太坊主网环境运行，由于使用WebSocket协议通信，使用发明者量化实盘测试比较方便。Websocket协议订阅消息为：
{"jsonrpc": "2.0", "id": 1, "method": "eth_subscribe", "params": ["newPendingTransactions"]}
除了newPendingTransactions，还可以订阅newHeads、logs。
收到WebSocket连接推送的数据：
{
"jsonrpc": "2.0",
"method": "eth_subscription",
"params": {
"subscription": "0x2c5c087b4aa188e008f4747828ef4e61",
"result": "0x69c4251cecb814e17cfe7a5ee41742a616f9a4d1bbf245c49b186b1006fd14d3"
}
}
然后根据其中的："result": "0x69c4251cecb814e17cfe7a5ee41742a616f9a4d1bbf245c49b186b1006fd14d3"，进一步查询transaction。对于一个具体的transaction我们使用以太坊RPC方法eth_getTransactionByHash来查询。
var ws = null
function main () {
// {"jsonrpc": "2.0", "id": 1, "method": "eth_subscribe", "params": ["xxxxx"]} , "xxxxx" 是订阅的具体消息
var payload = {"jsonrpc": "2.0", "id": 1, "method": "eth_subscribe", "params": ["newPendingTransactions"]}
// wss://mainnet.infura.io/ws/v3/xxxxx , "xxxxx" 是你的infura key
var infuraKey = "your key"
ws = Dial("wss://mainnet.infura.io/ws/v3/" + infuraKey + "|reconnect=true&payload=" + JSON.stringify(payload))
if (!ws) {
throw "websocket链接infura失败！"
}
// eth_getTransactionByHash 调用计数
var getTransactionCounter = 0
var beginTS = new Date().getTime()
// 循环获取消息
while (true) {
// 接收推送的消息
var data = ws.read()
if (data) {
var ts = new Date().getTime()
if (ts - beginTS >= 1000) {
getTransactionCounter = 0
beginTS = ts
}
// 根据txHash查询交易详情
if (ts - beginTS < 1000 && getTransactionCounter >= 100) {
Sleep(1000)
getTransactionCounter = 0
beginTS = ts
}
var obj = JSON.parse(data)
if (obj["params"] && obj["params"]["result"]) {
var transcationInfo = exchange.IO("api", "eth", "eth_getTransactionByHash", obj["params"]["result"])
Log(obj["params"]["result"], "transcationInfo:", transcationInfo)
}
getTransactionCounter++
}
LogStatus(_D())
}
}
function onexit() {
Log("断开WS连接")
ws.close()
}
创建实盘运行以上代码，可以收到WebSocket连接推送的数据，数据在不停的推送，我们摘出其中一条transaction：
{
"maxPriorityFeePerGas": "0x5f5e100",
"nonce": "0x1a9",
"accessList": [],
"blockNumber": "0x10b1c9f",
"from": "0x5888700be02f52c8adf85890886ef84a6b8a7829",
"blockHash": "0x92c3d77ea218cdc0967ab74b6005bb393b92355047f206c7e2d59d41828e7fa9",
"chainId": "0x1",
"gasPrice": "0x34fdbf43d",
"s": "0x7d86ae29a786a61b9e74a7a9e2cc4b39b7913aa3d4c3816ccb07528fed82048a",
"to": "0xfc2068c3d47b575a60f6a4a7bf60dea0ac368e01",
"type": "0x2",
"v": "0x1",
"value": "0x0",
"gas": "0x1aad3",
"hash": "0x2c77c0704aefbb26db460cbb71efdb488df968ad53d2c2b3f1e1172056b40b22",
"input": "0x42842e0e0000000000000000000000005888700be02f52c8adf85890886ef84a6b8a7829000000000000000000000000d2d07e4d1bb0f40ac3e4aa7cc3ad05d348bfd2c3000000000000000000000000000000000000000000000000000000000000180b",
"maxFeePerGas": "0x4712d1273",
"r": "0x8ec58f95f6d9729a6eee075e6976658b6c5346cbc90eb68ac361a40af073b10e",
"transactionIndex": "0xc1"
}
节选（省略一部分）的日志数据：
2023-06-18 16:20:07 信息 断开WS连接
2023-06-18 16:20:07 信息 0xba07ca903f9eafbfa7d494bb26197713034b9ca2dd3c19bc0898af3f35b59343 transcationInfo: {"accessList":[],"from":"0xe2977d60182da068dfd78693f96362ee7a2e9644","nonce":"0xf","value":"0x0","blockHash":"0x92c3d77ea218cdc0967ab74b6005bb393b92355047f206c7e2d59d41828e7fa9","blockNumber":"0x10b1c9f","chainId":"0x1","hash":"0xba07ca903f9eafbfa7d494bb26197713034b9ca2dd3c19bc0898af3f35b59343","maxFeePerGas":"0x530c30b70","r":"0xf28bfdf372a5401a2e00675c6ebe8d5e73f2c955db44b1aa56240b9197d6cbc7","type":"0x2","v":"0x0","gas":"0x21079","gasPrice":"0x367b3783d","input":"0x657bb1130000000000000000000000000000000000000000000000000000000000000080000000000000000000000000000000000000000000000000000000000000012000000000000000000000000000000000000000000000000000000000000001e000000000000000000000000000000000000000000000000000000000000002200000000000000000000000000000000000000000000000000000000000000001000000000000000000000000000000000000000000000000000000000000000600000000000000000000000000000000000000000000000000000000000000010000000000000000000000000000000000000000000000000000000000001e0300000000000000000000000033c6eec1723b12c46732f7ab41398de45641fa42000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000000000000200000000000000000000000000000000000000000000000000000000000000041976bd7d021a5b94cbba72b291093b50a0ecf21d1c6cd8193fbfcd685c4723ce068feb249bdcace58c28eb3b6cc647e8c839b0826c84f8dfe4c31d57d1ac1f0111b00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000100000000000000000000000000000000000000000000000000000000648ebef50000000000000000000000000000000000000000000000000000000000000000","maxPriorityFeePerGas":"0x1dcd6500","s":"0x71d51246bb60e792f963a3c75c46fd8f557921ce6face7224c944e1768a76ca","to":"0x0b51eb9d0e54c562fedc07ceba453f05b70c4b79","transactionIndex":"0x40"}
2023-06-18 16:20:07 信息 0x2c77c0704aefbb26db460cbb71efdb488df968ad53d2c2b3f1e1172056b40b22 transcationInfo: {"maxPriorityFeePerGas":"0x5f5e100","nonce":"0x1a9","accessList":[],"blockNumber":"0x10b1c9f","from":"0x5888700be02f52c8adf85890886ef84a6b8a7829","blockHash":"0x92c3d77ea218cdc0967ab74b6005bb393b92355047f206c7e2d59d41828e7fa9","chainId":"0x1","gasPrice":"0x34fdbf43d","s":"0x7d86ae29a786a61b9e74a7a9e2cc4b39b7913aa3d4c3816ccb07528fed82048a","to":"0xfc2068c3d47b575a60f6a4a7bf60dea0ac368e01","type":"0x2","v":"0x1","value":"0x0","gas":"0x1aad3","hash":"0x2c77c0704aefbb26db460cbb71efdb488df968ad53d2c2b3f1e1172056b40b22","input":"0x42842e0e0000000000000000000000005888700be02f52c8adf85890886ef84a6b8a7829000000000000000000000000d2d07e4d1bb0f40ac3e4aa7cc3ad05d348bfd2c3000000000000000000000000000000000000000000000000000000000000180b","maxFeePerGas":"0x4712d1273","r":"0x8ec58f95f6d9729a6eee075e6976658b6c5346cbc90eb68ac361a40af073b10e","transactionIndex":"0xc1"}
2023-06-18 16:20:07 信息 0xbc42d5db10e5cb2e888c76005c522cb2474a0c0a7325feb867b618f69ff26f2a transcationInfo: {"accessList":[],"blockNumber":"0x10b1c9f","gas":"0x1cc12b","hash":"0xbc42d5db10e5cb2e888c76005c522cb2474a0c0a7325feb867b618f69ff26f2a","maxFeePerGas":"0x6ab262e5c","value":"0x0","v":"0x1","chainId":"0x1","from":"0xc1b634853cb333d3ad8663715b08f41a3aec47cc","input":"0x8f111f3c000000000000000000000000000000000000000000000000000000000003b83700000000000000000000000000000000000000000000000000000000000000c000000000000000000000000000000000000000000000000000000000000e0fa2000000000000000000000000e64a54e2533fd126c2e452c5fab544d80e2e4eb50000000000000000000000000000000000000000000000000000000004c6ff1c0000000000000000000000000000000000000000000000000000000004c70029000000000000000000000000000000000000000000000000000000000001822d005b1979341221e80ed20b20d832de88a8a4b535fe9990a90c165f3c95ad085ab9445c0a998c70edff76f1c2de3f4263d7e4fe3c3fb73fe7dcfbdede92371842fb883267f5408c8aaf08ba2f6c22463f19da98183d2302735615460d7380d6f9ff5e764e75bcaca9a93946cf644cd4d4448f314c4cf60cd0353f085aa0562d70e16a510b8bc4c2a09b5e7fafcd43f07dc1b5dd1782962af8f6fff7a6965bfc127e11501a72c64913d58e624333f9ec51687c7cb1bb4a9850541f1e03b2790ed4ee508052910dfe22542d900548d5243ca238811427491d49e98cf269ccab5b1724f0f9698120e406c00910c4090c0e84e0400e2706822d2a001a3964a0ca8101700a547342c2c1fff8934a988416f020a0c98f0909c7f529875f8443914e10b58145c79d38914d1fafbc9ee57ebcb377e4ac1cd252bdebe3c59e8e917fea7dbc7bf66dfc1846482a858645b95555b3ecc9ab4f9e2b0e3e78d68379b009e606a1cefe675670a5eabd5f5a2efa5d77a1084288480c98d01c70a3d8c6b854496e2a966dc9051b13b872b7c6c2c5d82676fd8e82c680514333db21db2006d23f42074021de7e61c54d88b01824d40f03d1505eb6ec6d0cb7ccd38deb821517a5e63d0e89f6bf0385f109c81ea36dd00e7a903a100290f5b47a940ed146ae9338ff8bc17a2b5bc457614d0831e743e485c0de84636b034400bf6bd192ff723045cc170e109aabf273dc9de19c9987038515b6613249f471f9ddeb31331cc1643902212d20241c417532ad7e4a9ac742b4b5f68e1019795cf9386dcf36037502c13ff51f50a2202b2c1cac1c0b38a21ec798deff778c9a6b679d16d0521d2df89c439f4f8f9425ed378f4194d03d00
2023-06-18 16:20:06 信息 0xff0945c3d682a37e18ee433d56c8bedbb93d9ac368af968ed8d53b655575e8e5 transcationInfo: {"gas":"0x5208","s":"0x63572e1fa060841b939cea0849154e55781fe0efcbdfe5ce6979b44ce0980e4a","transactionIndex":"0xa7","value":"0x113e9d515e400","blockHash":"0x92c3d77ea218cdc0967ab74b6005bb393b92355047f206c7e2d59d41828e7fa9","hash":"0xff0945c3d682a37e18ee433d56c8bedbb93d9ac368af968ed8d53b655575e8e5","nonce":"0x2","r":"0x698fe26331ad39ba89c4d30985b707792ea4ab09b25205727f8fac2a6120b54a","gasPrice":"0x35458af00","from":"0x228d93af92d03184c07aa9e39b3d2d61b666686d","input":"0x","to":"0x0246177b98a5e42835cdcfaac1c274d3e6c39486","v":"0x26","blockNumber":"0x10b1c9f","type":"0x0","chainId":"0x1"}
...
解码交易详情
上一讲课程我们编写了一个监控以太坊上未决交易的监控程序，通过WebSocket协议获取推送的交易哈希，然后根据交易哈希查询具体交易详情。
接下来我们要对交易详情数据中的input字段数据做进一步解析。input字段数据看似是杂乱无章的十六进制数据，实际上编码了这笔交易的内容：包括调用的函数，以及输入的参数等。
经过反复、大量测试发现WebSocket连接推送过来的数据时效性、数量与当前使用的RPC节点有很大关系，两个不同的RPC节点服务（例如infura、ALCHEMY）同时创建WebSocket连接，收到的推送数据也不是完全一样的，由于当前这个场景会产生大量请求，所以还是需要使用比较稳定、速度较快的RPC服务。WebSocket连接还会推送过来很多已经Pending很长时间的交易哈希，当使用eth_getTransactionByHash去查询时往往得到一个空值（在FMZ上测试、node.js测试）。
我们这次使用alchemy的RPC节点：wss://eth-mainnet.g.alchemy.com/v2/oKmOQKbneVkxgHZfibs-iFhIlIAl6HDN。这个节点即支持WebSocket协议，也支持REST协议。

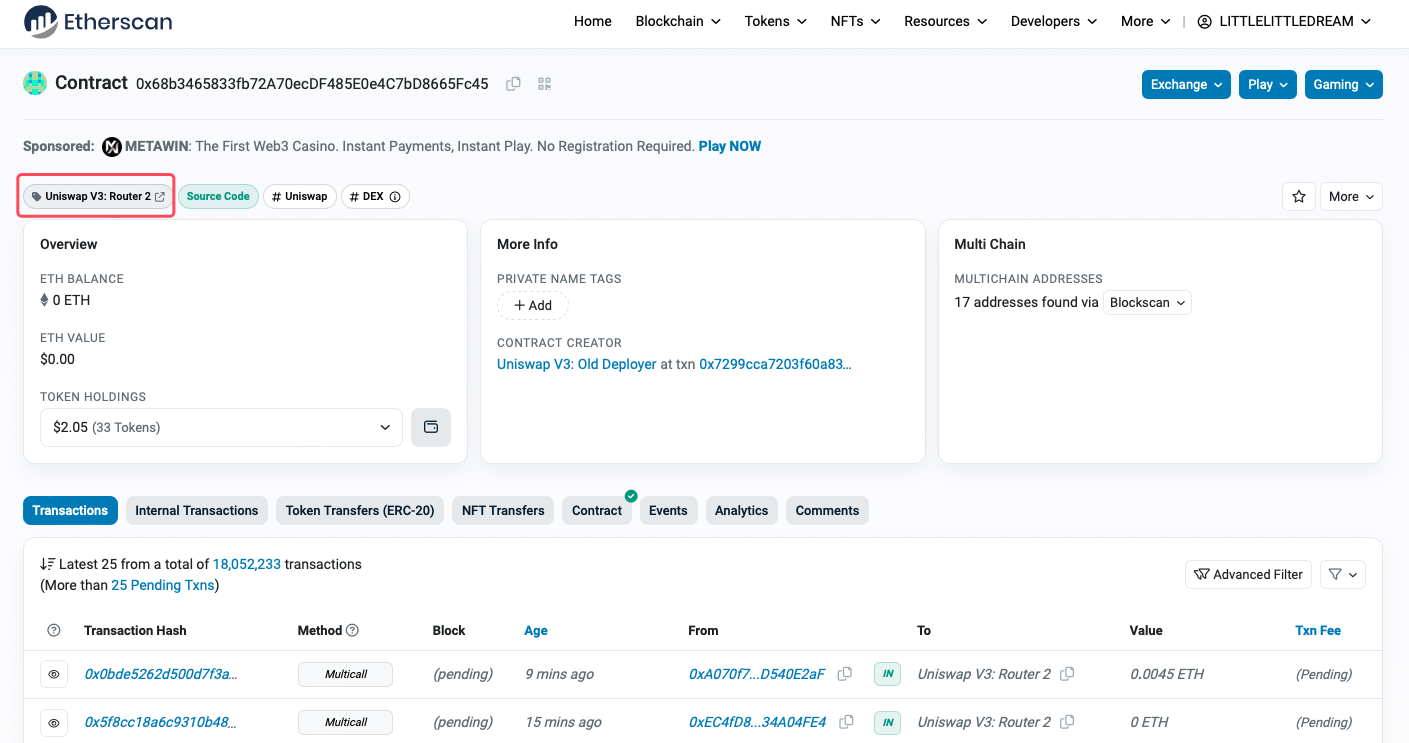

我们监控Uniswap去中心化交易所的路由智能合约的multicall(uint256,bytes[])方法，所以首先我们需要计算这个方法的函数签名哈希。
// 取完整哈希值的前8个字符
// multicall: 0x5ae401dc
var sigHash = "0x" + Encode("keccak256", "string", "hex", "multicall(uint256,bytes[])").slice(0, 8)
基于上节课程的例子，我们做了一些修改。在接收WebSocket连接推送的消息时，使用var data = ws.read(-2)方式接收最新数据，read()函数参数设置为-2表示立即返回最新数据。我们只关心包含multicall调用的Transaction ，使用if (tx && tx.input.indexOf(sigHash) !== -1)判断过滤。
需要设计2个自定义函数：
calcAllFuncSigHash(): 基于ABI计算所有方法的签名哈希。decodeCall(): 解码函数。
接下来检测到multicall调用时，就可以开始解码操作了，第一次解码出multicall方法的参数：deadline和data。deadline就是一个时间戳比较好理解，data又是一个编码过的calldata，所以还需要继续使用decodeCall()函数解码。
完整的实现例子：
var ws = null
var arrLog = []
const ABI_Route = '[{"inputs":[{"internalType":"address","name":"_factoryV2","type":"address"},{"internalType":"address","name":"factoryV3","type":"address"},{"internalType":"address","name":"_positionManager","type":"address"},{"internalType":"address","name":"_WETH9","type":"address"}],"stateMutability":"nonpayable","type":"constructor"},{"inputs":[],"name":"WETH9","outputs":[{"internalType":"address","name":"","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"}],"name":"approveMax","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"}],"name":"approveMaxMinusOne","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"}],"name":"approveZeroThenMax","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"}],"name":"approveZeroThenMaxMinusOne","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"bytes","name":"data","type":"bytes"}],"name":"callPositionManager","outputs":[{"internalType":"bytes","name":"result","type":"bytes"}],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"bytes[]","name":"paths","type":"bytes[]"},{"internalType":"uint128[]","name":"amounts","type":"uint128[]"},{"internalType":"uint24","name":"maximumTickDivergence","type":"uint24"},{"internalType":"uint32","name":"secondsAgo","type":"uint32"}],"name":"checkOracleSlippage","outputs":[],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"bytes","name":"path","type":"bytes"},{"internalType":"uint24","name":"maximumTickDivergence","type":"uint24"},{"internalType":"uint32","name":"secondsAgo","type":"uint32"}],"name":"checkOracleSlippage","outputs":[],"stateMutability":"view","type":"function"},{"inputs":[{"components":[{"internalType":"bytes","name":"path","type":"bytes"},{"internalType":"address","name":"recipient","type":"address"},{"internalType":"uint256","name":"amountIn","type":"uint256"},{"internalType":"uint256","name":"amountOutMinimum","type":"uint256"}],"internalType":"struct IV3SwapRouter.ExactInputParams","name":"params","type":"tuple"}],"name":"exactInput","outputs":[{"internalType":"uint256","name":"amountOut","type":"uint256"}],"stateMutability":"payable","type":"function"},{"inputs":[{"components":[{"internalType":"address","name":"tokenIn","type":"address"},{"internalType":"address","name":"tokenOut","type":"address"},{"internalType":"uint24","name":"fee","type":"uint24"},{"internalType":"address","name":"recipient","type":"address"},{"internalType":"uint256","name":"amountIn","type":"uint256"},{"internalType":"uint256","name":"amountOutMinimum","type":"uint256"},{"internalType":"uint160","name":"sqrtPriceLimitX96","type":"uint160"}],"internalType":"struct IV3SwapRouter.ExactInputSingleParams","name":"params","type":"tuple"}],"name":"exactInputSingle","outputs":[{"internalType":"uint256","name":"amountOut","type":"uint256"}],"stateMutability":"payable","type":"function"},{"inputs":[{"components":[{"internalType":"bytes","name":"path","type":"bytes"},{"internalType":"address","name":"recipient","type":"address"},{"internalType":"uint256","name":"amountOut","type":"uint256"},{"internalType":"uint256","name":"amountInMaximum","type":"uint256"}],"internalType":"struct IV3SwapRouter.ExactOutputParams","name":"params","type":"tuple"}],"name":"exactOutput","outputs":[{"internalType":"uint256","name":"amountIn","type":"uint256"}],"stateMutability":"payable","type":"function"},{"inputs":[{"components":[{"internalType":"address","name":"tokenIn","type":"address"},{"internalType":"address","name":"tokenOut","type":"address"},{"internalType":"uint24","name":"fee","type":"uint24"},{"internalType":"address","name":"recipient","type":"address"},{"internalType":"uint256","name":"amountOut","type":"uint256"},{"internalType":"uint256","name":"amountInMaximum","type":"uint256"},{"internalType":"uint160","name":"sqrtPriceLimitX96","type":"uint160"}],"internalType":"struct IV3SwapRouter.ExactOutputSingleParams","name":"params","type":"tuple"}],"name":"exactOutputSingle","outputs":[{"internalType":"uint256","name":"amountIn","type":"uint256"}],"stateMutability":"payable","type":"function"},{"inputs":[],"name":"factory","outputs":[{"internalType":"address","name":"","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[],"name":"factoryV2","outputs":[{"internalType":"address","name":"","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"amount","type":"uint256"}],"name":"getApprovalType","outputs":[{"internalType":"enum IApproveAndCall.ApprovalType","name":"","type":"uint8"}],"stateMutability":"nonpayable","type":"function"},{"inputs":[{"components":[{"internalType":"address","name":"token0","type":"address"},{"internalType":"address","name":"token1","type":"address"},{"internalType":"uint256","name":"tokenId","type":"uint256"},{"internalType":"uint256","name":"amount0Min","type":"uint256"},{"internalType":"uint256","name":"amount1Min","type":"uint256"}],"internalType":"struct IApproveAndCall.IncreaseLiquidityParams","name":"params","type":"tuple"}],"name":"increaseLiquidity","outputs":[{"internalType":"bytes","name":"result","type":"bytes"}],"stateMutability":"payable","type":"function"},{"inputs":[{"components":[{"internalType":"address","name":"token0","type":"address"},{"internalType":"address","name":"token1","type":"address"},{"internalType":"uint24","name":"fee","type":"uint24"},{"internalType":"int24","name":"tickLower","type":"int24"},{"internalType":"int24","name":"tickUpper","type":"int24"},{"internalType":"uint256","name":"amount0Min","type":"uint256"},{"internalType":"uint256","name":"amount1Min","type":"uint256"},{"internalType":"address","name":"recipient","type":"address"}],"internalType":"struct IApproveAndCall.MintParams","name":"params","type":"tuple"}],"name":"mint","outputs":[{"internalType":"bytes","name":"result","type":"bytes"}],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"bytes32","name":"previousBlockhash","type":"bytes32"},{"internalType":"bytes[]","name":"data","type":"bytes[]"}],"name":"multicall","outputs":[{"internalType":"bytes[]","name":"","type":"bytes[]"}],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"uint256","name":"deadline","type":"uint256"},{"internalType":"bytes[]","name":"data","type":"bytes[]"}],"name":"multicall","outputs":[{"internalType":"bytes[]","name":"","type":"bytes[]"}],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"bytes[]","name":"data","type":"bytes[]"}],"name":"multicall","outputs":[{"internalType":"bytes[]","name":"results","type":"bytes[]"}],"stateMutability":"payable","type":"function"},{"inputs":[],"name":"positionManager","outputs":[{"internalType":"address","name":"","type":"address"}],"stateMutability":"view","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"value","type":"uint256"}],"name":"pull","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[],"name":"refundETH","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"value","type":"uint256"},{"internalType":"uint256","name":"deadline","type":"uint256"},{"internalType":"uint8","name":"v","type":"uint8"},{"internalType":"bytes32","name":"r","type":"bytes32"},{"internalType":"bytes32","name":"s","type":"bytes32"}],"name":"selfPermit","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"nonce","type":"uint256"},{"internalType":"uint256","name":"expiry","type":"uint256"},{"internalType":"uint8","name":"v","type":"uint8"},{"internalType":"bytes32","name":"r","type":"bytes32"},{"internalType":"bytes32","name":"s","type":"bytes32"}],"name":"selfPermitAllowed","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"nonce","type":"uint256"},{"internalType":"uint256","name":"expiry","type":"uint256"},{"internalType":"uint8","name":"v","type":"uint8"},{"internalType":"bytes32","name":"r","type":"bytes32"},{"internalType":"bytes32","name":"s","type":"bytes32"}],"name":"selfPermitAllowedIfNecessary","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"value","type":"uint256"},{"internalType":"uint256","name":"deadline","type":"uint256"},{"internalType":"uint8","name":"v","type":"uint8"},{"internalType":"bytes32","name":"r","type":"bytes32"},{"internalType":"bytes32","name":"s","type":"bytes32"}],"name":"selfPermitIfNecessary","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"uint256","name":"amountIn","type":"uint256"},{"internalType":"uint256","name":"amountOutMin","type":"uint256"},{"internalType":"address[]","name":"path","type":"address[]"},{"internalType":"address","name":"to","type":"address"}],"name":"swapExactTokensForTokens","outputs":[{"internalType":"uint256","name":"amountOut","type":"uint256"}],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"uint256","name":"amountOut","type":"uint256"},{"internalType":"uint256","name":"amountInMax","type":"uint256"},{"internalType":"address[]","name":"path","type":"address[]"},{"internalType":"address","name":"to","type":"address"}],"name":"swapTokensForExactTokens","outputs":[{"internalType":"uint256","name":"amountIn","type":"uint256"}],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"amountMinimum","type":"uint256"},{"internalType":"address","name":"recipient","type":"address"}],"name":"sweepToken","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"amountMinimum","type":"uint256"}],"name":"sweepToken","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"amountMinimum","type":"uint256"},{"internalType":"uint256","name":"feeBips","type":"uint256"},{"internalType":"address","name":"feeRecipient","type":"address"}],"name":"sweepTokenWithFee","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"address","name":"token","type":"address"},{"internalType":"uint256","name":"amountMinimum","type":"uint256"},{"internalType":"address","name":"recipient","type":"address"},{"internalType":"uint256","name":"feeBips","type":"uint256"},{"internalType":"address","name":"feeRecipient","type":"address"}],"name":"sweepTokenWithFee","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"int256","name":"amount0Delta","type":"int256"},{"internalType":"int256","name":"amount1Delta","type":"int256"},{"internalType":"bytes","name":"_data","type":"bytes"}],"name":"uniswapV3SwapCallback","outputs":[],"stateMutability":"nonpayable","type":"function"},{"inputs":[{"internalType":"uint256","name":"amountMinimum","type":"uint256"},{"internalType":"address","name":"recipient","type":"address"}],"name":"unwrapWETH9","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"uint256","name":"amountMinimum","type":"uint256"}],"name":"unwrapWETH9","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"uint256","name":"amountMinimum","type":"uint256"},{"internalType":"address","name":"recipient","type":"address"},{"internalType":"uint256","name":"feeBips","type":"uint256"},{"internalType":"address","name":"feeRecipient","type":"address"}],"name":"unwrapWETH9WithFee","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"uint256","name":"amountMinimum","type":"uint256"},{"internalType":"uint256","name":"feeBips","type":"uint256"},{"internalType":"address","name":"feeRecipient","type":"address"}],"name":"unwrapWETH9WithFee","outputs":[],"stateMutability":"payable","type":"function"},{"inputs":[{"internalType":"uint256","name":"value","type":"uint256"}],"name":"wrapETH","outputs":[],"stateMutability":"payable","type":"function"},{"stateMutability":"payable","type":"receive"}]'
function calcAllFuncSigHash(jsonABI) {
var mapSigHash = {}
for (var i in jsonABI) {
var ele = jsonABI[i]
if (typeof(ele["name"]) != "undefined") {
if (ele["inputs"]) {
var funcName = ele["name"]
if (ele["inputs"].length == 0) {
var methodId = "0x" + Encode("keccak256", "string", "hex", funcName + "()").slice(0, 8)
mapSigHash[methodId] = {"argsTypeList": [], "argsNameList": [], "funcName": funcName}
} else {
var arr = []
var arrName = []
var argPrototype = []
for (var j in ele["inputs"]) {
var inputType = ele["inputs"][j]["type"]
if (inputType == "tuple") {
var components = ele["inputs"][j]["components"]
var tupleType = []
var protoType = []
for (var componentsIdx = 0; componentsIdx < components.length; componentsIdx++) {
tupleType.push(components[componentsIdx]["type"])
protoType.push(components[componentsIdx]["name"] + " " + components[componentsIdx]["type"])
}
arr.push("(" + tupleType.join() + ")")
arrName.push(ele["inputs"][j]["name"])
// 原型
argPrototype.push("tuple" + "(" + protoType.join() + ")")
} else {
arr.push(inputType)
arrName.push(ele["inputs"][j]["name"])
// 原型
argPrototype.push(inputType)
}
}
var functionSignature = funcName + "(" + arr.join() + ")"
var methodId = "0x" + Encode("keccak256", "string", "hex", functionSignature).slice(0, 8)
mapSigHash[methodId] = {"argsTypeList": arr, "argsNameList": arrName, "funcName": funcName, "argPrototype": argPrototype}
}
}
}
}
return mapSigHash
}
function decodeCall(input, abi) {
var mapSigHash = calcAllFuncSigHash(JSON.parse(abi))
var methodId = input.slice(0, 10)
var data = input.slice(10)
var decodedArgs = {}
var infoMethod = mapSigHash[methodId]
if (typeof(infoMethod) == "undefined") {
return [methodId, mapSigHash]
}
var arr = []
for (var i = 0; i < infoMethod["argsTypeList"].length; i++) {
if (infoMethod["argsTypeList"][i].startsWith("(")) {
arr.push(infoMethod["argPrototype"][i])
} else {
arr.push(infoMethod["argsTypeList"][i])
}
}
if (arr.length == 0) {
return {"funcName": infoMethod["funcName"], "args": decodedArgs}
}
var args = exchange.IO("decode", arr.join(), data)
if (!Array.isArray(args)) {
args = [args]
}
if (args.length != infoMethod["argsNameList"].length) {
Log("args:", args)
Log("infoMethod:", infoMethod)
throw "解码后的args与argsNameList不等"
}
for (var i = 0; i < infoMethod["argsNameList"].length; i++) {
var key = infoMethod["argsNameList"][i]
var value = args[i]
decodedArgs[key] = value
}
return {"funcName": infoMethod["funcName"], "args": decodedArgs}
}
function main () {
// {"jsonrpc": "2.0", "id": 1, "method": "eth_subscribe", "params": ["xxxxx"]} , "xxxxx" 是订阅的具体消息
var payload = {"jsonrpc": "2.0", "id": 1, "method": "eth_subscribe", "params": ["newPendingTransactions"]}
// 使用alchemy服务
ws = Dial("wss://eth-mainnet.g.alchemy.com/v2/oKmOQKbneVkxgHZfibs-iFhIlIAl6HDN" + "|reconnect=true&payload=" + JSON.stringify(payload))
if (!ws) {
throw "websocket链接alchemy失败！"
}
// eth_getTransactionByHash 调用计数
var getTransactionCounter = 0
// 起始时间戳
var beginTS = new Date().getTime()
// 计算函数签名哈希
var sigHash = "0x" + Encode("keccak256", "string", "hex", "multicall(uint256,bytes[])").slice(0, 8)
Log("sigHash:", sigHash)
// 循环获取消息
while (true) {
var msg = ""
var recv = null
// 接收推送的消息，使用read参数-2，立即返回最新数据
var data = ws.read(-2)
if (data && data != "") {
var ts = new Date().getTime()
if (ts - beginTS >= 1000) {
getTransactionCounter = 0
beginTS = ts
}
// 根据txHash查询交易详情
if (ts - beginTS < 1000 && getTransactionCounter >= 100) {
Sleep(1000)
getTransactionCounter = 0
beginTS = ts
}
var obj = JSON.parse(data)
if (obj["params"] && obj["params"]["result"]) {
var txHash = obj["params"]["result"]
var tx = exchange.IO("api", "eth", "eth_getTransactionByHash", txHash)
if (tx && tx.input.indexOf(sigHash) !== -1) {
// 解码交易详情
arrLog = []
var decodedInput = decodeCall(tx.input, ABI_Route)
// Log("----------------", txHash, "/", decodedInput["funcName"], "----------------", "#FF0000")
arrLog.push("----------------" + txHash + "/" + decodedInput["funcName"] + "----------------" + "#FF0000")
arrLog.push(tx.from + " -> " + tx.to)
for (var i = 0; i < decodedInput["args"]["data"].length; i++) {
var calldata = "0x" + decodedInput["args"]["data"][i]
var decodedCalldata = decodeCall(calldata, ABI_Route)
// Log("----------------", decodedCalldata["funcName"], "----------------", "#FF0000")
arrLog.push("----------------" + decodedCalldata["funcName"] + "----------------" + "#FF0000")
for (var key in decodedCalldata["args"]) {
// Log(key, decodedCalldata["args"][key])
arrLog.push(key + ": " + JSON.stringify(decodedCalldata["args"][key]))
}
}

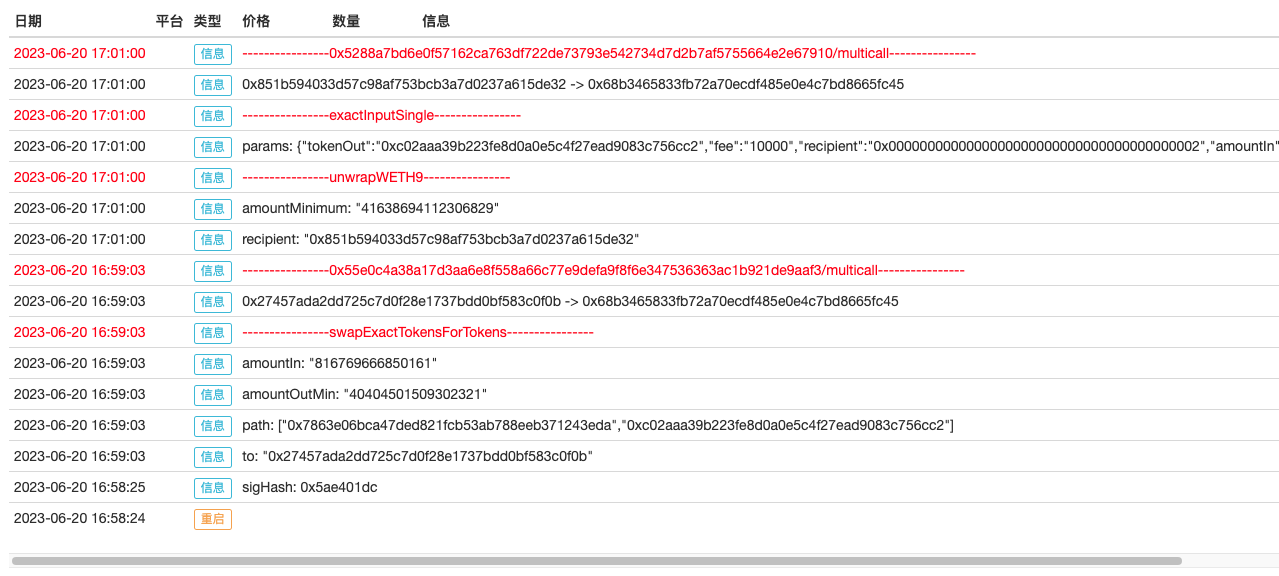

// 输出日志
for (var logIdx = arrLog.length - 1; logIdx >= 0; logIdx--) {
Log(arrLog[logIdx])
}
}
getTransactionCounter++
}
recv = obj
} else if (data == null) {
msg = "缓冲区队列空了,时间：" + _D()
}
LogStatus(_D(), ", msg:", msg, ", recv:", recv)
}
}
function onexit() {
Log("断开WS连接")
ws.close()
}
function onerror() {
Log("断开WS连接")
ws.close()
for (var logIdx = arrLog.length - 1; logIdx >= 0; logIdx--) {
Log(arrLog[logIdx])
}
}
创建实盘运行测试：
2023-06-20 17:01:00 信息 ----------------0x5288a7bd6e0f57162ca763df722de73793e542734d7d2b7af5755664e2e67910/multicall----------------
2023-06-20 17:01:00 信息 0x851b594033d57c98af753bcb3a7d0237a615de32 -> 0x68b3465833fb72a70ecdf485e0e4c7bd8665fc45
2023-06-20 17:01:00 信息 ----------------exactInputSingle----------------
2023-06-20 17:01:00 信息 params: {"tokenOut":"0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2","fee":"10000","recipient":"0x0000000000000000000000000000000000000002","amountIn":"8952087000296027130940868","amountOutMinimum":"41638694112306829","sqrtPriceLimitX96":"0","tokenIn":"0xe1283567345349942acdfad3692924a1b16cf3cc"}
2023-06-20 17:01:00 信息 ----------------unwrapWETH9----------------
2023-06-20 17:01:00 信息 amountMinimum: "41638694112306829"
2023-06-20 17:01:00 信息 recipient: "0x851b594033d57c98af753bcb3a7d0237a615de32"
2023-06-20 16:59:03 信息 ----------------0x55e0c4a38a17d3aa6e8f558a66c77e9defa9f8f6e347536363ac1b921de9aaf3/multicall----------------
2023-06-20 16:59:03 信息 0x27457ada2dd725c7d0f28e1737bdd0bf583c0f0b -> 0x68b3465833fb72a70ecdf485e0e4c7bd8665fc45
2023-06-20 16:59:03 信息 ----------------swapExactTokensForTokens----------------
2023-06-20 16:59:03 信息 amountIn: "816769666850161"
2023-06-20 16:59:03 信息 amountOutMin: "40404501509302321"
2023-06-20 16:59:03 信息 path: ["0x7863e06bca47ded821fcb53ab788eeb371243eda","0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2"]
2023-06-20 16:59:03 信息 to: "0x27457ada2dd725c7d0f28e1737bdd0bf583c0f0b"
2023-06-20 16:58:25 信息 sigHash: 0x5ae401dc
截图：
可以看到Transaction Hash为0x5288a7bd6e0f57162ca763df722de73793e542734d7d2b7af5755664e2e67910的这笔交易，input data数据包含的调用是一个multicall方法的调用。这笔交易发送方向是：0x851b594033d57c98af753bcb3a7d0237a615de32 -> 0x68b3465833fb72a70ecdf485e0e4c7bd8665fc45。0x68b3465833fb72a70ecdf485e0e4c7bd8665fc45即Uniswap的路由合约地址。
解析出了multicall打包调用了合约的exactInputSingle和unwrapWETH9方法、以及这些方法的具体参数。
----------------exactInputSingle----------------
params: {
"tokenOut":"0xc02aaa39b223fe8d0a0e5c4f27ead9083c756cc2",
"fee":"10000",
"recipient":"0x0000000000000000000000000000000000000002",
"amountIn":"8952087000296027130940868",
"amountOutMinimum":"41638694112306829",
"sqrtPriceLimitX96":"0",
"tokenIn":"0xe1283567345349942acdfad3692924a1b16cf3cc"
}
----------------unwrapWETH9----------------
amountMinimum: "41638694112306829"
recipient: "0x851b594033d57c98af753bcb3a7d0237a615de32"
有兴趣的同学可以基于此例子修改、扩展，监控更多的交易、解析这些链上操作。
More
