Trend Following Strategy Based on Multiple Indicators
Author: ChaoZhang, Date: 2024-01-30 17:51:04Tags:
Overview
This strategy identifies trends by combining multiple indicators and sets trend tracking stop loss to lock in profits. It mainly uses Bollinger Bands, RSI, ADX and other indicators to determine entry timing, and uses ATR and Bollinger Bands for stop loss.
Strategy Principle
The main judgment indicators of the strategy are Bollinger Bands, RSI and ADX. When the price approaches the lower rail of the Bollinger Bands and the RSI is below 30, it is judged as oversold and long position is taken; when the price approaches the upper rail of the Bollinger Bands and the RSI is above 70, it is judged as overbought and short position is taken. In addition, if the ADX is above 25, it means that a trend has formed, which makes the long and short signals more effective.
After opening positions, the strategy uses ATR indicator and Bollinger Bands rails to set stop loss. Specifically, the ATR sets the maximum stop loss range. When the price reaches the maximum stop loss point, close the position; the Bollinger Bands rails set trailing stop loss points which update according to price movement.
Advantage Analysis
The strategy combines multiple indicators for judgement and uses stop loss mechanism to lock in profits and reduce risk. The main advantages are as follows:
- Using Bollinger Bands to judge overbought and oversold situations for reversal opportunities
- Combining with RSI indicator increases judgment accuracy
- ADX indicator determines trend formation to ensure correct trade direction
- ATR and Bollinger Bands trailing stop loss can maximize profit locking
Risk Analysis
There are also some risks for this strategy:
- Multiple indicators judgment leads to high chance of over-optimization
- Signals are less effective when Bollinger Bands range is too wide
- Improper stop loss trailing may lead to expanded losses
To address these risks, we can take the following measures:
- Multi-parameter optimization to prevent over-optimization
- Adjust Bollinger Bands parameters based on market volatility
- Test stop loss distance parameters to endure normal fluctuations
Optimization Directions
The strategy can also be optimized in the following aspects:
- Add position sizing to adjust position scale based on stop loss multiplier
- Add money management module to strictly control single stop loss amount
- Test other stop loss indicators like DMI, Envelop etc
- Add machine learning models to determine trend probability and improve performance
Summary
In summary, this is a relatively robust trend following strategy. By determining trend direction through multiple indicators and controlling risks through stop loss measures, it can achieve good return on investment. We have also proposed several aspects that the strategy can optimize. Further optimizations may lead to even better results.

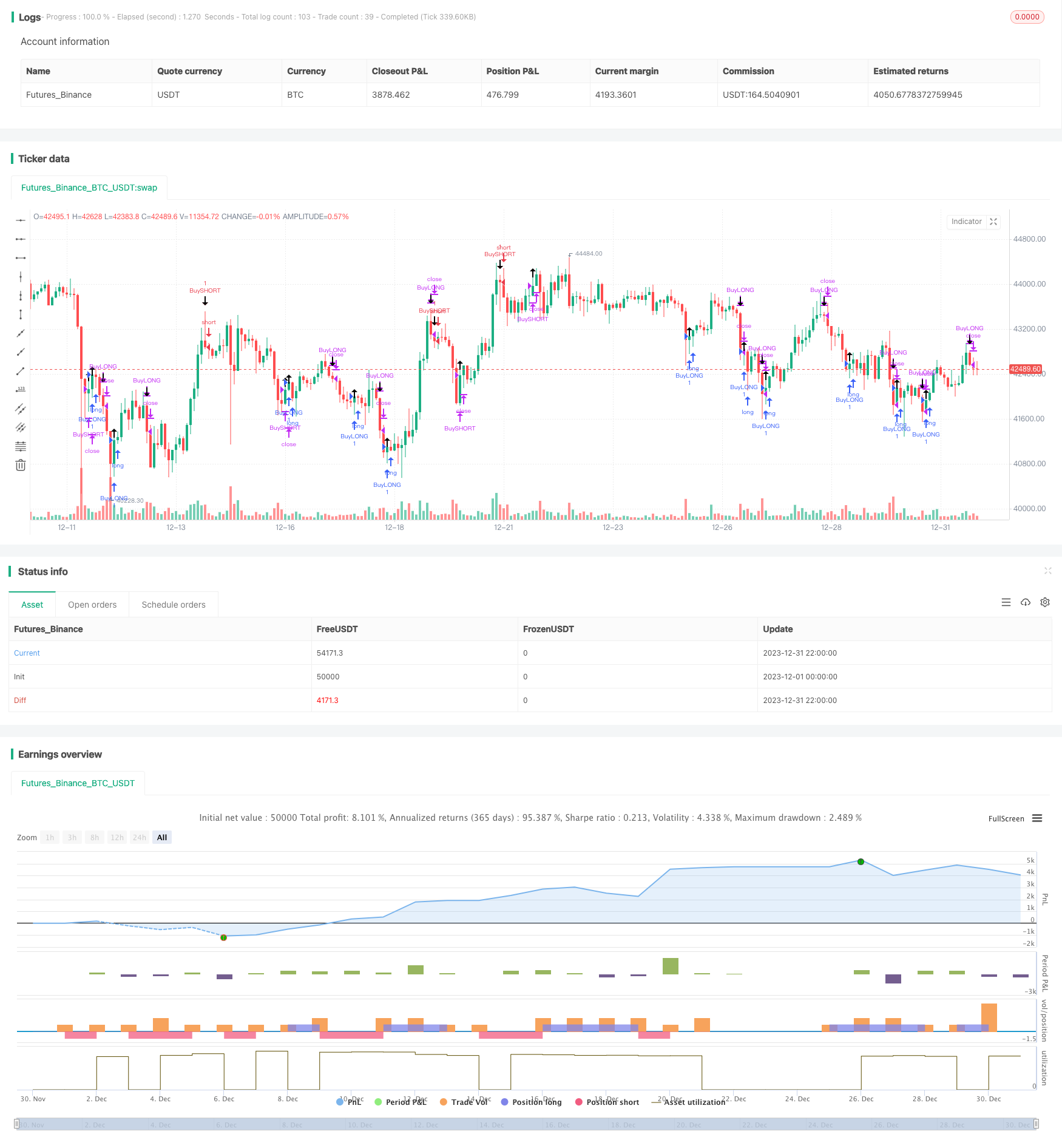

/*backtest
start: 2023-12-01 00:00:00
end: 2023-12-31 23:59:59
period: 2h
basePeriod: 15m
exchanges: [{"eid":"Futures_Binance","currency":"BTC_USDT"}]
*/
//@version=3
// THIS SCRIPT IS MEANT TO ACCOMPANY COMMAND EXECUTION BOTS
// THE INCLUDED STRATEGY IS NOT MEANT FOR LIVE TRADING
// THIS STRATEGY IS PURELY AN EXAMLE TO START EXPERIMENTATING WITH YOUR OWN IDEAS
/////////////////////////////////////////////////////////////////////////////////
// comment out the next line to use this script as an alert script
strategy(title="Dragon Bot - Default Script", overlay=true)
// remove the // in the next line to use this script as an alert script
// study(title="Dragon Bot - Default Script", overlay=true)
// Dragon-Bot default script version 2.0
// This can also be used with bot that reacts to tradingview alerts.
// Use the script as "strategy" for backtesting
// Comment out line 8 and de-comment line 10 to be able to set tradingview alerts.
// You should also comment out (place // before it) the lines 360, 364, 368 and 372 (strategy.entry and strategy.close) to be able to set the alerts.
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
// In this first part of the script we setup variables and make sure the script keeps all information it used in the past. //
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
longs = 0
longs := nz(longs[1])
shorts = 0
shorts := nz(shorts[1])
buyprice = 0.0
buyprice := buyprice[1]
sellprice = 0.0
sellprice := sellprice[1]
scaler = 0.0
scaler := scaler[1]
sellprofit = input(1.0, minval=0.0, step=0.1, title="main strat profit")
sellproffinal = sellprofit/100
enable_shorts = input(1, minval=0, maxval=1, title="Shorts on/off")
enable_flipping = input(0, minval=0, maxval=1, title="Flipping on/off -> Go directly from long -> short or short -> long without closing ")
enable_stoploss = input(0, minval=0, maxval=1, title="Stoploss on/off")
sellstoploss = input(30.0, minval=0.0, step=1.0, title="Stoploss %")
sellstoplossfinal = sellstoploss/100
enable_trailing = input(1, minval=0, maxval=1, title="Trailing on/off")
enable_trailing_ATR = input(1, minval=0, maxval=1, title="Trailing use ATR on/off")
ATR_Multi = input(1.0, minval=0.0, step=0.1, title="Multiplier for ATR")
selltrailing = input(10.0, minval=0.0, step=1.0, title="Trailing %")
selltrailingfinal = selltrailing/100
Backtestdate = input(0, minval=0, maxval=1, title="backtest date on/off")
// Component Code by pbergden - Start backtest dates
// The following code snippet is taken from an example by pbergen
// All rights to this snippet remain with pbergden
testStartYear = input(2018, "Backtest Start Year")
testStartMonth = input(1, "Backtest Start Month")
testStartDay = input(1, "Backtest Start Day")
testPeriodStart = timestamp(testStartYear,testStartMonth,testStartDay,0,0)
testStopYear = input(2019, "Backtest Stop Year")
testStopMonth = input(1, "Backtest Stop Month")
testStopDay = input(1, "Backtest Stop Day")
testPeriodStop = timestamp(testStopYear,testStopMonth,testStopDay,0,0)
// A switch to control background coloring of the test period
testPeriodBackground = input(title="Color Background?", type=bool, defval=true)
testPeriodBackgroundColor = testPeriodBackground and (time >= testPeriodStart) and (time <= testPeriodStop) ? #00FF00 : na
bgcolor(testPeriodBackgroundColor, transp=97)
testPeriod() => true
/////////////////////////////////////////////////////////////////////////////////////////////////////
// In this second part of the script we setup indicators that we can use for our actual algorithm. //
/////////////////////////////////////////////////////////////////////////////////////////////////////
//ATR
lengthtr = input(20, minval=1, title="ATR Length")
ATRsell = input(0, minval=0, title="1 for added ATR when selling")
ATR=rma(tr(true), lengthtr)
Trail_ATR=rma(tr(true), 10) * ATR_Multi
atr = 0.0
if ATRsell == 1
atr := ATR
//OC2
lengthoc2 = input(20, minval=1, title="OC2 Length")
OC2sell = input(0, minval=0, title="1 for added OC2 when selling")
OC2mult = input(1, minval=1, title="OC2 multiplayer")
OC= abs(open[1]-close)
OC2=rma(OC, lengthoc2)
oc2 = 0.0
if OC2sell == 1
oc2 := OC2*OC2mult
//ADX
lenadx = input(10, minval=1, title="DI Length")
lensig = input(10, title="ADX Smoothing", minval=1, maxval=50)
up = change(high)
down = -change(low)
plusDM = na(up) ? na : (up > down and up > 0 ? up : 0)
minusDM = na(down) ? na : (down > up and down > 0 ? down : 0)
trur = rma(tr, lenadx)
plus = fixnan(100 * rma(plusDM, lenadx) / trur)
minus = fixnan(100 * rma(minusDM, lenadx) / trur)
sum = plus + minus
sigadx = 100 * rma(abs(plus - minus) / (sum == 0 ? 1 : sum), lensig)
//StochRSI
smoothKRSI = input(3, minval=1)
smoothDRSI = input(3, minval=1)
lengthRSI = input(14, minval=1)
lengthStochRSI = input(14, minval=1)
srcRSI = input(close, title="RSI Source")
buyRSI = input(30, minval=1, title="RSI Buy Value")
sellRSI = input(70, minval=1, title="RSI Sell Value")
rsi1 = rsi(srcRSI, lengthRSI)
krsi = sma(stoch(rsi1, rsi1, rsi1, lengthStochRSI), smoothKRSI)
drsi = sma(krsi, smoothDRSI)
// Bollinger bands
lengthbb = input(20, minval=1)
srcbb = input(close, title="Sourcebb")
multbb = input(2.0, minval=0.001, maxval=50)
bb_buy_value = input(0.5, step=0.1, title="BB Buy Value")
bb_sell_value = input(0.5, step=0.1, title="BB Sell Value")
basisbb = sma(srcbb, lengthbb)
devbb = multbb * stdev(srcbb, lengthbb)
upperbb = basisbb + devbb
lowerbb = basisbb - devbb
bbr = (srcbb - lowerbb)/(upperbb - lowerbb)
bbbuy = basisbb - (devbb*bb_buy_value)
bbsell = basisbb + (devbb*bb_sell_value)
//ema very short
shorter = ema(close, 2)
shorterlong = ema(close, 5)
//ema short
short = ema(close, 10)
long = ema(close, 30)
//ema long
shortday = ema(close, 110)
longday = ema(close, 360)
//ema even longer
shortlongerday = ema(close, 240)
longlongerday = ema(close, 720)
//declaring extra timeframe value
profit = request.security(syminfo.tickerid, timeframe.period, close)
////////////////////////////////////////////////////////////////////////
// In the 3rd part of the script we define all the entries and exits //
///////// This third part is basically the acual algorithm ////////////
///////////////////////////////////////////////////////////////////////
//Declaring function with the long entries
OPENLONG_funct() =>
// You can add more buy entries to the script
longentry1 = false
longentry2 = false
longentry3 = false
longentry4 = false
longentry5 = false
makelong_funct = false
if close<bbbuy and krsi<buyRSI // You could for instance add "and shortday > longday"
longentry1 := close>close[1]
// longentry2 := ...
// if another thing we want to buy on happens
// longentry3 := ...
//All the buy entries go above, this last variable is what the function puts out
// if you add more entries, add them in the following list too
makelong_funct := longentry1 or longentry2 or longentry3 or longentry4 or longentry5
//Declaring function wit the short entries
OPENSHORT_funct() =>
// You can add more buy entries to the script
shortentry1 = false
shortentry2 = false
shortentry3 = false
shortentry4 = false
shortentry5 = false
makeshort_funct = false
if close>bbsell and krsi>sellRSI // You could for instance add "and shortday < longday"
shortentry1 := close<close[1]
// shortentry2 := ...
// if another thing we want to buy on happens
// shortentry3 := ...
//All the buy entries go above, this last variable is what the function puts out
// if you add more entries, add them in the following list too
makeshort_funct := shortentry1 or shortentry2 or shortentry3 or shortentry4 or shortentry5
//Declaring function with the long exits
CLOSELONG_funct() =>
// You can add more buy entries to the script
longexit1 = false
longexit2 = false
longexit3 = false
longexit4 = false
longexit5 = false
closelong_funct = false
if close>bbsell and krsi>sellRSI
longexit1 := close<close[1]
// longexit2 := ...
// if another thing we want to close on on happens you can add them here...
// longexit3 := ...
//All the buy entries go above, this last variable is what the function puts out
// if you add more exits, add them in the following list too
closelong_funct := longexit1 or longexit2 or longexit3 or longexit4 or longexit5
//Declaring function wit the short exits
CLOSESHORT_funct() =>
// You can add more buy entries to the script
shortexit1 = false
shortexit2 = false
shortexit3 = false
shortexit4 = false
shortexit5 = false
closeshort_funct = false
if close<bbsell and krsi<sellRSI
shortexit1 := close>close[1]
// shortexit2 := ...
// if another thing we want to close on on happens you can add them here...
// shortexit3 := ...
//All the buy entries go above, this last variable is what the function puts out
// if you add more exits, add them in the following list too
closeshort_funct := shortexit1 or shortexit2 or shortexit3 or shortexit4 or shortexit5
/////////////////////////////////////////////////////////////////////////////////////
////////////// End of "entries" and "exits" definition code /////////////////////////
/////////////////////////////////////////////////////////////////////////////////////
/// In the fourth part we do the actual work, as defined in the part before this ////
////////////////////// This part does not need to be changed ////////////////////////
/////////////////////////////////////////////////////////////////////////////////////
//OPEN LONG LOGIC
makelong = false
//buy with backtesting on specific dates
if Backtestdate > 0 and testPeriod()
if (longs < 1 and shorts < 1) or (short > 0 and enable_flipping > 0 and enable_shorts > 0)
makelong := OPENLONG_funct()
//buy without backtesting on specific dates
if Backtestdate < 1
if (longs < 1 and shorts < 1) or (short > 0 and enable_flipping > 0 and enable_shorts > 0)
makelong := OPENLONG_funct()
if makelong
buyprice := close
scaler := close
longs := 1
shorts := 0
//OPEN SHORT LOGIC
makeshort = false
//buy with backtesting on specific dates
if Backtestdate > 0 and testPeriod()
if (shorts < 1 and longs < 1 and enable_shorts > 0) or (longs > 0 and enable_flipping > 0 and enable_shorts > 0)
makeshort := OPENSHORT_funct()
//buy without backtesting on specific dates
if Backtestdate < 1
if (shorts < 1 and longs < 1 and enable_shorts > 0) or (longs > 0 and enable_flipping > 0 and enable_shorts > 0)
makeshort := OPENSHORT_funct()
if makeshort
buyprice := close
scaler := close
shorts := 1
longs := 0
//Calculating values for traling stop
if longs > 0 and enable_flipping < 1
if close > scaler+Trail_ATR and enable_trailing_ATR > 0
scaler := close
if close > scaler * (1.0 + selltrailingfinal) and enable_trailing_ATR < 1
scaler := close
if shorts > 0 and enable_flipping < 1
if close < scaler-Trail_ATR and enable_trailing_ATR > 0
scaler := close
if close < scaler * (1.0 - selltrailingfinal) and enable_trailing_ATR < 1
scaler := close
long_exit = false
long_security1 = false
long_security2 = false
long_security3 = false
//CLOSE LONG LOGIC
if longs > 0 and enable_flipping < 1
if ( (buyprice + (buyprice*sellproffinal) + atr + oc2) < close) and ( (buyprice + (buyprice*sellproffinal) ) < profit)
long_exit := CLOSELONG_funct()
//security
if enable_stoploss > 0
long_security1 := close < ( buyprice * (1.0 - sellstoplossfinal) )
if enable_trailing > 0 and enable_trailing_ATR < 1
long_security2 := close < ( scaler * (1.0 - selltrailingfinal) )
if enable_trailing > 0 and enable_trailing_ATR > 0
long_security2 := close < ( scaler - Trail_ATR)
//CLOSE LONG LOGIC
if longs > 0 and enable_flipping > 0
//security
if enable_stoploss > 0
long_security1 := close < ( buyprice * (1.0 - sellstoplossfinal) )
if enable_trailing > 0 and enable_trailing_ATR < 1
long_security2 := close < ( scaler * (1.0 - selltrailingfinal) )
if enable_trailing > 0 and enable_trailing_ATR > 0
long_security2 := close < ( scaler - Trail_ATR)
closelong = long_exit or long_security1 or long_security2 or long_security3
short_exit = false
short_security1 = false
short_security2 = false
short_security3 = false
if closelong
longs := 0
//CLOSE SHORT LOGIC
if shorts > 0 and enable_flipping < 1
if ( (buyprice - (buyprice*(sellproffinal) - atr - oc2) > close) and ( (buyprice - (buyprice*sellproffinal) ) > profit) )
short_exit := CLOSESHORT_funct()
//security
if enable_stoploss > 0
short_security1 := close > ( buyprice * (1.0 + sellstoplossfinal) )
if enable_trailing > 0 and enable_trailing_ATR < 1
short_security2 := close > ( scaler * (1.0 + selltrailingfinal) )
if enable_trailing > 0 and enable_trailing_ATR > 0
short_security2 := close > ( scaler + Trail_ATR)
if shorts > 0 and enable_flipping > 0
//security
if enable_stoploss > 0
short_security1 := close > ( buyprice * (1.0 + sellstoplossfinal) )
if enable_trailing > 0 and enable_trailing_ATR < 1
short_security2 := close > ( scaler * (1.0 + selltrailingfinal) )
if enable_trailing > 0 and enable_trailing_ATR > 0
short_security2 := close > ( scaler + Trail_ATR)
closeshort = short_exit or short_security1 or short_security2 or short_security3
if closeshort
shorts := 0
///////////////////////////////////////////////////////////////////////////////////////
///////////// The last section takes care of the alerts //////////////////////////////
//////////////////////////////////////////////////////////////////////////////////////
plotshape(makelong, style=shape.arrowup)
alertcondition(makelong, title="openlong", message="openlong")
strategy.entry("BuyLONG", strategy.long, oca_name="DBCross", when= makelong, comment="Open Long")
plotshape(makeshort, style=shape.arrowdown)
alertcondition(makeshort, title="openshort", message="openshort")
strategy.entry("BuySHORT", strategy.short, oca_name="DBCross", when= makeshort, comment="Open Short")
plotshape(closelong, style=shape.arrowdown)
alertcondition(closelong, title="closelong", message="closelong")
strategy.close("BuyLONG", when=closelong)
plotshape(closeshort, style=shape.arrowup)
alertcondition(closeshort, title="closeshort", message="closeshort")
strategy.close("BuySHORT", when=closeshort)
More
- Multi-factor Quantitative Trading Strategy
- Double Moving Average Crossover Strategy
- Dual-Mechanism Dynamic Trend Tracking Strategy
- Bitcoin Trading Strategy Based on Ichimoku Cloud
- Bull Market Tracking System
- Intraday Trading Strategy for Stocks Based on Renko Low Point Retracement
- Trend Trading Strategy Based on Price Channel of Double Moving Averages
- Dual MA Momentum Breakout Strategy
- SMART Professional Quantitative Trading Strategy
- Dual Breakout Volatility Channel Strategy
- Multi Timeframe MACD Trading Strategy
- Monthly Returns Strategy with Benchmark
- Squeeze Momentum Breakout Strategy
- Dual Breakthrough Strategy
- Momentum Breakout and Engulfing Pattern Algorithmic Trading Strategy
- Dual Moving Average Confluence Strategy
- An RSI Reversal Trading Strategy
- Dual-directional ADX Trading Strategy
- Vix Fix Linear Regression Bottom Fishing Strategy
- Three Exponential Moving Averages and Stochastic Relative Strength Index Trading Strategy
