Multi-Indicator Volatility Trading RSI-EMA-ATR Strategy

Author: ChaoZhang, Date: 2024-12-20 14:47:41
Tags: RSIEMAATRSMA


Overview

This strategy is a short-term trading system that combines multiple technical indicators, primarily based on RSI (Relative Strength Index), EMA (Exponential Moving Average), and ATR (Average True Range) for generating trading signals. By utilizing multiple indicators together, the strategy considers both price trends and market volatility, with an optional volume filter, creating a relatively complete trading decision system.

Strategy Principle

The strategy employs a triple-filtering mechanism to ensure signal reliability:

  1. Trend Determination: Using the crossover relationship between Fast EMA (5-period) and Slow EMA (21-period) to judge current market trend
  2. Overbought/Oversold: Using RSI indicator (14-period) for reversal trading within the 45-55 range
  3. Volatility Confirmation: Using ATR indicator to determine if current market volatility is suitable for trading, requiring ATR value to be greater than 0.8 times its moving average
  4. Optional volume filter requiring volume to be above its 20-period moving average

Specific trigger conditions for long and short signals are:

  • Long Condition: Fast EMA above Slow EMA + RSI below 45 + Volatility condition met
  • Short Condition: Fast EMA below Slow EMA + RSI above 55 + Volatility condition met

Strategy Advantages

  1. Multiple confirmation mechanisms improve trading reliability and effectively reduce false signals
  2. Combines trend-following and reversal trading characteristics, capable of capturing major trends while profiting from range-bound markets
  3. Controls volatility through ATR indicator, avoiding frequent trading during low volatility periods
  4. Strategy has good adaptability and can be adjusted through parameters to suit different market environments
  5. Optional volume filtering mechanism further improves trading accuracy

Strategy Risks

  1. May experience slippage in volatile markets, affecting actual execution
  2. Parameter optimization faces overfitting risk, requiring thorough testing across different time periods
  3. Fast and Slow EMAs may produce excessive crossovers in sideways markets, leading to false signals
  4. Fixed RSI thresholds may need adjustment in different market environments
  5. Trading costs (0.1% commission) may significantly impact strategy returns

Strategy Optimization Directions

  1. Consider adding multiple timeframe confirmation, such as adding trend filters on larger timeframes
  2. Recommend adding stop-loss and take-profit mechanisms, potentially based on ATR multiples
  3. Consider implementing a position management system with dynamic position sizing based on volatility
  4. Consider introducing market sentiment indicators to adjust trading parameters in extreme market conditions
  5. Recommend adding trading time filters to avoid trading during low liquidity periods

Summary

This is a well-designed multi-indicator trading system that improves trading reliability through multiple confirmation mechanisms. The strategy’s core advantage lies in combining trend and volatility analysis while considering multiple market dimensions. While there is room for optimization, it is overall a trading strategy worth further refinement and implementation.

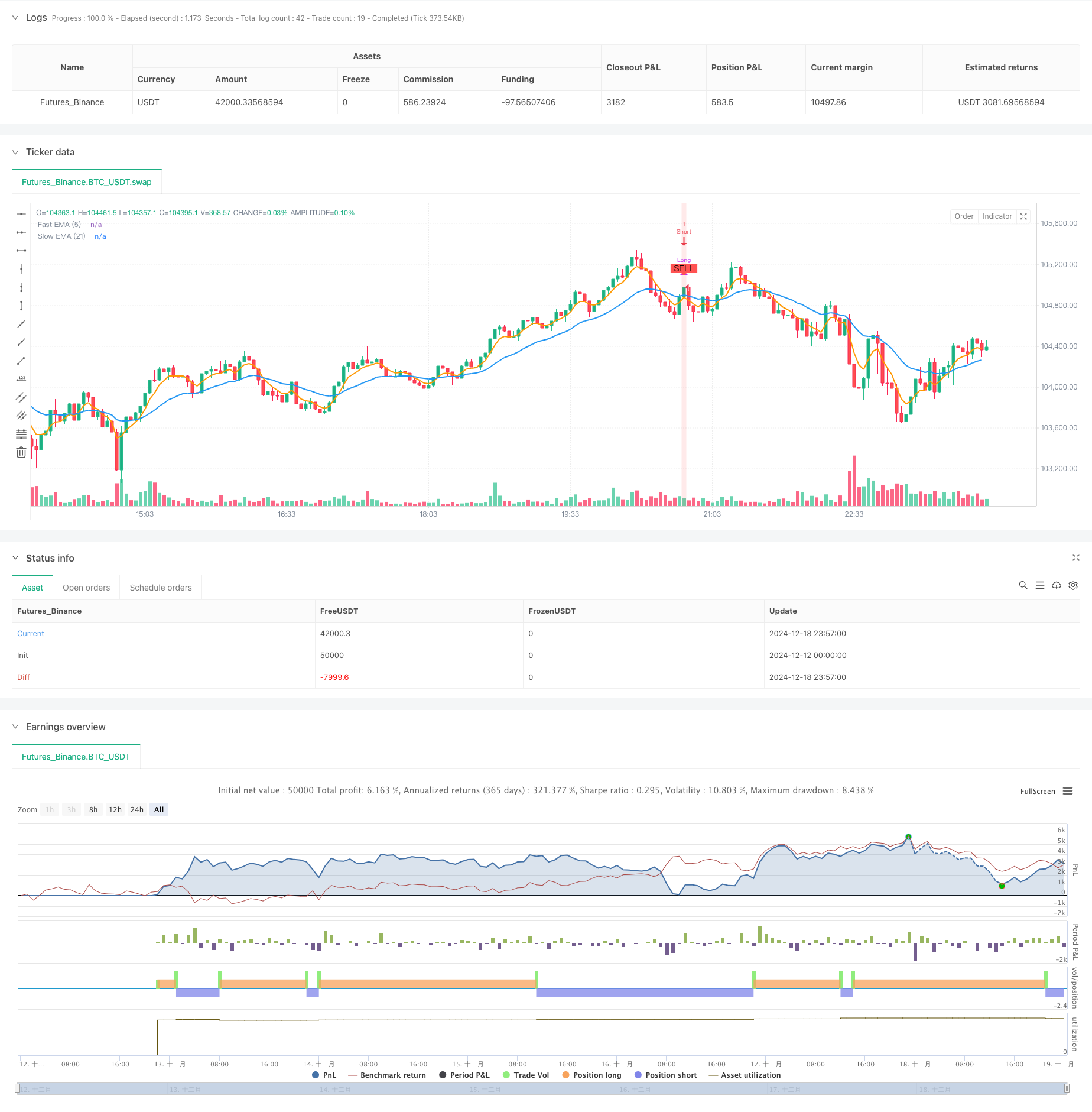

/*backtest
start: 2024-12-12 00:00:00
end: 2024-12-19 00:00:00
period: 3m
basePeriod: 3m
exchanges: [{"eid":"Futures_Binance","currency":"BTC_USDT"}]
*/

//@version=5
strategy("Scalp Master BTCUSDT Strategy", overlay=true, max_labels_count=500, initial_capital=10000, commission_type=strategy.commission.percent, commission_value=0.1)

//=== Kullanıcı Parametreleri ===
rsi_length         = input.int(14, "RSI Length")
rsi_lower_band     = input.float(45, "RSI Lower Band")
rsi_upper_band     = input.float(55, "RSI Upper Band")

ema_fast_length    = input.int(5, "Fast EMA")
ema_slow_length    = input.int(21, "Slow EMA")

atr_period         = input.int(14, "ATR Period")
atr_mult           = input.float(0.8, "ATR Multiplier")

volume_filter      = input.bool(false, "Enable Volume Filter")
volume_period      = input.int(20, "Volume SMA Period")
volume_mult        = input.float(1.0, "Volume Threshold Multiplier")

//=== Hesaplamalar ===

// RSI Hesabı
rsi_val = ta.rsi(close, rsi_length)

// ATR Tabanlı Volatilite Kontrolü
atr_val = ta.atr(atr_period)
volatility_ok = atr_val > (ta.sma(atr_val, atr_period) * atr_mult)

// EMA Trend
ema_fast_val = ta.ema(close, ema_fast_length)
ema_slow_val = ta.ema(close, ema_slow_length)
trend_up = ema_fast_val > ema_slow_val
trend_down = ema_fast_val < ema_slow_val

// Hacim Filtresi
volume_sma = ta.sma(volume, volume_period)
high_volume = volume > (volume_sma * volume_mult)

// Sinyal Koşulları (Aynı Alarm Koşulları)
long_signal = trend_up and rsi_val < rsi_lower_band and volatility_ok and (volume_filter ? high_volume : true)
short_signal = trend_down and rsi_val > rsi_upper_band and volatility_ok and (volume_filter ? high_volume : true)

//=== Strateji Mantığı ===
// Basit bir yaklaşım:
// - Long sinyali gelince önce Short pozisyonu kapat, sonra Long pozisyona gir.
// - Short sinyali gelince önce Long pozisyonu kapat, sonra Short pozisyona gir.

if (long_signal)
    strategy.close("Short") // Eğer varsa Short pozisyonu kapat
    strategy.entry("Long", strategy.long)

if (short_signal)
    strategy.close("Long") // Eğer varsa Long pozisyonu kapat
    strategy.entry("Short", strategy.short)

// EMA Çizimleri
plot(ema_fast_val, title="Fast EMA (5)", color=color.new(color.orange, 0), linewidth=2)
plot(ema_slow_val, title="Slow EMA (21)", color=color.new(color.blue, 0), linewidth=2)

// Sinyal İşaretleri
plotshape(long_signal, title="BUY Signal", location=location.belowbar,
     color=color.new(color.green, 0), style=shape.labelup, text="BUY")

plotshape(short_signal, title="SELL Signal", location=location.abovebar,
     color=color.new(color.red, 0), style=shape.labeldown, text="SELL")

// Arka plan renklendirmesi
bgcolor(long_signal ? color.new(color.green, 85) : short_signal ? color.new(color.red, 85) : na)

// Alarm Koşulları (İndikatör ile aynı koşullar)
alertcondition(long_signal, title="Buy Alert", message="BTCUSDT Scalp Master: Buy Signal Triggered")
alertcondition(short_signal, title="Sell Alert", message="BTCUSDT Scalp Master: Sell Alert Triggered")
