“name”: “close position”}] ] })“_json;

  auto ticker = exchange.GetTicker();
  json jsonTicker = R"({"Buy": 0, "Sell": 0, "High": 0, "Low": 0, "Volume": 0, "Last": 0, "Time": 0})"_json;
  jsonTicker["Buy"] = ticker.Buy;
  jsonTicker["Sell"] = ticker.Sell;
  jsonTicker["Last"] = ticker.Last;
  jsonTicker["Volume"] = ticker.Volume;
  jsonTicker["Time"] = ticker.Time;
  jsonTicker["High"] = ticker.High;
  jsonTicker["Low"] = ticker.Low;

  json arr = R"([{"body": {}, "colspan": 2}, "abc"])"_json;
  arr[0]["body"] = jsonTicker;
  table["rows"].push_back(arr);
  LogStatus("`" + table.dump() + "`");

}

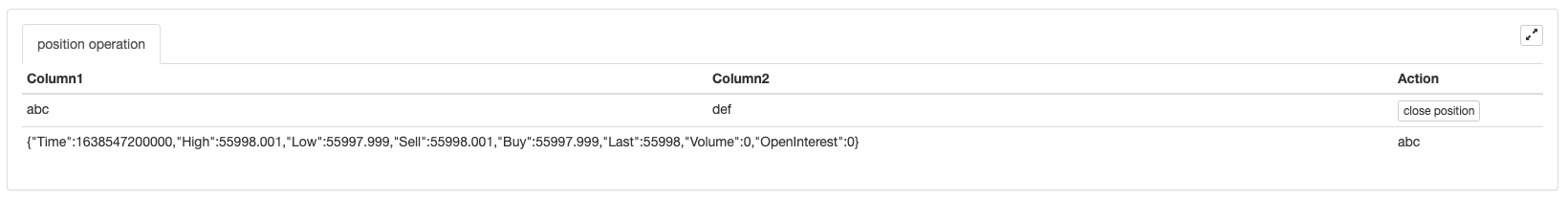

  ![](![FMZ API Instructions](/upload/asset/26902c1e3ac979aff2b49.png))

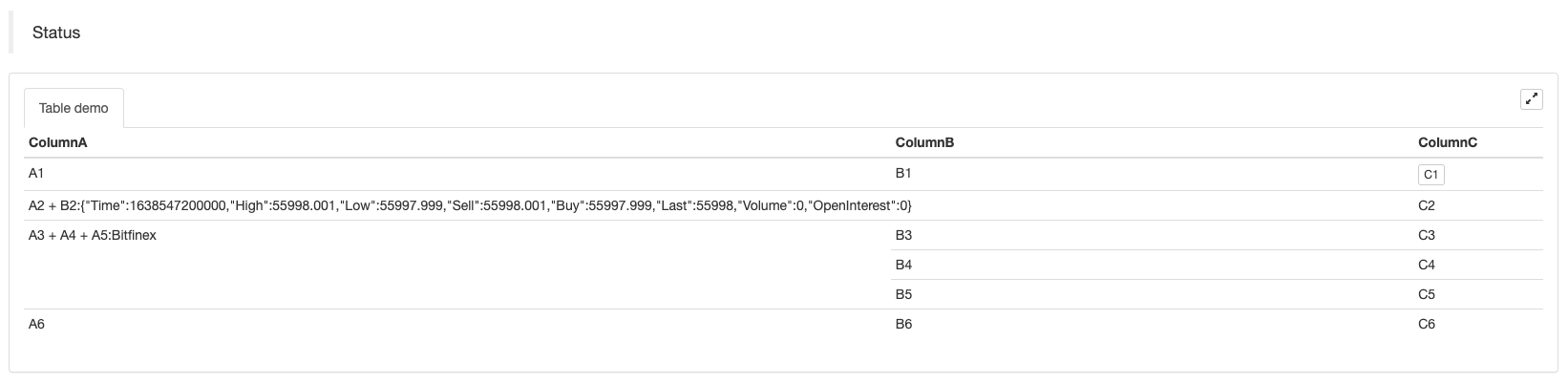

- Vertical merger

  ```js
  function main() {
      var table = {
          type: 'table',
          title: 'Table demo',
          cols: ['ColumnA', 'ColumnB', 'ColumnC'],
          rows: [
              ['A1', 'B1', {'type':'button', 'cmd': 'coverAll', 'name': 'C1'}]
          ]
      }

      var ticker = exchange.GetTicker()
      var name = exchange.GetName()

      table.rows.push([{body : "A2 + B2:" + JSON.stringify(ticker), colspan : 2}, "C2"])
      table.rows.push([{body : "A3 + A4 + A5:" + name, rowspan : 3}, "B3", "C3"])
      // A3 is merged by the first cell in the previous row
      table.rows.push(["B4", "C4"])
      // A2 is merged by the first cell in the previous row
      table.rows.push(["B5", "C5"])
      table.rows.push(["A6", "B6", "C6"])
      LogStatus('`' + JSON.stringify(table) + '`')
  }

  import json
  def main():
      table = {
          "type" : "table",
          "title" : "Table demo",
          "cols" : ["ColumnA", "ColumnB", "ColumnC"],
          "rows" : [
              ["A1", "B1", {"type": "button", "cmd": "coverAll", "name": "C1"}]
          ]
      }

      ticker = exchange.GetTicker()
      name = exchange.GetName()

      table["rows"].append([{"body": "A2 + B2:" + json.dumps(ticker), "colspan": 2}, "C2"])
      table["rows"].append([{"body": "A3 + A4 + A5:" + name, "rowspan": 3}, "B3", "C3"])
      table["rows"].append(["B4", "C4"])
      table["rows"].append(["B5", "C5"])
      table["rows"].append(["A6", "B6", "C6"])
      LogStatus("`" + json.dumps(table) + "`")

  void main() {
      json table = R"({
          "type" : "table",
          "title" : "Table demo",
          "cols" : ["ColumnA", "ColumnB", "ColumnC"],
          "rows" : [
              ["A1", "B1", {"type": "button", "cmd": "coverAll", "name": "C1"}]
          ]
      })"_json;
      // In order to test, the code is short and easy to read, and the constructed data is used here
      json jsonTicker = R"({"High": 0, "Low": 0, "Buy": 0, "Sell": 0, "Last": 0, "Time": 0, "Volume": 0})"_json;
      auto name = exchange.GetName();
      json arr1 = R"([{"body": "", "colspan": 2}, "C2"])"_json;
      arr1[0]["body"] = "A2 + B2:" + jsonTicker.dump();
      json arr2 = R"([{"body": "", "rowspan": 3}, "B3", "C3"])"_json;
      arr2[0]["body"] = "A3 + A4 + A5:" + name;
      table["rows"].push_back(arr1);
      table["rows"].push_back(arr2);
      table["rows"].push_back(R"(["B4", "C4"])"_json);
      table["rows"].push_back(R"(["B5", "C5"])"_json);
      table["rows"].push_back(R"(["A6", "B6", "C6"])"_json);
      LogStatus("`" + table.dump() + "`");
  }

Table pagination display of status bar:

function main() {
    var table1 = {type: 'table', title: 'table1', cols: ['Column1', 'Column2'], rows: [ ['abc', 'def'], ['ABC', 'support color #ff0000']]}
    var table2 = {type: 'table', title: 'table2', cols: ['Column1', 'Column2'], rows: [ ['abc', 'def'], ['ABC', 'support color #ff0000']]}
    LogStatus('`' + JSON.stringify([table1, table2]) + '`')
}

import json
def main():
    table1 = {"type": "table", "title": "table1", "cols": ["Column1", "Column2"], "rows": [ ["abc", "def"], ["ABC", "support color #ff0000"]]}
    table2 = {"type": "table", "title": "table2", "cols": ["Column1", "Column2"], "rows": [ ["abc", "def"], ["ABC", "support color #ff0000"]]}
    LogStatus("`" + json.dumps([table1, table2]) + "`")

void main() {
    json table1 = R"({"type": "table", "title": "table1", "cols": ["Column1", "Column2"], "rows": [ ["abc", "def"], ["ABC", "support color #ff0000"]]})"_json;
    json table2 = R"({"type": "table", "title": "table2", "cols": ["Column1", "Column2"], "rows": [ ["abc", "def"], ["ABC", "support color #ff0000"]]})"_json;
    json arr = R"([])"_json;
    arr.push_back(table1);
    arr.push_back(table2);
    LogStatus("`" + arr.dump() + "`");
}

In addition to paginating tables, multiple tables can be arranged from top to bottom.

function main(){
    var tab1 = {
        type : "table",
        title : "table1",
        cols : ["1", "2"],
        rows : []
    }
    var tab2 = {
        type : "table",
        title : "table2",
        cols : ["1", "2", "3"],
        rows : []
    }
    var tab3 = {
        type : "table",
        title : "table3",
        cols : ["A", "B", "C"],
        rows : []
    }

    tab1.rows.push(["jack", "lucy"])
    tab2.rows.push(["A", "B", "C"])
    tab3.rows.push(["A", "B", "C"])

    LogStatus('`' + JSON.stringify(tab1) + '`\n' +
        '`' + JSON.stringify(tab2) + '`\n' +
        '`' + JSON.stringify(tab3) + '`')

    Log("exit")
}

import json
def main():
    tab1 = {
        "type": "table",
        "title": "table1",
        "cols": ["1", "2"],
        "rows": []
    }
    tab2 = {
        "type": "table",
        "title": "table2",
        "cols": ["1", "2", "3"],
        "rows": []
    }
    tab3 = {
        "type": "table",
        "title": "table3",
        "cols": ["A", "B", "C"],
        "rows": []
    }

    tab1["rows"].append(["jack", "lucy"])
    tab2["rows"].append(["A", "B", "C"])
    tab3["rows"].append(["A", "B", "C"])
    LogStatus("`" + json.dumps(tab1) + "`\n" +
        "`" + json.dumps(tab2) + "`\n" +
        "`" + json.dumps(tab3) + "`")

void main() {
    json tab1 = R"({
        "type": "table",
        "title": "table1",
        "cols": ["1", "2"],
        "rows": []
    })"_json;
    json tab2 = R"({
        "type": "table",
        "title": "table2",
        "cols": ["1", "2", "3"],
        "rows": []
    })"_json;
    json tab3 = R"({
        "type": "table",
        "title": "table3",
        "cols": ["A", "B", "C"],
        "rows": []
    })"_json;
    tab1["rows"].push_back(R"(["jack", "lucy"])"_json);
    tab2["rows"].push_back(R"(["A", "B", "C"])"_json);
    tab3["rows"].push_back(R"(["A", "B", "C"])"_json);
    LogStatus("`" + tab1.dump() + "`\n" +
        "`" + tab2.dump() + "`\n" +
        "`" + tab3.dump() + "`");
}

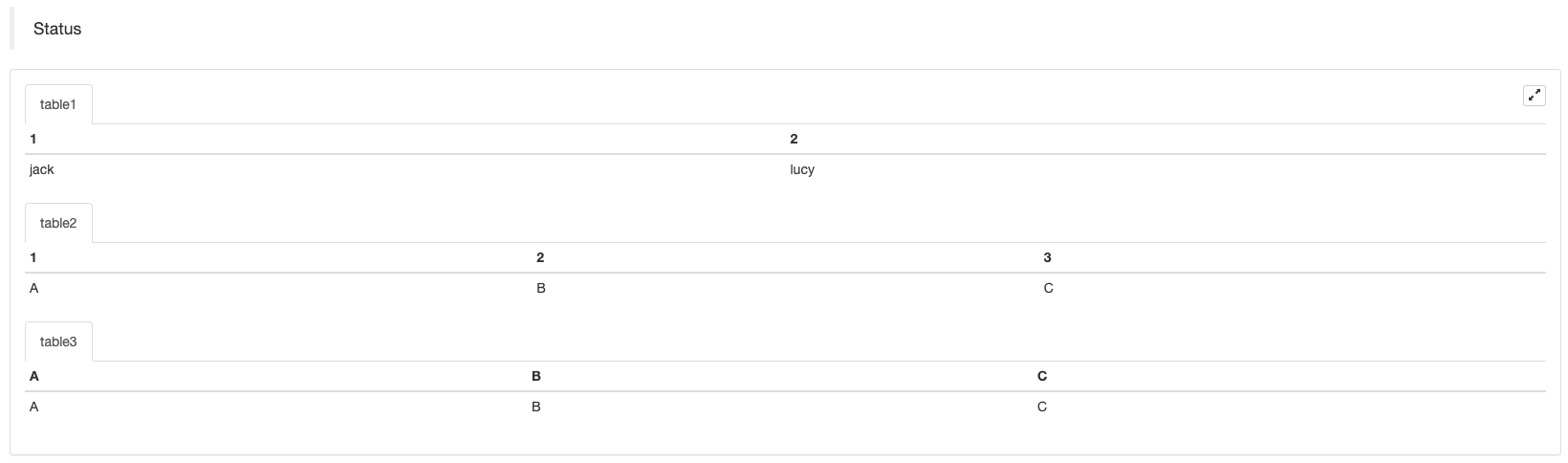

Operation result:

Note: When the strategy bot is running on the bot page, if you scroll through the history records, the status bar will enter a dormant state and stop updating. The status bar data will only refresh when the log is on the first page. The status bar supports outputting images coded in base64, and also supports outputting the images coded in base64 in the displayed tablets. Because the length of the string of the encoded image is normally very long, no sample code is provided.

EnableLog()

#### Chart(...)
```Chart(...)```, function of customizing charts drawing.

```Chart({…})```; the parameter is the **HighCharts.StockChart** parameters of **HighStocks** that can be serialized in ```JSON```, adding a ```_isStock``` attribute to the native parameter. If you specify ```_isStock:false```, it will be displayed as a normal chart.


Note:

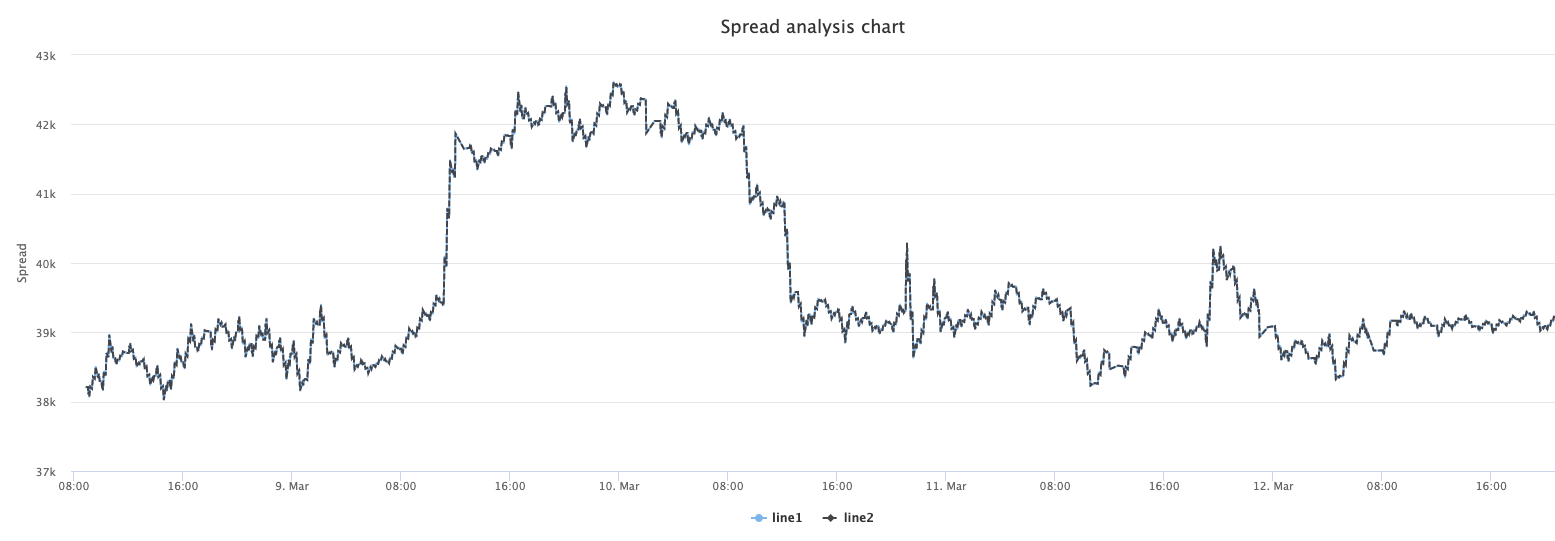

If you set the attribute of ```_isStock``` to ```false```, the chart used is: **Highcharts**, as shown in the chart:


![Highcharts chart](![FMZ API Instructions](/upload/asset/268bf070bbe31cc897bc0.png))

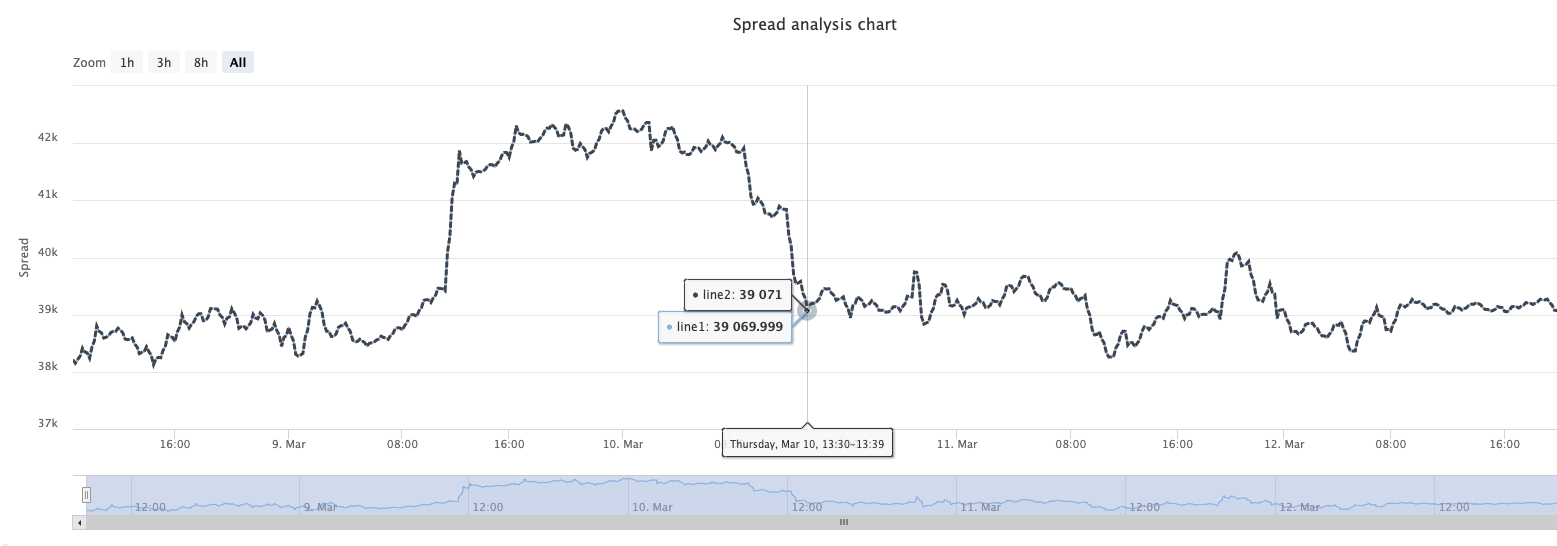

If we set the attribute of ```_isStock``` to ```true```, the chart used is: **Highstocks** (default```_isStock``` as true), as shown in the chart:

![Highstocks chart](![FMZ API Instructions](/upload/asset/268c1729cb54e33569757.png))

To return to the object, you can call ```add(n, data)``` (```n``` (such as 0) is the index of ```series```, and ```data``` is the data written in the chart) to add data to the specified index ```series```; call ```reset()``` to clear the chart data, and ```reset``` can take a numeric parameter and specify the number of reserved items.

You can call ```add(n, data, i)``` (```i``` is the index of this data in the ```series```) to change the data in the corresponding ```series```.

It can be negative, "-1" refers to the last one, and "-2" is the penultimate one. For example, when drawing a line, modify the data at the last point of the line:

```chart.add(0, [1574993606000, 13.5], -1)```, change the data of the last point of ```series[0].data```.

For it supports to display multiple charts, you only need to pass in array parameters during configuration, such as: ```var chart = Chart([{…}, {…}, {…}])```. For example, chart 1 has two ```series```, chart 2 has one ```series```, and chart 3 has one ```series```. Then, specify series ID 0 and 1 when adding represents to update the data of two order Columns of chart 1; specifying the series ID 2 when adding refers to the first ```series``` of chart 2 Data; specifying the series ID3 refers to the data of the first ```series``` of chart 3.

```HighStocks```: [http://api.highcharts.com/highstock](http://api.highcharts.com/highstock)

Attribute settings related to multi-chart display: [example](https://www.fmz.com/strategy/38203)

For example, the chart configuration objects:
```js
var cfgA = {
    extension: {
        // It does not participate in grouping, displayed separately, and its default is 'group'
        layout: 'single',
        // This is the specified height, which can be set to string "300px" (set "300", and "300px" will be displayed instead automatically)
        height: 300,
        // It is the unit value of the specified width, with a total value of 12
        col: 8
    },
    title: {
        text: 'Market Chart'
    },
    xAxis: {
        type: 'datetime'
    },
    series: [{
        name: 'Buy 1',
        data: []
    }, {
        name: 'Sell 1',
        data: []
    }]
}

var cfgB = {
    title: {
        text: 'Spread chart'
    },
    xAxis: {
        type: 'datetime'
    },
    series: [{
        name: 'Spread',
        type: 'column',
        data: []
    }]
}

var cfgC = {
    _isStock: false,
    title: {
        text: 'Pie Chart'
    },
    series: [{
        type: 'pie',
        name: 'one',
        // After specifying the initial data, you don't need to update it with the "add" function; Changing the chart configuration directly will update the series
        data: [
            ["A", 25],
            ["B", 25],
            ["C", 25],
            ["D", 25]
        ]
    }]
}

var cfgD = {
    extension: {
        layout: 'single',
        // The unit value of the specified width, with a total value of 12
        col: 8,
        height: '300px'
    },
    title: {
        text: 'Market Chart'
    },
    xAxis: {
        type: 'datetime'
    },
    series: [{
        name: 'Buy 1',
        data: []
    }, {
        name: 'Sell 1',
        data: []
    }]
}

var cfgE = {
    __isStock: false,
    extension: {
        layout: 'single',
        col: 4,
        height: '300px'
    },
    title: {
        text: 'Pie Chart2'
    },
    series: [{
        type: 'pie',
        name: 'one',
        data: [
            ["A", 25],
            ["B", 25],
            ["C", 25],
            ["D", 25]
        ]
    }]
}

cfgA = {
    "extension" : {
        "layout" : "single",
        "height" : 300,
        "col" : 8
    },
    "title" : {
        "text" : "Market Chart"
    },
    "xAxis" : {
        "type" : "datetime"
    },
    "series" : [{
        "name" : "Buy 1",
        "data" : []
    }, {
        "name" : "Sell 1",
        "data" : []
    }]
}

cfgB = {
    "title" : {
        "text" : "Spread chart"
    },
    "xAxis" : {
        "type" : "datetime"
    },
    "series" : [{
        "name" : "Spread",
        "type" : "column",
        "data" : []
    }]
}

cfgC = {
    "__isStock" : False,
    "title" : {
        "text" : "Pie Chart"
    },
    "series" : [{
        "type" : "pie",
        "name" : "one",
        "data" : [
            ["A", 25],
            ["B", 25],
            ["C", 25],
            ["D", 25]
        ]
    }]
}

cfgD = {
    "extension" : {
        "layout" : "single",
        "col" : 8,
        "height" : "300px"
    },
    "title" : {
        "text" : "Market Chart"
    },
    "series" : [{
        "name" : "Buy 1",
        "data" : []
    }, {
        "name" : "Sell 1",
        "data" : []
    }]
}

cfgE = {
    "__isStock" : False,
    "extension" : {
        "layout" : "single",
        "col" : 4,
        "height" : "300px"
    },
    "title" : {
        "text" : "Pie Chart2"
    },
    "series" : [{
        "type" : "pie",
        "name" : "one",
        "data" : [
            ["A", 25],
            ["B", 25],
            ["C", 25],
            ["D", 25]
        ]
    }]
}

json cfgA = R"({
    "extension" : {
        "layout" : "single",
        "height" : 300,
        "col" : 8
    },
    "title" : {
        "text" : "Market Chart"
    },
    "xAxis" : {
        "type" : "datetime"
    },
    "series" : [{
        "name" : "Buy 1",
        "data" : []
    }, {
        "name" : "Sell 1",
        "data" : []
    }]
})"_json;

json cfgB = R"({
    "title" : {
        "text" : "Spread chart"
    },
    "xAxis" : {
        "type" : "datetime"
    },
    "series" : [{
        "name" : "Spread",
        "type" : "column",
        "data" : []
    }]
})"_json;

json cfgC = R"({
    "__isStock" : false,
    "title" : {
        "text" : "Pie Chart"
    },
    "series" : [{
        "type" : "pie",
        "name" : "one",
        "data" : [
            ["A", 25],
            ["B", 25],
            ["C", 25],
            ["D", 25]
        ]
    }]
})"_json;

json cfgD = R"({
    "extension" : {
        "layout" : "single",
        "col" : 8,
        "height" : "300px"
    },
    "title" : {
        "text" : "Market Chart"
    },
    "series" : [{
        "name" : "Buy 1",
        "data" : []
    }, {
        "name" : "Sell 1",
        "data" : []
    }]
})"_json;

json cfgE = R"({
    "__isStock" : false,
    "extension" : {
        "layout" : "single",
        "col" : 4,
        "height" : "300px"
    },
    "title" : {
        "text" : "Pie Chart2"
    },
    "series" : [{
        "type" : "pie",
        "name" : "one",
        "data" : [
            ["A", 25],
            ["B", 25],
            ["C", 25],
            ["D", 25]
        ]
    }]
})"_json;

• cfgA.extension.layout attribute

If this attribute is set and the value is “single”, the chart will not be superimposed (it will not be displayed as a tabbed label) and will be displayed separately (tiled display).

• cfgA.extension.height attribute

This attribute is used to set the height of the chart. The value can be a numeric type, or set to “300px” mode.

• cfgA.extension.col attribute

This attribute is used to set the width of the chart. The page width is divided into 12 units in total, and setting “8” means that the chart occupies 8 units of width.

Run the complete example strategy: - JavaScript version - Python version - C++ version

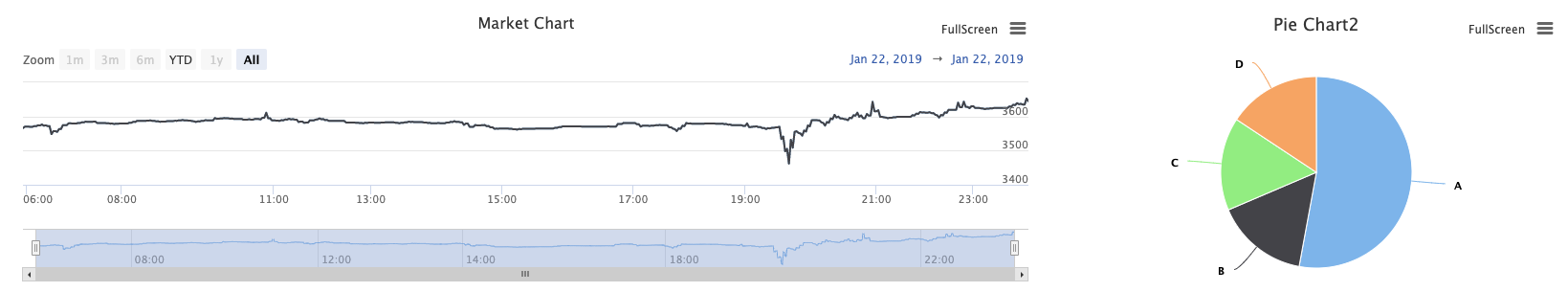

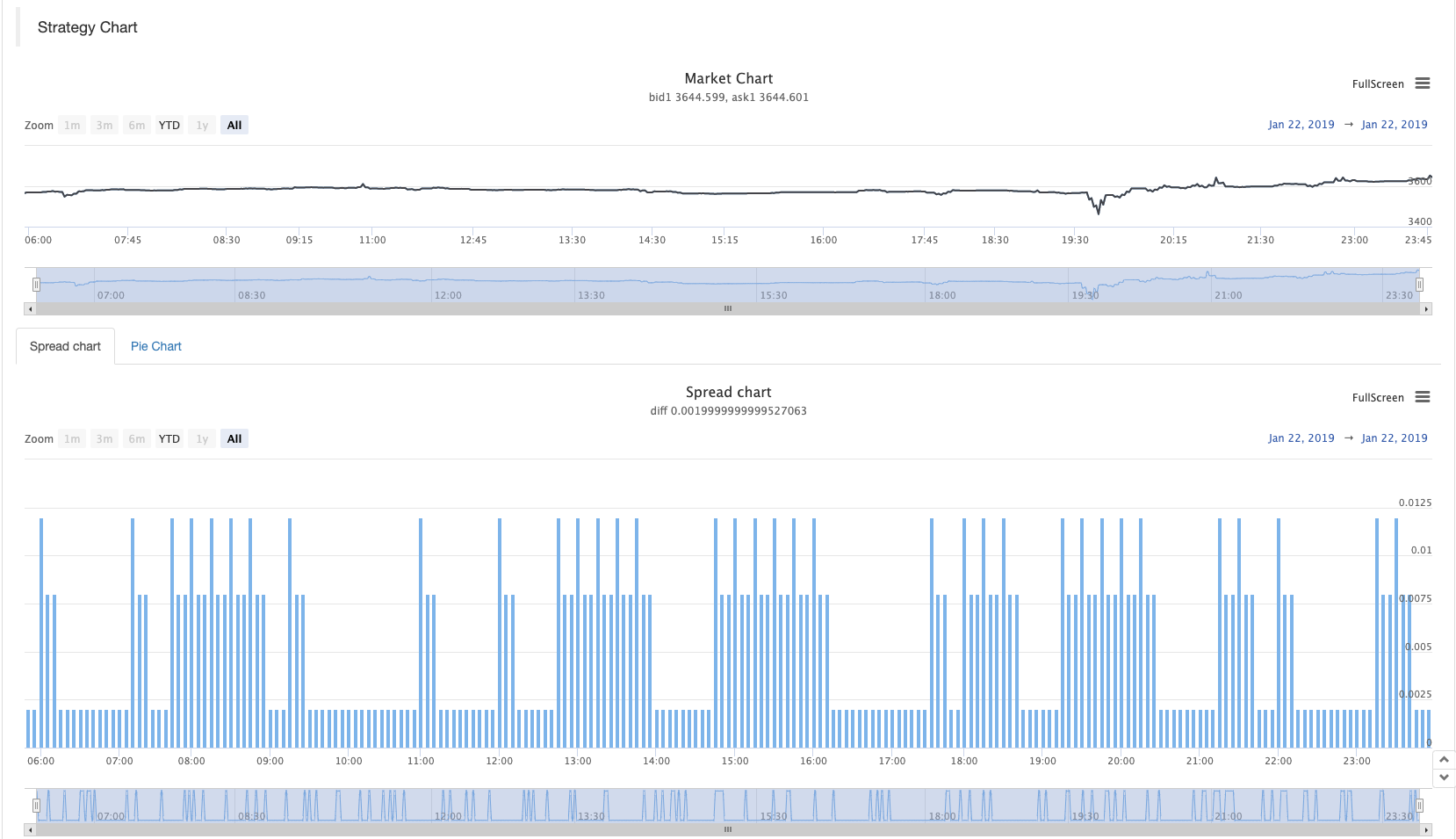

The effect display of the chart configuration objects in the above examples:

• For the data on the chart configuration objects, modify the chart configuration directly, and then update the chart to realize the data update:

For example, in the JavaScript code part of the example (Complete Example):

  cfgC.series[0].data[0][1] = Math.random() * 100
  cfgE.series[0].data[0][1] = Math.random() * 100
  // "Update" is actually equivalent to resetting the configuration of the chart
  chart.update([cfgA, cfgB, cfgC, cfgD, cfgE])

Update the data by add method, such as adding an item to the pie chart, and here follows the JavaScript code part of the example (Complete Example):

  // Add a data point to the pie chart; "add" can only update the data points added by the "add" method, the built-in data points cannot be updated later
  chart.add(3, {
      name: "ZZ",
      y: Math.random() * 100
  })

• Attached usage examples of Chart function

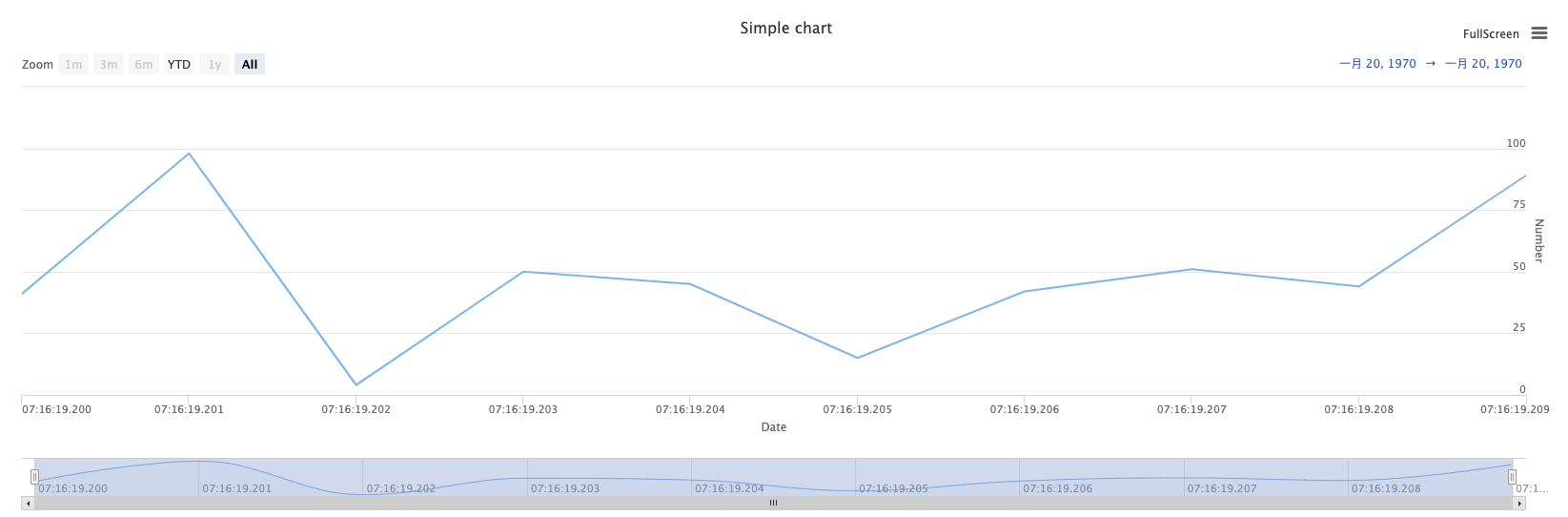

Simple drawing example:

  // This chart is an object in JavaScript language. Before using the "Chart" function, we need to declare an object variable of a chart configuration
  var chart = {
      // It is marked as a general chart; if you are interested, you can change it to false and run it
      __isStock: true,
      // Zoom tool
      tooltip: {xDateFormat: '%Y-%m-%d %H:%M:%S, %A'},
      // Title
      title : { text : 'Spread analysis chart'},
      // Choose a range
      rangeSelector: {
          buttons:  [{type: 'hour',count: 1, text: '1h'}, {type: 'hour',count: 3, text: '3h'}, {type: 'hour', count: 8, text: '8h'}, {type: 'all',text: 'All'}],
          selected: 0,
          inputEnabled: false
      },
      // The horizontal axis of the coordinate axis is: x axis, and the currently set "Types of" is: time
      xAxis: { type: 'datetime'},
      // The vertical axis of the coordinate axis is: y axis, and the default value is adjusted with the data size
      yAxis : {
          // Title
          title: {text: 'Spread'},
          // Whether to enable the right vertical axis
          opposite: false
      },
      // Data system column; this attribute holds each data system column (line, K-line diagram, label, etc.)
      series : [
          // The index is 0, and the data in the data column is stored in the data array.
          {name : "line1", id : "line 1,buy1Price", data : []},
          // The index is 1, and set dashStyle: 'shortdash', namely: set the dashed line
          {name : "line2", id : "line 2,lastPrice", dashStyle : 'shortdash', data : []}
      ]
  }
  function main(){
      // Call the "Chart" function to initialize the chart
      var ObjChart = Chart(chart)
      // Empty
      ObjChart.reset()
      while(true){
          // Get the timestamp of this polling, that is, a millisecond timestamp, used to determine the position of the X axis written to the chart
          var nowTime = new Date().getTime()
          // Get market data
          var ticker = _C(exchange.GetTicker)
          // Get "Buy 1" price from the return value of market data
          var buy1Price = ticker.Buy
          // To obtain the last executed price, in order to avoid the overlap of the 2 lines, we add 1
          var lastPrice = ticker.Last + 1
          // Use timestamp as X value and "Buy 1" price as Y value, and pass them into the data sequence of index 0
          ObjChart.add(0, [nowTime, buy1Price])
          // Same as above
          ObjChart.add(1, [nowTime, lastPrice])
          Sleep(2000)
      }
  }

  import time
  chart = {
      "__isStock" : True,
      "tooltip" : {"xDateFormat" : "%Y-%m-%d %H:%M:%S, %A"},
      "title" : {"text" : "Spread analysis chart"},
      "rangeSelector" : {
          "buttons" : [{"type": "count", "count": 1, "text": "1h"}, {"type": "hour", "count": 3, "text": "3h"}, {"type": "hour", "count": 8, "text": "8h"}, {"type": "all", "text": "All"}],
          "selected": 0,
          "inputEnabled": False
      },
      "xAxis": {"type": "datetime"},
      "yAxis": {
          "title": {"text": "Spread"},
          "opposite": False
      },
      "series": [{
          "name": "line1", "id": "line 1,buy1Price", "data": []
      }, {
          "name": "line2", "id": "line 2,lastPrice", "dashStyle": "shortdash", "data": []
      }]
  }
  def main():
      ObjChart = Chart(chart)
      ObjChart.reset()
      while True:
          nowTime = time.time() * 1000
          ticker = exchange.GetTicker()
          buy1Price = ticker["Buy"]
          lastPrice = ticker["Last"] + 1
          ObjChart.add(0, [nowTime, buy1Price])
          ObjChart.add(1, [nowTime, lastPrice])
          Sleep(2000)

  void main() {
      // When write strategies in C++, try not to declare global variables that are not basic types, so the declaration of the chart configuration objects is in the "main" function
      json chart = R"({
          "__isStock" : true,
          "tooltip" : {"xDateFormat" : "%Y-%m-%d %H:%M:%S, %A"},
          "title" : {"text" : "Spread analysis chart"},
          "rangeSelector" : {
              "buttons" : [{"type": "count", "count": 1, "text": "1h"}, {"type": "hour", "count": 3, "text": "3h"}, {"type": "hour", "count": 8, "text": "8h"}, {"type": "all", "text": "All"}],
              "selected": 0,
              "inputEnabled": false
          },
          "xAxis": {"type": "datetime"},
          "yAxis": {
              "title": {"text": "Spread"},
              "opposite": false
          },
          "series": [{
              "name": "line1", "id": "line 1,buy1Price", "data": []
          }, {
              "name": "line2", "id": "line 2,lastPrice", "dashStyle": "shortdash", "data": []
          }]
      })"_json;
      auto ObjChart = Chart(chart);
      ObjChart.reset();
      while(true) {
          auto nowTime = Unix() * 1000;
          auto ticker = exchange.GetTicker();
          auto buy1Price = ticker.Buy;
          auto lastPrice = ticker.Last + 1.0;
          ObjChart.add(0, {nowTime, buy1Price});
          ObjChart.add(1, {nowTime, lastPrice});
          Sleep(2000);
      }
  }

The example of drawing trigonometric curve:

  // The object used to initialize the chart
  var chart = {
      // Chart title
      title: {text: "line value triggers plotLines value"},
      // The related settings of Y axis
      yAxis: {
          // The horizontal line perpendicular to y axis, used as a trigger line, is an array of structures where multiple trigger lines can be set
          plotLines: [{
              // Trigger line value; set a number, and this line will be displayed in the corresponding numerical position
              value: 0,
              // Set the color of the trigger line
              color: 'red',
              // Width
              width: 2,
              // Labels displayed
              label: {
                  // Label text
                  text: 'Trigger value',
                  // Center label position
                  align: 'center'
              }
          }]
      },
      // The related settings of X axis, and here the setting type is the time axis
      xAxis: {type: "datetime"},
      series: [
          {name: "sin", type: "spline", data: []},
          // This is a more important data system column; you can set multiple data system column, according to the array index control
          {name: "cos", type: "spline", data: []}
      ]
  }
  function main(){
      // Pi
      var pi = 3.1415926535897
      // Variable for recording timestamp
      var time = 0
      // Angle
      var angle = 0
      // Coordinate y value, used to receive sine and cosine values
      var y = 0
      // Call the API to initialize charts with "chart" objects
      var objChart = Chart(chart)
      // When initializing, clear the chart
      objChart.reset()
      // Set the value of the trigger line to 1
      chart.yAxis.plotLines[0].value = 1
      // Loop
      while(true){
          // Get the timestamp of the current moment
          time = new Date().getTime()
          // The angle is increased by 5 degrees every 500ms, and the sine value is calculated
          y = Math.sin(angle * 2 * pi / 360)
          // Write the calculated y value to the data of the corresponding index of the chart; the first parameter of the "add" function is the specified index
          objChart.add(0, [time, y])
          // Calculate the cosine value
          y = Math.cos(angle * 2 * pi / 360)
          objChart.add(1, [time, y])
          // Increase by 5 degrees
          angle += 5
          // Pause for 5 seconds, to avoid drawing too frequently and the data growing too fast
          Sleep(5000)
      }
  }

  import math
  import time
  chart = {
      "title": {"text": "line value triggers plotLines value"},
      "yAxis": {
          "plotLines": [{
              "value": 0,
              "color": "red",
              "width": 2,
              "label": {
                  "text": "Trigger value",
                  "align": "center"
              }
          }]
      },
      "xAxis": {"type": "datetime"},
      "series": [{"name": "sin", "type": "spline", "data": []},
                 {"name": "cos", "type": "spline", "data": []}]
  }
  def main():
      pi = 3.1415926535897
      ts = 0
      angle = 0
      y = 0
      objChart = Chart(chart)
      objChart.reset()
      chart["yAxis"]["plotLines"][0]["value"] = 1
      while True:
          ts = time.time() * 1000
          y = math.sin(angle * 2 * pi / 360)
          objChart.add(0, [ts, y])
          y = math.cos(angle * 2 * pi / 360)
          objChart.add(1, [ts, y])
          angle += 5
          Sleep(5000)

  void main() {
      json chart = R"({
          "title": {"text": "line value triggers plotLines value"},
          "yAxis": {
              "plotLines": [{
                  "value": 0,
                  "color": "red",
                  "width": 2,
                  "label": {
                      "text": "Trigger value",
                      "align": "center"
                  }
              }]
          },
          "xAxis": {"type": "datetime"},
          "series": [{"name": "sin", "type": "spline", "data": []},
                     {"name": "cos", "type": "spline", "data": []}]
      })"_json;

      auto pi = 3.1415926535897;
      auto ts = 0;
      auto angle = 0.0;
      auto y = 0.0;
      auto objChart = Chart(chart);
      objChart.reset();
      chart["yAxis"]["plotLines"][0]["value"] = 1;
      while(true) {
          ts = Unix() * 1000;
          y = sin(angle * 2 * pi / 360);
          objChart.add(0, {ts, y});
          y = cos(angle * 2 * pi / 360);
          objChart.add(1, {ts, y});
          angle += 5;
          Sleep(5000);
      }
  }

In the cpp strategy, the Chart function can also use an encoded string to configure the chart:

  void main () {
      Chart c = Chart(R"EOF({"chart":{"type":"line"},"title":{"text":"Simple chart"},"xAxis":{"title":{"text":"Date"}},"yAxis":{"title":{"text":"Number"}},"series":[{"name":"number","data":[]}]})EOF");
      c.reset();
      for (size_t i = 0; i < 10; i++) {
          // For example, int64 of "sprintf" function has different parameters in 32-bit and 64-bit, so it is best to use "toString" to transfer the platform-related types into strings and then pass
          c.add(0, format("[%s, %d]", toString(Unix() + i).c_str(), rand() % 100));
      }
  }

• A complex example of mixed charts JavaScript Strategy Address

/*backtest
start: 2020-03-11 00:00:00
end: 2020-04-09 23:59:00
period: 1d
exchanges: [{"eid":"Bitfinex","currency":"BTC_USD"}]
*/

var chartCfg = {
    subtitle: {
        text: "subtitle",
    },
    yAxis: [{
        height: "40%",
        lineWidth: 2,
        title: {
            text: 'PnL',
        },
        tickPixelInterval: 20,
        minorGridLineWidth: 1,
        minorTickWidth: 0,
        opposite: true,
        labels: {
            align: "right",
            x: -3,
        }
    }, {
        title: {
            text: 'Profit',
        },
        top: "42%",
        height: "18%",
        offset: 0,
        lineWidth: 2
    }, {
        title: {
            text: 'Vol',
        },
        top: '62%',
        height: '18%',
        offset: 0,
        lineWidth: 2
    }, {
        title: {
            text: 'Asset',
        },
        top: '82%',
        height: '18%',
        offset: 0,
        lineWidth: 2
    }],
    series: [{
        name: 'PnL',
        data: [],
        id: 'primary',
        tooltip: {
            xDateFormat: '%Y-%m-%d %H:%M:%S'
        },
        yAxis: 0
    }, {
        type: 'column',
        lineWidth: 2,
        name: 'Profit',
        data: [],
        yAxis: 1,
    }, {
        type: 'column',
        name: 'Trade',
        data: [],
        yAxis: 2
    }, {
        type: 'area',
        step: true,
        lineWidth: 0,
        name: 'Long',
        data: [],
        yAxis: 2
    }, {
        type: 'area',
        step: true,
        lineWidth: 0,
        name: 'Short',
        data: [],
        yAxis: 2
    }, {
        type: 'line',
        step: true,
        color: '#5b4b00',
        name: 'Asset',
        data: [],
        yAxis: 3
    }, {
        type: 'pie',
        innerSize: '70%',
        name: 'Random',
        data: [],
        center: ['3%', '6%'],
        size: '15%',
        dataLabels: {
            enabled: false
        },
        startAngle: -90,
        endAngle: 90,
    }],
};

function main() {
    let c = Chart(chartCfg);
    let preTicker = null;
    while (true) {
        let t = exchange.GetTicker();

        c.add(0, [t.Time, t.Last]); // PnL
        c.add(1, [t.Time, preTicker ? t.Last - preTicker.Last : 0]); // profit
        let r = Math.random();
        var pos = parseInt(t.Time/86400);
        c.add(2, [t.Time, pos/2]); // Vol
        c.add(3, [t.Time, r > 0.8 ? pos : null]); // Long
        c.add(4, [t.Time, r < 0.8 ? -pos : null]); // Short
        c.add(5, [t.Time, Math.random() * 100]); // Asset
        // update pie
        chartCfg.series[chartCfg.series.length-1].data = [
            ["A", Math.random()*100],
            ["B", Math.random()*100],
         ];
        c.update(chartCfg)
        preTicker = t;
    }
}

'''backtest
start: 2020-03-11 00:00:00
end: 2020-04-09 23:59:00
period: 1d
exchanges: [{"eid":"Bitfinex","currency":"BTC_USD"}]
'''

import random

chartCfg = {
    "subtitle": {
        "text": "subtitle"
    },
    "yAxis": [{
        "height": "40%",
        "lineWidth": 2,
        "title": {
            "text": 'PnL'
        },
        "tickPixelInterval": 20,
        "minorGridLineWidth": 1,
        "minorTickWidth": 0,
        "opposite": True,
        "labels": {
            "align": "right",
            "x": -3
        }
    }, {
        "title": {
            "text": 'Profit'
        },
        "top": "42%",
        "height": "18%",
        "offset": 0,
        "lineWidth": 2
    }, {
        "title": {
            "text": 'Vol'
        },
        "top": '62%',
        "height": '18%',
        "offset": 0,
        "lineWidth": 2
    }, {
        "title": {
            "text": 'Asset'
        },
        "top": '82%',
        "height": '18%',
        "offset": 0,
        "lineWidth": 2
    }],
    "series": [{
        "name": 'PnL',
        "data": [],
        "id": 'primary',
        "tooltip": {
            "xDateFormat": '%Y-%m-%d %H:%M:%S'
        },
        "yAxis": 0
    }, {
        "type": 'column',
        "lineWidth": 2,
        "name": 'Profit',
        "data": [],
        "yAxis": 1
    }, {
        "type": 'column',
        "name": 'Trade',
        "data": [],
        "yAxis": 2
    }, {
        "type": 'area',
        "step": True,
        "lineWidth": 0,
        "name": 'Long',
        "data": [],
        "yAxis": 2
    }, {
        "type": 'area',
        "step": True,
        "lineWidth": 0,
        "name": 'Short',
        "data": [],
        "yAxis": 2
    }, {
        "type": 'line',
        "step": True,
        "color": '#5b4b00',
        "name": 'Asset',
        "data": [],
        "yAxis": 3
    }, {
        "type": 'pie',
        "innerSize": '70%',
        "name": 'Random',
        "data": [],
        "center": ['3%', '6%'],
        "size": '15%',
        "dataLabels": {
            "enabled": False
        },
        "startAngle": -90,
        "endAngle": 90
    }]
}

def main():
    c = Chart(chartCfg)
    preTicker = None
    while True:
        t = exchange.GetTicker()
        c.add(0, [t["Time"], t["Last"]])
        profit = t["Last"] - preTicker["Last"] if preTicker else 0
        c.add(1, [t["Time"], profit])
        r = random.random()
        pos = t["Time"] / 86400
        c.add(2, [t["Time"], pos / 2])
        long = pos if r > 0.8 else None
        c.add(3, [t["Time"], long])
        short = -pos if r < 0.8 else None
        c.add(4, [t["Time"], short])
        c.add(5, [t["Time"], random.random() * 100])

        # update pie
        chartCfg["series"][len(chartCfg["series"]) - 1]["data"] = [
            ["A", random.random() * 100],
            ["B", random.random() * 100]
        ]
        c.update(chartCfg)
        preTicker = t

/*backtest
start: 2020-03-11 00:00:00
end: 2020-04-09 23:59:00
period: 1d
exchanges: [{"eid":"Bitfinex","currency":"BTC_USD"}]
*/

void main() {
    json chartCfg = R"({
        "subtitle": {
            "text": "subtitle"
        },
        "yAxis": [{
            "height": "40%",
            "lineWidth": 2,
            "title": {
                "text": "PnL"
            },
            "tickPixelInterval": 20,
            "minorGridLineWidth": 1,
            "minorTickWidth": 0,
            "opposite": true,
            "labels": {
                "align": "right",
                "x": -3
            }
        }, {
            "title": {
                "text": "Profit"
            },
            "top": "42%",
            "height": "18%",
            "offset": 0,
            "lineWidth": 2
        }, {
            "title": {
                "text": "Vol"
            },
            "top": "62%",
            "height": "18%",
            "offset": 0,
            "lineWidth": 2
        }, {
            "title": {
                "text": "Asset"
            },
            "top": "82%",
            "height": "18%",
            "offset": 0,
            "lineWidth": 2
        }],
        "series": [{
            "name": "PnL",
            "data": [],
            "id": "primary",
            "tooltip": {
                "xDateFormat": "%Y-%m-%d %H:%M:%S"
            },
            "yAxis": 0
        }, {
            "type": "column",
            "lineWidth": 2,
            "name": "Profit",
            "data": [],
            "yAxis": 1
        }, {
            "type": "column",
            "name": "Trade",
            "data": [],
            "yAxis": 2
        }, {
            "type": "area",
            "step": true,
            "lineWidth": 0,
            "name": "Long",
            "data": [],
            "yAxis": 2
        }, {
            "type": "area",
            "step": true,
            "lineWidth": 0,
            "name": "Short",
            "data": [],
            "yAxis": 2
        }, {
            "type": "line",
            "step": true,
            "color": "#5b4b00",
            "name": "Asset",
            "data": [],
            "yAxis": 3
        }, {
            "type": "pie",
            "innerSize": "70%",
            "name": "Random",
            "data": [],
            "center": ["3%", "6%"],
            "size": "15%",
            "dataLabels": {
                "enabled": false
            },
            "startAngle": -90,
            "endAngle": 90
        }]
    })"_json;

    Chart c = Chart(chartCfg);
    Ticker preTicker;
    while(true) {
        auto t = exchange.GetTicker();
        c.add(0, {t.Time, t.Last});
        auto profit = preTicker.Valid ? t.Last - preTicker.Last : 0;
        c.add(1, {t.Time, profit});
        auto r = rand() % 100;
        auto pos = t.Time / 86400.0;
        c.add(2, {t.Time, pos / 2.0});
        auto longPos = r > 0.8 ? pos : NULL;
        c.add(3, {t.Time, longPos});
        auto shortPos = r < 0.8 ? -pos : NULL;
        c.add(4, {t.Time, shortPos});
        c.add(5, {t.Time, rand() % 100});

        // update pie
        json pie = R"([["A", 0], ["B", 0]])"_json;
        pie[0][1] = rand() % 100;
        pie[1][1] = rand() % 100;
        chartCfg["series"][chartCfg["series"].size() - 1]["data"] = pie;

        c.update(chartCfg);
        preTicker = t;
    }
}

Among the charts, the pie chart is a chart without time axis, and the chart configuration needs to be updated directly when updating data. For example, the code in the above example, after updating the data, use c.update(chartCfg) to update the chart as follows:

    // update pie
    chartCfg.series[chartCfg.series.length-1].data = [
        ["A", Math.random()*100],
        ["B", Math.random()*100],
    ];
    c.update(chartCfg)

    # update pie
    chartCfg["series"][len(chartCfg["series"]) - 1]["data"] = [
        ["A", random.random() * 100],
        ["B", random.random() * 100]
    ]
    c.update(chartCfg)

    // update pie
    json pie = R"([["A", 0], ["B", 0]])"_json;
    pie[0][1] = rand() % 100;
    pie[1][1] = rand() % 100;
    chartCfg["series"][chartCfg["series"].size() - 1]["data"] = pie;
    c.update(chartCfg);

Operation Result:

KLineChart(…)

Code for reference:

```js
function main() {
    // Call the KLineChart function to create a chart control object c
    let c = KLineChart({
        overlay: true
    })

    // Use the spot exchange object test to obtain K-line data. If you use the futures exchange object test, you need to set up the contract first.
    let bars = exchange.GetRecords()
    if (!bars) {
        return
    }

    bars.forEach(function(bar, index) {
        c.begin(bar)
        c.barcolor(bar.Close > bar.Open ? 'rgba(255, 0, 0, 0.2)' : 'rgba(0, 0, 0, 0.2)')
        if (bar.Close > bar.Open) {
            c.bgcolor('rgba(0, 255, 0, 0.5)')
        }
        let h = c.plot(bar.High, 'high')
        let l = c.plot(bar.Low, 'low')

        c.fill(h, l, {
            color: bar.Close > bar.Open ? 'rgba(255, 0, 0, 0.2)' : 'rgba(255, 0, 0, 0.2)'
        })
        c.hline(bar.High)
        c.plotarrow(bar.Close - bar.Open)
        c.plotshape(bar.Low, {
            style: 'diamond'
        })
        c.plotchar(bar.Close, {
            char: 'X'
        })
        c.plotcandle(bar.Open*0.9, bar.High*0.9, bar.Low*0.9, bar.Close*0.9)
        if (bar.Close > bar.Open) {
            // long/short/closelong/closeshort
            c.signal("long", bar.High, 1.5)
        } else if (bar.Close < bar.Open) {
            c.signal("closelong", bar.Low, 1.5)
        }
        c.close()
    })
}

def main():
    # Call the KLineChart function to create a chart control object c
    c = KLineChart({
        "overlay": True
    })

    # Use the spot exchange object test to obtain K-line data. If you use the futures exchange object test, you need to set up the contract first.
    bars = exchange.GetRecords()
    if not bars:
        return

    for bar in bars:
        c.begin(bar)
        c.barcolor('rgba(255, 0, 0, 0.2)' if bar.Close > bar.Open else 'rgba(0, 0, 0, 0.2)')
        if bar.Close > bar.Open:
            c.bgcolor('rgba(0, 255, 0, 0.5)')

        h = c.plot(bar.High, 'high')
        l = c.plot(bar.Low, 'low')

        c.fill(h, l, 'rgba(255, 0, 0, 0.2)' if bar.Close > bar.Open else 'rgba(255, 0, 0, 0.2)')
        c.hline(bar.High)
        c.plotarrow(bar.Close - bar.Open)
        c.plotshape(bar.Low, style = 'diamond')
        c.plotchar(bar.Close, char = 'X')
        c.plotcandle(bar.Open*0.9, bar.High*0.9, bar.Low*0.9, bar.Close*0.9)
        if bar.Close > bar.Open:
            # long/short/closelong/closeshort
            c.signal("long", bar.High, 1.5)
        elif bar.Close < bar.Open:
            c.signal("closelong", bar.Low, 1.5)

        c.close()

// Not supported currently

If there must be a chart control object for drawing in the custom drawing area of the strategy, use the function KLineChart to create this object. The parameter of the KLineChart function is a chart configuration structure, the chart structure used in the reference code is very simple {overlay: true}). This chart configuration structure only sets the drawing content to be output on the main chart. If overlay is set to false, the content on the chart is output on the sub-chart. If you need to specify a drawing function to draw on the main chart, you can also specify the parameter overlay as true in the specific function call.

The drawing operation is executed by traversing over the K-line data. The drawing operation must start with a c.begin(bar) function call and end with a c.close() function call. The drawing interface functions of the Pine language supported in the drawing operation are:

• barcolor: Set K-line color

barcolor(color, offset, editable, show_last, title, display)

  c.barcolor(bar.Close > bar.Open ? 'rgba(255, 0, 0, 0.2)' : 'rgba(0, 0, 0, 0.2)')   // Use the example illustrated in the reference code in this example, without giving unnecessary details

  c.barcolor('rgba(255, 0, 0, 0.2)' if bar.Close > bar.Open else 'rgba(0, 0, 0, 0.2)')

• display optional parameters: “none”, “all”

• bgcolor: Fill the background of the K-line with the specified color

bgcolor(color, offset, editable, show_last, title, display, overlay)

  c.bgcolor('rgba(0, 255, 0, 0.5)')

  c.bgcolor('rgba(0, 255, 0, 0.5)')

• displayOptional parameters: “none”, “all”

• plot: Plot a series of data on the chart

plot(series, title, color, linewidth, style, trackprice, histbase, offset, join, editable, show_last, display)

  c.plot(bar.High, 'high')

  h = c.plot(bar.High, 'high')

• style optional parameters: “stepline_diamond”, “stepline”, “cross”, “areabr”, “area”, “circles”, “columns”, “histogram”, “linebr”, “line”

• display optional parameters: “none”, “all”

• fill: Fill the background between two drawings or hlines with the provided color

fill(hline1, hline2, color, title, editable, fillgaps, display)

  let h = c.plot(bar.High, 'high')
  let l = c.plot(bar.Low, 'low')

  c.fill(h, l, {color: bar.Close > bar.Open ? 'rgba(255, 0, 0, 0.2)' : 'rgba(255, 0, 0, 0.2)'})

  h = c.plot(bar.High, 'high')
  l = c.plot(bar.Low, 'low')

  c.fill(h, l, {"color": 'rgba(255, 0, 0, 0.2)' if bar.Close > bar.Open else 'rgba(255, 0, 0, 0.2)'})

• display optional parameters: “none”, “all”

Since the JavaScript language cannot specify the incoming parameters according to the names of function formal parameters, in order to solve this problem, a {key: value} structure can be used to specify the parameter passed in a certain formal parameter name, for example, in the reference code, use {color: bar.Close > bar.Open ? 'rgba(255, 0, 0, 0.2)' : 'rgba(255, 0, 0, 0.2)'} to specify the color parameter of the fill function. If you need to specify parameters with multiple parameter names consecutively, you can use {key1: value1, key2: value2, key3: value3}. For example, in this example, add a parameter specifying a title: {color: bar.Close > bar.Open ? 'rgba(255, 0, 0, 0.2)' : 'rgba(255, 0, 0, 0.2)', title: 'fill'}.

For the color value, you can use the 'rgba(255, 0, 0, 0.2)' method to set, or use the '#FF0000' method to set.

• hline: Renders a horizontal line at a given fixed price level

hline(price, title, color, linestyle, linewidth, editable, display)

  c.hline(bar.High)

  c.hline(bar.High)

• linestyle optional parameters: “dashed”, “dotted”, “solid”

• display optional parameters: “none”, “all”

• plotarrow: Draw up and down arrows on the chart

plotarrow(series, title, colorup, colordown, offset, minheight, maxheight, editable, show_last, display)

  c.plotarrow(bar.Close - bar.Open)

  c.plotarrow(bar.Close - bar.Open)

• display optional parameters: “none”, “all”

• plotshape: Draw visual shapes on the chart

plotshape(series, title, style, location, color, offset, text, textcolor, editable, size, show_last, display)

  c.plotshape(bar.Low, {style: 'diamond'})

  c.plotshape(bar.Low, style = 'diamond')

• style optional parameters: “diamond”, “square”, “label_down”, “label_up”, “arrow_down”, “arrow_up”, “circle”, “flag”, “triangle_down”, “triangle_up”, “cross”, “xcross”

• location optional parameters: “abovebar”, “belowbar”, “top”, “bottom”, “absolute”

• size optional parameters: “10px”, “14px”, “20px”, “40px”, “80px”, compared with the size.tiny, size.small, size.normal, size.large, size.huge in Pine language size.auto is size.small.

• display optional parameters: “none”, “all”

• plotchar: Draw visible shapes on the chart by using any given Unicode character

plotchar(series, title, char, location, color, offset, text, textcolor, editable, size, show_last, display)

  c.plotchar(bar.Close, {char: 'X'})

  c.plotchar(bar.Close, char = 'X')

• location optional parameters: “abovebar”, “belowbar”, “top”, “bottom”, “absolute”

• size optional parameters: “10px”, “14px”, “20px”, “40px”, “80px”, compared with the size.tiny, size.small, size.normal, size.large, size.huge in Pine language size.auto is size.small.

• display optional parameters: “none”, “all”

• plotcandle: Draw a K-line chart on the chart

plotcandle(open, high, low, close, title, color, wickcolor, editable, show_last, bordercolor, display)

  c.plotcandle(bar.Open*0.9, bar.High*0.9, bar.Low*0.9, bar.Close*0.9)

  c.plotcandle(bar.Open*0.9, bar.High*0.9, bar.Low*0.9, bar.Close*0.9)

• displayOptional parameters: “none”, “all”

• signal: Functions that are not available in the Pine language are used here to draw buying and selling signals

signal(direction, price, qty, id)

  c.signal("long", bar.High, 1.5)

  c.signal("long", bar.High, 1.5)

The input parameter "long" indicates the transaction direction, optional "long", "closelong", "short", "closeshort". The incoming parameter bar.High is the Y-axis position of the marker signal. The input parameter 1.5 represents the number of trades of the signal. The fourth parameter can be passed in to replace the text content drawn by default. The default text of the drawn signal marker is the trading direction, for example: "closelong".

For some color, style and other settings used in the above function calls, please refer to Special article on drawing with KLineChart function

LogReset()

LogReset() is used to clear logs. You can pass in an integer parameter to specify the number of recent logs to retain, and clear the rest of the logs. The startup log is counted every time it is started, so if no parameters are passed in, and there is no log output at the start of the strategy, the log will not be displayed at all, waiting for the docker log to return (not an abnormal situation). The function has no return value.

”`js function main() { // Maintain the last 10 logs and clear the rest LogReset(10)
