“市场结构突破与成交量峰值、RSI多重指标交叉策略”是一种结合市场结构(SMC)、成交量突破和相对强弱指数(RSI)的多重指标交易策略。该策略主要通过识别关键的波动点(swing points)来分析市场结构,并在结构突破时结合成交量峰值和RSI指标确认交易信号。策略设计目的是识别潜在的市场反转或突破点,提供更加精确的交易入场时机,减少假突破带来的风险。
该策略的核心原理是通过多重指标的共振来确认交易信号的有效性。策略运作流程如下:
swing_len
控制回溯周期。动态退出机制: 当前策略使用固定持仓周期退出,可以考虑引入更加动态的退出机制:
风险管理完善:
信号质量增强:
多时间周期确认:
机器学习增强:
“市场结构突破与成交量峰值、RSI多重指标交叉策略”是一种综合性强的交易系统,它通过结合市场结构分析、成交量确认和RSI指标过滤,提供了一套系统化的交易方法。该策略的核心优势在于多重指标的共振确认,大大提高了交易信号的可靠性。
策略的主要特点是使用swing points来识别市场关键结构,然后在价格突破这些结构时,结合成交量峰值和RSI指标进行交易确认。这种方法不仅能捕捉市场结构的变化,还能通过成交量和RSI的辅助确认减少假突破的风险。
尽管如此,该策略仍有优化空间,特别是在退出机制、风险管理和信号质量方面。通过引入更加动态的退出策略、完善风险管理系统和增强信号过滤机制,可以进一步提升策略的稳健性和盈利能力。
最重要的是,交易者在使用该策略时应该理解其背后的市场结构理念,而不仅仅是机械地遵循信号。理解市场结构变化的本质,结合成交量和RSI指标的辅助分析,才能真正发挥该策略的潜力。

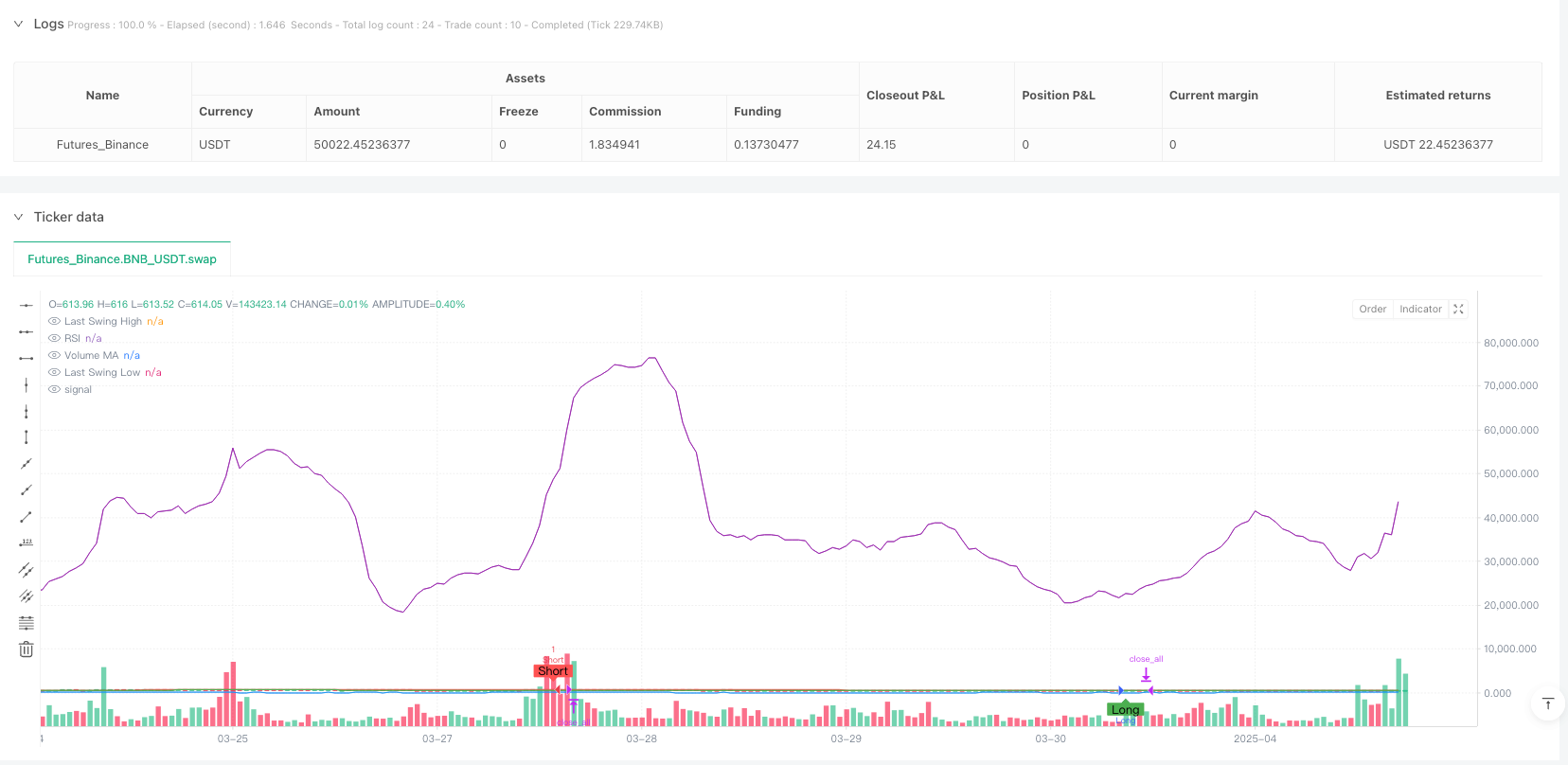

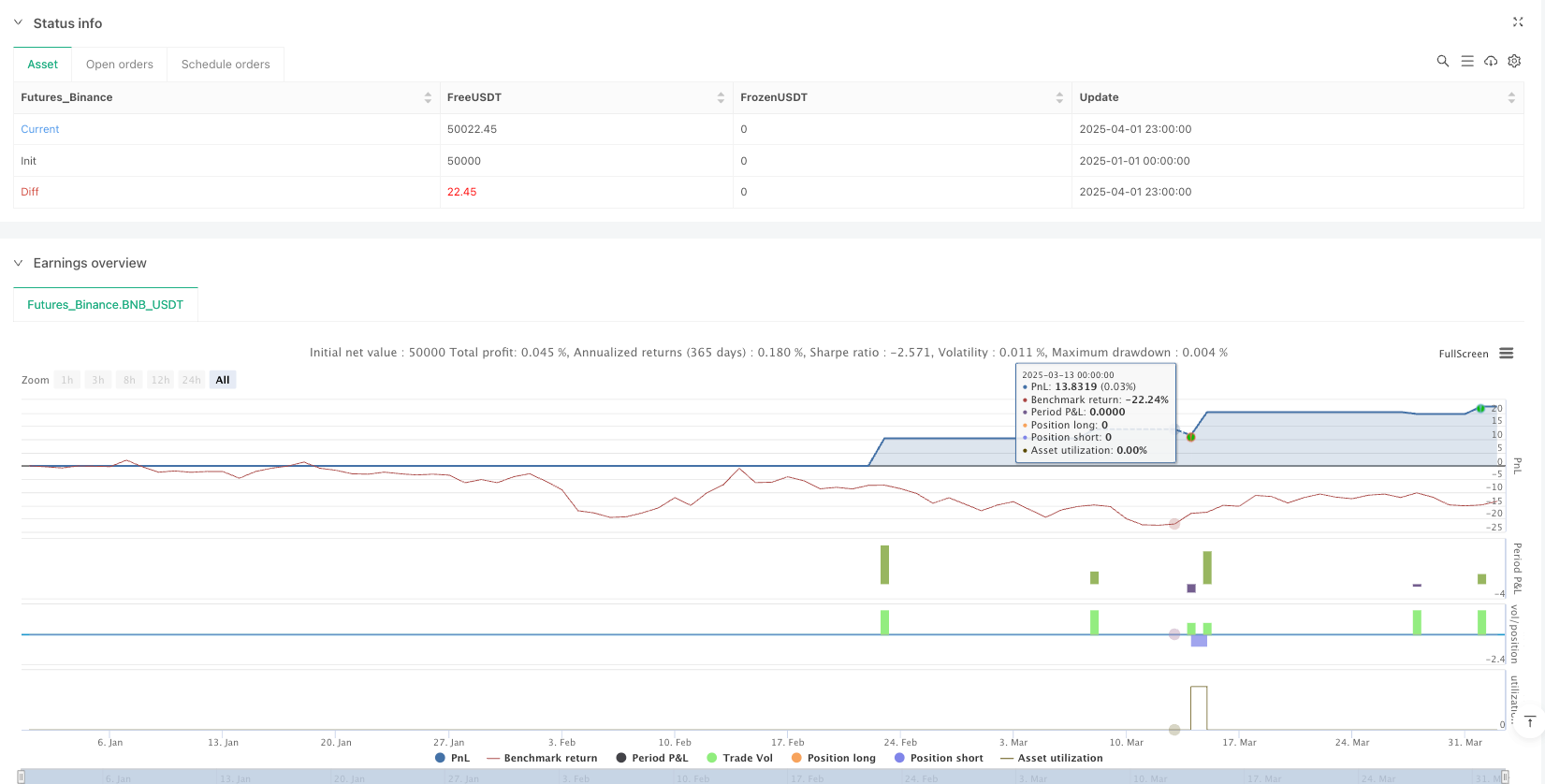

/*backtest
start: 2025-01-01 00:00:00
end: 2025-04-02 00:00:00
period: 1h
basePeriod: 1h
exchanges: [{"eid":"Futures_Binance","currency":"BNB_USDT"}]
*/
//@version=5
strategy("SMC Structure Break with Volume Spike + RSI Confluence", overlay=true, initial_capital=100000, currency=currency.USD)
// ===== INPUTS =====
swing_len = input.int(5, "Swing Lookback Length", minval=2)
vol_len = input.int(20, "Volume MA Length", minval=1)
vol_mult = input.float(2.0, "Volume Spike Multiplier", minval=1.0)
holdBars = input.int(3, "Bars to Hold Trade", minval=1)
rsi_length = input.int(14, "RSI Length", minval=1)
// ===== CALCULATIONS =====
// Calculate average volume and volume spike condition
vol_avg = ta.sma(volume, vol_len)
vol_spike = volume > vol_avg * vol_mult
// Calculate RSI value
rsi_val = ta.rsi(close, rsi_length)
// Detect swing highs and swing lows using pivot functions
pivot_high = ta.pivothigh(high, swing_len, swing_len)
pivot_low = ta.pivotlow(low, swing_len, swing_len)
// Use persistent variables to store the last confirmed swing high and swing low
var float last_swing_high = na
var float last_swing_low = na
if not na(pivot_high)
last_swing_high := pivot_high
if not na(pivot_low)
last_swing_low := pivot_low
// ===== ENTRY CONDITIONS =====
// Long entry: structure break above last swing low, volume spike, and RSI below 50
long_condition = not na(last_swing_low) and (close > last_swing_low) and (close[1] <= last_swing_low) and vol_spike and (rsi_val < 50)
// Short entry: structure break below last swing high, volume spike, and RSI above 50
short_condition = not na(last_swing_high) and (close < last_swing_high) and (close[1] >= last_swing_high) and vol_spike and (rsi_val > 50)
// Persistent variable to store the bar index when a trade is entered
var int entryBar = na
// Reset entryBar when flat
if strategy.position_size == 0
entryBar := na
// Execute trades only when no position is held
if strategy.position_size == 0
if long_condition
strategy.entry("Long", strategy.long)
entryBar := bar_index
if short_condition
strategy.entry("Short", strategy.short)
entryBar := bar_index
// ===== EXIT LOGIC =====
// Exit the trade after the specified number of bars (holdBars) since entry.
if strategy.position_size != 0 and not na(entryBar)
if (bar_index - entryBar) >= holdBars
strategy.close_all("Hold Time Reached")
entryBar := na
// ===== PLOTS =====
plot(last_swing_high, color=color.red, title="Last Swing High")
plot(last_swing_low, color=color.green, title="Last Swing Low")
plot(vol_avg, title="Volume MA", color=color.purple)
plot(rsi_val, title="RSI", color=color.blue)
plotshape(long_condition, title="Long Signal", location=location.belowbar, color=color.green, style=shape.labelup, text="Long")
plotshape(short_condition, title="Short Signal", location=location.abovebar, color=color.red, style=shape.labeldown, text="Short")
