策略原理
策略原理为非常简单的,OKEX合约跨期对冲,仓位控制设计方面,设计为差价网格对冲。 策略定义两个合约,A合约,B合约。可以合约设置不同的合约代码,进行对冲。 例如,设置 A 合约为季度合约,B合约为当周合约(也可以设置 A 为近期合约,B为远期合约,其它定义就是相反的)。 对冲操作即分为 做空A合约(季度),做多B合约(类似 商品期货中跨期套利的做空远期合约,做多近期合约,进行正套) 做多A合约,做空B合约(类似商品期货中的做空近期,做多远期,进行反套)
代码语言 策略编写代码使用C++语言,具有速度快的性能优势。
行情驱动: 行情驱动采用OKEX websocket 接口接受交易所推送行情,最新行情获取较为及时,行情数据使用数据量不大的实时tick数据, 对于行情响应速度有不小提升。对于tick 数据,策略专门构造了一个K线生成器,用来对获取到的tick数据计算后的合约差价,进行K线合成。 策略对冲操作的开仓、平仓 均由该K线生成器类对象生成的数据驱动。
仓位控制 仓位控制采用类似 「波菲纳契」数列的对冲仓位比例,进行控制。 实现差价越大,套利对冲数量相对增加,对仓位进行分散,从而把握住小差价波动小仓位,大差价波动仓位适当增大。
平仓:止损止盈 固定的止盈差价,止损差价。 持仓差价到达止盈位置、止损位置即进行止盈、止损。
入市、离市 周期设计 参数 NPeriod 控制的周期对策略的开仓平仓进行一定的动态控制。
仓位平衡系统、订单检测系统 策略有专门的定期检测 平衡系统。 订单检测系统。
策略扩展 策略代码设计耦合度较低,可扩展为商品期货对冲,或者进行进一步优化,修改。

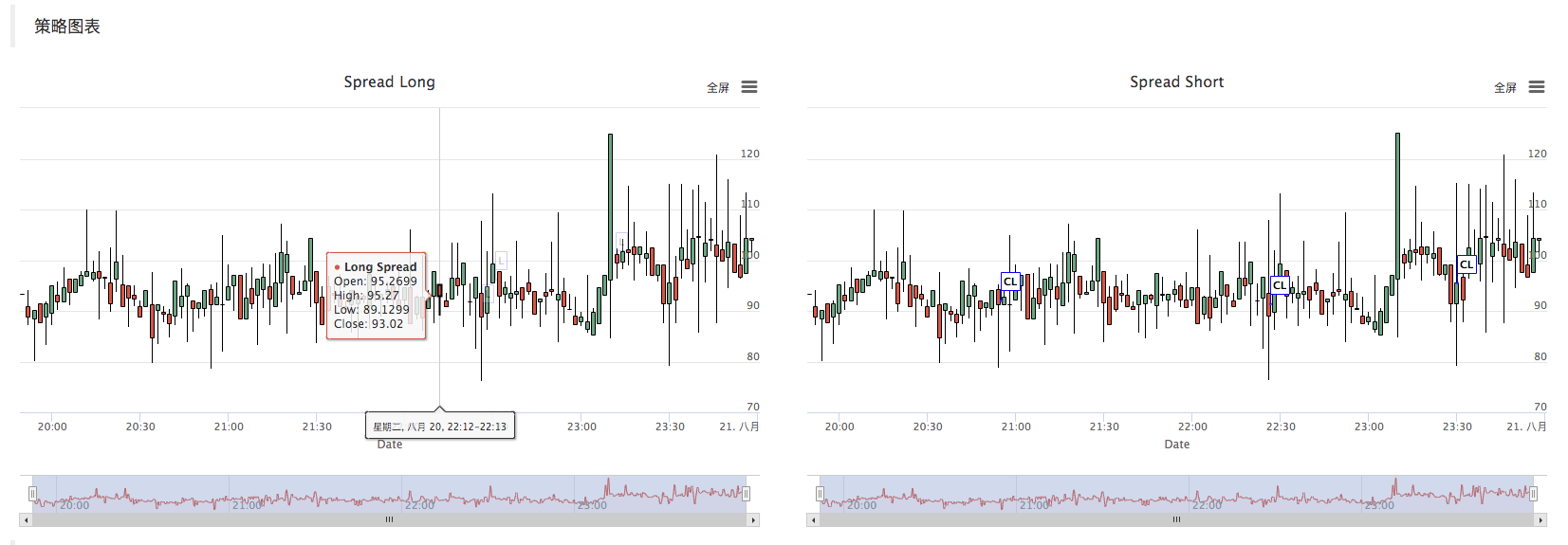

策略图表 策略自动生成差价 K线图表,标记相关交易信息。
/*backtest start: 2019-07-22 00:00:00 end: 2019-08-21 00:00:00 period: 1m exchanges: [{"eid":"Futures_OKCoin","currency":"BTC_USD","stocks":0.1,"fee":[0.02,0.05]}] args: [["InstrumentB","quarter"],["NPeriod",200],["LeavePeriod",100],["AddMax",3],["StopLoss",20],["StopWin",50],["OpenAmount",2]] */ enum State { STATE_NA, STATE_IDLE, STATE_HOLD_LONG, STATE_HOLD_SHORT, }; string replace(string s, const string from, const string& to) { if(!from.empty()) for(size_t pos = 0; (pos = s.find(from, pos)) != std::string::npos; pos += to.size()) s.replace(pos, from.size(), to); return s; } class BarFeeder { public: BarFeeder(int period) : _period(period) { _rs.Valid = true; } void feed(double price, Chart *c=nullptr, int chartIdx=0) { uint64_t epoch = uint64_t(Unix() / _period) * _period * 1000; bool newBar = false; if (_rs.size() == 0 || _rs[_rs.size()-1].Time < epoch) { Record r; r.Time = epoch; r.Open = r.High = r.Low = r.Close = price; _rs.push_back(r); if (_rs.size() > 2000) { _rs.erase(_rs.begin()); } newBar = true; } else { Record &r = _rs[_rs.size() - 1]; r.High = max(r.High, price); r.Low = min(r.Low, price); r.Close = price; } auto bar = _rs[_rs.size()-1]; json point = {bar.Time, bar.Open, bar.High, bar.Low, bar.Close}; if (c != nullptr) { if (newBar) { c->add(chartIdx, point); c->reset(1000); } else { c->add(chartIdx, point, -1); } } } Records & get() { return _rs; } private: int _period; Records _rs; }; class Hedge { public: Hedge() { _isCover = true; _needCheckOrder = true; _st = STATE_NA; for (int i = 0; i < AddMax + 1; i++) { if (_addArr.size() < 2) { _addArr.push_back((i+1)*OpenAmount); } _addArr.push_back(_addArr[_addArr.size()-1] + _addArr[_addArr.size()-2]); } _cfgStr = R"EOF( [{ "extension": { "layout": "single", "col": 6, "height": "500px"}, "rangeSelector": {"enabled": false}, "tooltip": {"xDateFormat": "%Y-%m-%d %H:%M:%S, %A"}, "plotOptions": {"candlestick": {"color": "#d75442", "upColor": "#6ba583"}}, "chart":{"type":"line"}, "title":{"text":"Spread Long"}, "xAxis":{"title":{"text":"Date"}}, "series":[ {"type":"candlestick", "name":"Long Spread","data":[], "id":"dataseriesA"}, {"type":"flags","data":[], "onSeries": "dataseriesA"} ] }, { "extension": { "layout": "single", "col": 6, "height": "500px"}, "rangeSelector": {"enabled": false}, "tooltip": {"xDateFormat": "%Y-%m-%d %H:%M:%S, %A"}, "plotOptions": {"candlestick": {"color": "#d75442", "upColor": "#6ba583"}}, "chart":{"type":"line"}, "title":{"text":"Spread Short"}, "xAxis":{"title":{"text":"Date"}}, "series":[ {"type":"candlestick", "name":"Long Spread","data":[], "id":"dataseriesA"}, {"type":"flags","data":[], "onSeries": "dataseriesA"} ] } ] )EOF"; _c.update(_cfgStr); _c.reset(); }; State getState(string &symbolA, Depth &depthA, string &symbolB, Depth &depthB) { if (!_needCheckOrder && _st != STATE_NA) { return _st; } //Log("sync orders"); auto orders = exchange.GetOrders(); if (!orders.Valid) { return STATE_NA; } if (orders.size() > 0) { for (auto &order : orders) { exchange.CancelOrder(order.Id); } return STATE_NA; } Sleep(500); //Log("sync positions"); auto positions = exchange.GetPosition(); if (!positions.Valid) { return STATE_NA; } // cache orders and positions; _needCheckOrder = false; if (positions.size() == 0) { //Log("Position is empty"); return STATE_IDLE; } State st[2] = {STATE_IDLE, STATE_IDLE}; double holdAmount[2] = {0, 0}; double holdPrice[2] = {}; for (auto &pos : positions) { int idx = -1; if (pos.ContractType == symbolA) { idx = 0; } else if (pos.ContractType == symbolB) { idx = 1; } if (idx >= 0) { holdPrice[idx] = pos.Price; holdAmount[idx] += pos.Amount; st[idx] = pos.Type == PD_LONG || pos.Type == PD_LONG_YD ? STATE_HOLD_LONG : STATE_HOLD_SHORT; } } if (holdAmount[0] > holdAmount[1]) { st[1] = STATE_IDLE; } else if (holdAmount[0] < holdAmount[1]) { st[0] = STATE_IDLE; } if (st[0] != STATE_IDLE && st[1] != STATE_IDLE) { // update _holdPrice = _N(holdPrice[1] - holdPrice[0], 4); _holdAmount = holdAmount[0]; return st[0]; } else if (st[0] == STATE_IDLE && st[1] == STATE_IDLE) { return STATE_IDLE; } else { double amount = abs(holdAmount[0] - holdAmount[1]); auto idx_fat = st[0] == STATE_IDLE ? 1 : 0; if (_isCover) { exchange.SetContractType(st[0] == STATE_IDLE ? symbolB : symbolA); if (st[idx_fat] == STATE_HOLD_LONG) { exchange.SetDirection("closebuy"); exchange.Sell((st[0] == STATE_IDLE ? depthB.Bids[0].Price: depthA.Bids[0].Price)-SlidePrice, amount); } else { exchange.SetDirection("closesell"); exchange.Buy((st[0] == STATE_IDLE ? depthB.Asks[0].Price : depthA.Asks[0].Price)+SlidePrice, amount); } } else { exchange.SetContractType(st[0] == STATE_IDLE ? symbolA : symbolB); if (st[idx_fat] == STATE_HOLD_LONG) { exchange.SetDirection("sell"); exchange.Sell((st[0] == STATE_IDLE ? depthA.Bids[0].Price : depthB.Bids[0].Price)-SlidePrice, amount); } else { exchange.SetDirection("buy"); exchange.Buy((st[0] == STATE_IDLE ? depthA.Asks[0].Price : depthB.Asks[0].Price)+SlidePrice, amount); } } _needCheckOrder = true; return STATE_NA; } Log(positions); Panic("WTF"); } bool Loop(string &symbolA, Depth &depthA, string &symbolB, Depth &depthB, string extra="") { _loopCount++; auto diffLong = _N(depthB.Bids[0].Price - depthA.Asks[0].Price, 4); auto diffShort = _N(depthB.Asks[0].Price - depthA.Bids[0].Price, 4); _feederA.feed(diffLong, &_c, 0); _feederB.feed(diffShort, &_c, 2); auto barsA = _feederA.get(); auto barsB = _feederB.get(); if (barsA.size() < max(LeavePeriod, NPeriod) + 2) { LogStatus(_D(), "Calc His", barsA.size()); return true; } bool expired = false; auto seconds = Unix(); if (seconds - _lastCache > 600) { _needCheckOrder = true; expired = true; } State st = getState(symbolA, depthA, symbolB, depthB); if (st == STATE_NA) { return true; } if (st == STATE_IDLE) { _holdPrice = 0; } // cache st _st = st; if (expired) { _lastCache = seconds; } if (Unix() - seconds > 5) { Log("skip this tick"); return true; } LogStatus(_D(), "State: ", _state_desc[st], "Hold:", _holdPrice, "Long:", diffLong, "Short:", diffShort, "Loop:", _loopCount, extra); if (st == STATE_IDLE && _isCover) { auto account = exchange.GetAccount(); if (account.Valid) { double profit = _N(exchange.GetName() == "Futures_OKCoin" ? account.Stocks + account.FrozenStocks : account.Balance + account.FrozenBalance, 8); LogProfit(profit, _hedgeCount > 0 ? format("Net: %f @", profit) : ""); } _isCover = false; return true; } auto ratio = abs(diffLong - diffShort); bool condOpenLong = (st == STATE_IDLE || st == STATE_HOLD_LONG) && (diffLong - _countOpen * max(1.0, _holdPrice * 0.1)) > TA.Highest(barsA.High(), NPeriod) && _countOpen < AddMax; bool condOpenShort = (st == STATE_IDLE || st == STATE_HOLD_SHORT) && (diffShort + _countOpen * max(1.0, _holdPrice * 0.1)) < TA.Lowest(barsB.Low(), NPeriod) && _countOpen < AddMax; bool condCoverLong = false; bool condCoverShort = false; bool isLeave = false; bool isStopLoss = false; bool isStopWin = false; if (st == STATE_HOLD_LONG) { auto leavePrice = (diffShort + _countCover + ratio); isLeave = leavePrice < TA.Lowest(barsB.Low(), LeavePeriod); if (!isLeave) { isStopLoss = diffShort - _holdPrice >= StopLoss; if (!isStopLoss) { isStopWin = _holdPrice - diffShort >= StopWin; if (isStopWin) { Log("Stop Win", "HOLD:", _holdPrice, "SHORT:", diffShort); } } else { Log("StopLoss", "HOLD:", _holdPrice, "SHORT:", diffShort); } } else { Log("Leave normally", "LeavePrice:", leavePrice); } condCoverLong = isLeave || isStopLoss || isStopWin; } else if (st == STATE_HOLD_SHORT) { auto leavePrice = (diffLong - _countCover - ratio); isLeave = leavePrice > TA.Highest(barsA.High(), NPeriod); if (!isLeave) { isStopLoss = _holdPrice - diffLong >= StopLoss; if (!isStopLoss) { isStopWin = diffLong - _holdPrice >= StopWin; if (isStopWin) { Log("Stop Win", "HOLD:", _holdPrice, "LONG:", diffLong); } } else { Log("StopLoss", "HOLD:", _holdPrice, "LONG:", diffLong); } } else { Log("Leave normally", "LeavePrice:", leavePrice); } condCoverShort = isLeave || isStopLoss || isStopWin; } string action, color; double opPrice; int chartIdx = 0; if (condOpenLong) { // Must Increase if (_countOpen > 0 && diffLong <= _holdPrice) { return STATE_IDLE; } _isCover = false; _countOpen++; _countCover = 0; _holdPrice = diffLong; auto amount = _addArr[_countOpen]; if (_countOpen > 0) { Log("Add Position Long", _countOpen); } exchange.SetContractType(symbolB); exchange.SetDirection("sell"); exchange.Sell(depthB.Bids[0].Price-SlidePrice, amount); exchange.SetContractType(symbolA); exchange.SetDirection("buy"); exchange.Buy(depthA.Asks[0].Price+SlidePrice, amount); action = "L"; color = "blue"; opPrice = diffLong; chartIdx = 1; } else if (condOpenShort) { // Must Decrease if (_countOpen > 0 && diffShort >= _holdPrice) { return STATE_IDLE; } _isCover = false; _countOpen++; _countCover = 0; _holdPrice = diffShort; auto amount = _addArr[_countOpen]; if (_countOpen > 0) { Log("Add Position Short", _countOpen); } exchange.SetContractType(symbolA); exchange.SetDirection("sell"); exchange.Sell(depthA.Bids[0].Price-SlidePrice, amount); exchange.SetContractType(symbolB); exchange.SetDirection("buy"); exchange.Buy(depthB.Asks[0].Price+SlidePrice, amount); action = "S"; color = "red"; opPrice = diffShort; chartIdx = 3; } else if (condCoverLong) { _isCover = true; _countOpen = 0; _countCover++; _hedgeCount++; if (_countCover > 0) { Log("Cover Position Long", _countCover); } exchange.SetContractType(symbolB); exchange.SetDirection("closesell"); exchange.Buy(depthB.Asks[0].Price+SlidePrice, _holdAmount); exchange.SetContractType(symbolA); exchange.SetDirection("closebuy"); exchange.Sell(depthA.Bids[0].Price-SlidePrice, _holdAmount); action = "CL"; color = "blue"; opPrice = diffShort; chartIdx = 3; } else if (condCoverShort) { _hedgeCount++; _isCover = true; _countOpen = 0; _countCover++; if (_countCover > 0) { Log("Cover Position Short", _countCover); } exchange.SetContractType(symbolA); exchange.SetDirection("closesell"); exchange.Buy(depthA.Asks[0].Price+SlidePrice, _holdAmount); exchange.SetContractType(symbolB); exchange.SetDirection("closebuy"); exchange.Sell(depthB.Bids[0].Price-SlidePrice, _holdAmount); action = "CS"; color = "blue"; opPrice = diffLong; chartIdx = 1; } else { return true; } _needCheckOrder = true; _c.add(chartIdx, {{"x", UnixNano()/1000000}, {"title", action}, {"text", format("diff: %f", opPrice)}, {"color", color}}); Log(st, "Long:", diffLong, "Short:", diffShort, "Hold:", _holdPrice); return true; } private: vector<double> _addArr; string _state_desc[4] = {"NA", "IDLE", "LONG", "SHORT"}; int _countOpen = 0; int _countCover = 0; int _lastCache = 0; int _hedgeCount = 0; int _loopCount = 0; double _holdPrice = 0; BarFeeder _feederA = BarFeeder(DPeriod); BarFeeder _feederB = BarFeeder(DPeriod); State _st = STATE_NA; string _cfgStr; double _holdAmount = 0; bool _isCover = false; bool _needCheckOrder = true; Chart _c = Chart("{}"); }; inline unsigned char toHex(unsigned char x) { return x > 9 ? x + 55 : x + 48; } std::string urlencode(const std::string& str) { std::string strTemp = ""; size_t length = str.length(); for (size_t i = 0; i < length; i++) { if (isalnum((unsigned char)str[i]) || (str[i] == '-') || (str[i] == '_') || (str[i] == '.') || (str[i] == '~')) strTemp += str[i]; else if (str[i] == ' ') strTemp += "+"; else { strTemp += '%'; strTemp += toHex((unsigned char)str[i] >> 4); strTemp += toHex((unsigned char)str[i] % 16); } } return strTemp; } uint64_t _Time(string &s) { tm t_init; t_init.tm_year = 70; t_init.tm_mon = 0; t_init.tm_mday = 1; t_init.tm_hour = 0; t_init.tm_min = 0; t_init.tm_sec = 0; tm t; int year, month, day, hour, minute, second, ms; sscanf(s.c_str(), "%d-%d-%dT%d:%d:%d.%dZ", &year, &month, &day, &hour, &minute, &second, &ms); t.tm_year = year - 1900; t.tm_mon = month - 1; t.tm_mday = day; t.tm_hour = hour; t.tm_min = minute; t.tm_sec = second; t.tm_isdst = 0; return uint64_t(mktime(&t))*1000+ms-uint64_t(mktime(&t_init))*1000; } void main() { // exchange.IO("base", "https://www.okex.me"); // 测试 if (IsSetProxy) { exchange.SetProxy(Proxy); } LogReset(); LogProfitReset(); SetErrorFilter("ready|timeout|500"); Log("Init OK"); string symbolA = InstrumentA; string symbolB = InstrumentB; Hedge h; if (IsVirtual()) { while (true) { exchange.SetContractType(symbolA); auto depthA = exchange.GetDepth(); if (depthA.Valid) { exchange.SetContractType(symbolB); auto depthB = exchange.GetDepth(); if (depthB.Valid) { h.Loop(symbolA, depthA, symbolB, depthB); } } } return; } if (exchange.GetName() != "Futures_OKCoin") { Panic("only support Futures_OKCoin"); } string realSymbolA = exchange.SetContractType(symbolA)["instrument"]; string realSymbolB = exchange.SetContractType(symbolB)["instrument"]; string qs = urlencode(json({{"op", "subscribe"}, {"args", {"futures/depth5:" + realSymbolA, "futures/depth5:" + realSymbolB}}}).dump()); Log("try connect to websocket"); // wss://real.OKEx.com:8443/ws/v3 auto ws = Dial("wss://real.okex.com:8443/ws/v3|compress=gzip_raw&mode=recv&reconnect=true&payload="+qs); // auto ws = Dial("wss://real.okex.me:8443/ws/v3|compress=gzip_raw&mode=recv&reconnect=true&payload="+qs); Log("connect to websocket success"); Depth depthA, depthB; auto fillDepth = [](json &data, Depth &d) { d.Valid = true; d.Asks.clear(); d.Asks.push_back({atof(string(data["asks"][0][0]).c_str()), atof(string(data["asks"][0][1]).c_str())}); d.Bids.clear(); d.Bids.push_back({atof(string(data["bids"][0][0]).c_str()), atof(string(data["bids"][0][1]).c_str())}); }; string timeA; string timeB; while (true) { auto buf = ws.read(); // Log("buf:", buf); // 测试 json obj; try { obj = json::parse(buf); } catch (json::parse_error& e) { Log(buf); Log(e.what()); continue; } if (obj["data"].size() == 0) { continue; } auto data = obj["data"][0]; string ins = data["instrument_id"]; if (ins == realSymbolA) { fillDepth(data, depthA); timeA = data["timestamp"]; } else if (ins == realSymbolB) { fillDepth(data, depthB); timeB = data["timestamp"]; } if (depthA.Valid && depthB.Valid) { auto diffA = uint64_t(UnixNano()/1000000)-_Time(timeA); auto diffB = uint64_t(UnixNano()/1000000)-_Time(timeB); if (diffA > MaxDelay || diffB > MaxDelay) { continue; } h.Loop(symbolA, depthA, symbolB, depthB, format("market delay (ms): %d, %d", diffA, diffB)); } } }
小正 想問一下 跑實盤是 圖能顯示 但跑了一會一直跳出 Exchange_GetOrders: 429: {"error_message":"Too Many Requests","code":30014,"error_code":"30014","message":"Too Many Requests"} Exchange_GetOrders: 400: {"error_message":"Coin type wrong","code":30031,"error_code":"30031","message":"Coin type wrong"} 是什麼原因呢
AIlin /upload/asset/bb5df259b6a8148b1f65.png 梦大,从昨天中午跑到晚上没下单,从晚上又跑到现在还是没下单 是不能直接实盘吗?0.0
李笑松 回测实盘都报json解析错误
elvis1213 /upload/asset/14bc485151de321c0a6a1.jpg 跑了一段时间,突然又出问题了
elvis1213 麻烦大神帮我看下,现在以启动就报这个错,而且瞬间几十页的日志 /upload/asset/14bfcf6f9da5f49807e68.jpg
elvis1213 一直报这个错误 /upload/asset/14b9d3530ce1a60bde3ca.jpg ,可是交易所选的是OKEX期货
轻轻的云 /upload/asset/5a8be467dae6c9a52b7d.jpg 梦大,前面跑的好好的,然后就出来这个了,该怎么处理啊?谢谢
wyzcb 这个策略支持EOS期货吗?
空军永不为奴 [json.exception.type_error.305] cannot use operator[] with a string argument with boolean、 报这个,需要怎么解决
hardmy exchange.SetContractType(symbolA) 这个函数报错,返回的是bool类型。请问如何解决?
发明者量化-小小梦 第一个报错是 Coin type wrong , 检查是不是交易对,币种什么地方设置错了。第二个错误是由于第一个错误,导致频繁重试,超过交易所接口访问频率限制了。一个服务器上跑的机器人如果都是访问一个交易所,很容易超过频率限制,这个也要注意下。
发明者量化-小小梦 代码,你调试下,看ws接口read 后数据是什么。找下问题,我这测试正常。
AIlin 是服务器的问题吗?可是这个服务器在交易终端可以正常在okex交易啊
发明者量化-小小梦 那说明网络问题。没有连接到交易所。没有数据推送过来。
AIlin 没有K线 只有个策略图表 /upload/asset/ba842a27a3766766bf54.png
发明者量化-小小梦 机器人运行时,页面上图表出来了么? 图表K线出来了就是正常的,是没有触发交易,如果图表没出来,说明行情问题,要检查下。
发明者量化-小小梦 是策略调整了,您重新复制一下这个策略,可以跑通了,测试了。
李笑松 看了下okex接口没改啊
发明者量化-小小梦 这个策略不支持回测,因为是基于交易所WS接口的,实盘的时候看下OKEX 是不是WS 接口端口改了,在策略代码里面设置一下就可以了。
发明者量化-小小梦 这个完整的信息发下, 应该是解析JSON 的时候 交易所ws接口返回的数据异常导致的。
elvis1213 已经解决了,ip的问题
发明者量化-小小梦 OKEX WS 接口地址 好像改了, 要去OKEX 文档上 看下,现在是什么地址 填写上去 就可以了, 策略里面Dial函数 填写的地址。
elvis1213 感谢
发明者量化-小小梦 这个策略 主要用来学习 ,实盘慎用,建议看明白代码,理解原理,根据自己交易习惯 加以优化改造。
elvis1213 感谢大神,已经部署成功了!
发明者量化-小小梦 建议使用私有托管者服务器。公共服务器 只是用来 练习、测试的。
elvis1213 交易所选的是OKEX期货 难道跟服务器有关系吗,我选的是公用服务器 /upload/asset/14b2c038dcb23dfa93b8b.jpg
发明者量化-小小梦 应该是配置交易所对象的时候,选择成现货了。重新配置一下试试,选择的时候选择: /upload/asset/178df7ad9e03924f4dda.png
轻轻的云 好的,谢谢梦大,我绑定IP试试。。。。
发明者量化-小小梦 这个不是报错,这个是WS 接口数据异常了,策略打印的异常信息。
发明者量化 更新托管就能解决
发明者量化-小小梦 这个不是报错, 是捕获异常后,打印的信息吧,是蓝色的日志吧。 如果不需要可以在代码中删除这行输出。 或者是 托管者比较老,JSON 处理这块的问题。 更新下托管者就可以了。
发明者量化-小小梦 报错信息 截图看下,或者 信息复制粘贴发下。估计是传错参数了。
