TrendHunter w/MF Multi-Timeframe Trend Strategy

Author: ChaoZhang, Date: 2024-03-15 16:01:54
Tags:


Overview

TrendHunter w/MF Multi-Timeframe Trend Strategy is a trend-following strategy based on the comprehensive analysis of multiple technical indicators across multiple timeframes. This strategy takes into account factors such as Ichimoku Cloud, Moving Averages, SuperTrend, WaveTrend, and MoneyFlow, using strict conditions to determine entry points and capture the main trends of the market.

Strategy Principle

The core principle of this strategy is the comprehensive analysis of multiple technical indicators across multiple timeframes. Specifically:

  1. Ichimoku Cloud: By analyzing the relative position of price and cloud, as well as the relative position of moving averages and cloud, the current market trend is determined. When the price is above the cloud and the moving average is also above the cloud, it is considered an uptrend; otherwise, it is considered a downtrend.

  2. SuperTrend: By analyzing the relative position of price and SuperTrend, the current market trend is confirmed. When the price is above the SuperTrend, it is considered an uptrend; otherwise, it is considered a downtrend.

  3. WaveTrend: By analyzing the direction and position of the WaveTrend indicator, the current market trend is determined. When the WaveTrend is rising and has not reached the overbought zone, it is considered an uptrend; when the WaveTrend is falling and has not reached the oversold zone, it is considered a downtrend.

  4. MoneyFlow: By analyzing the state of the MoneyFlow indicator, the current market trend is confirmed. When the MoneyFlow is positive, it is considered an uptrend; otherwise, it is considered a downtrend.

For long positions, the strategy requires the price to be above the cloud, the moving average to be above the cloud, the SuperTrend to be up, the WaveTrend to be rising and not in the overbought zone, and the MoneyFlow to be positive. The opposite applies for short positions. This strict filtering based on multiple indicators across multiple timeframes can effectively avoid frequent trading in range-bound markets, thereby improving the stability and reliability of the strategy.

Advantage Analysis

  1. Comprehensive judgment based on multiple indicators, high reliability: This strategy comprehensively considers multiple technical indicators, which complement each other under different market conditions, providing a comprehensive reflection of market trends and avoiding the errors that may occur with a single indicator.

  2. Strict entry conditions, avoiding frequent trading: The strategy sets strict entry conditions, requiring multiple indicators to be satisfied simultaneously before entering a position, which effectively avoids frequent trading in range-bound markets and reduces the attrition of the strategy.

  3. Multi-timeframe analysis, grasping the big trend: The strategy performs analysis across multiple timeframes, which helps the strategy grasp the main trends of the market from a larger perspective, avoiding interference from short-term noise.

  4. Clear stop-loss strategy, controllable risk: The strategy uses SuperTrend as a stop-loss condition. Once the market trend changes, the strategy can stop loss in a timely manner, keeping losses within an acceptable range.

Risk Analysis

  1. Lack of dynamic adjustment, limited ability to respond to market changes: The parameter settings of this strategy are fixed and lack the ability to dynamically adjust according to market conditions. When market conditions change significantly, the strategy may fail.

  2. Overly strict entry conditions may miss good opportunities: The entry conditions of the strategy are very strict, which, although it can avoid frequent trading, may also lead to the strategy missing some good entry opportunities.

  3. Adaptability to extreme market conditions is unknown: The strategy performs well under normal market conditions, but its adaptability to some extreme market conditions, such as rapid and substantial reversals, remains to be tested.

  4. Relatively simple stop-loss strategy, room for optimization: Currently, the strategy only uses SuperTrend as a stop-loss condition. Although this is simple and straightforward, there is further room for optimization in the stop-loss strategy to better control risk.

Optimization Directions

  1. Introduce market condition judgment, dynamically adjust parameters: Consider introducing some market condition judgment indicators, such as volatility indicators, to dynamically adjust strategy parameters according to changes in market conditions to adapt to different market environments.

  2. Optimize entry conditions, improve sensitivity: Consider optimizing the entry conditions, such as introducing more confirmation indicators, to improve the sensitivity of the strategy while ensuring reliability, capturing more trading opportunities.

  3. Add response measures for extreme market conditions: For some extreme market conditions, such as rapid and substantial reversals, consider introducing some special response measures, such as increasing the intensity of stop-loss or suspending trading, to reduce the risk of the strategy under extreme market conditions.

  4. Optimize stop-loss strategy, improve risk control capabilities: Consider introducing more stop-loss conditions, such as time stop-loss, range stop-loss, etc. Also consider introducing some dynamic stop-loss strategies, such as trailing stop-loss, to better control risk.

Summary

TrendHunter w/MF Multi-Timeframe Trend Strategy is a trend-following strategy based on multi-indicator, multi-timeframe analysis. This strategy, through the comprehensive consideration of factors such as Ichimoku Cloud, Moving Averages, SuperTrend, WaveTrend, and MoneyFlow, strict entry condition settings, and multi-timeframe analysis, can capture the main trends of the market relatively reliably, avoiding frequent trading in range-bound markets, and has good stability and reliability.

At the same time, this strategy also has some limitations and risks, such as the lack of dynamic adjustment capabilities, potentially overly strict entry conditions, unknown adaptability to extreme market conditions, and a relatively simple stop-loss strategy. These are all areas where this strategy can be optimized and improved in the future.

Overall, TrendHunter w/MF Multi-Timeframe Trend Strategy is a trend-following strategy with good potential. When using this strategy, traders should fully understand its principles, advantages, and risks, and make necessary adjustments and optimizations according to their own risk preferences and trading styles. At the same time, they should also closely monitor changes in market conditions and adjust the strategy in a timely manner to adapt to market changes. Only on the basis of in-depth understanding and prudent use can this strategy give full play to its potential advantages and bring stable returns for traders.

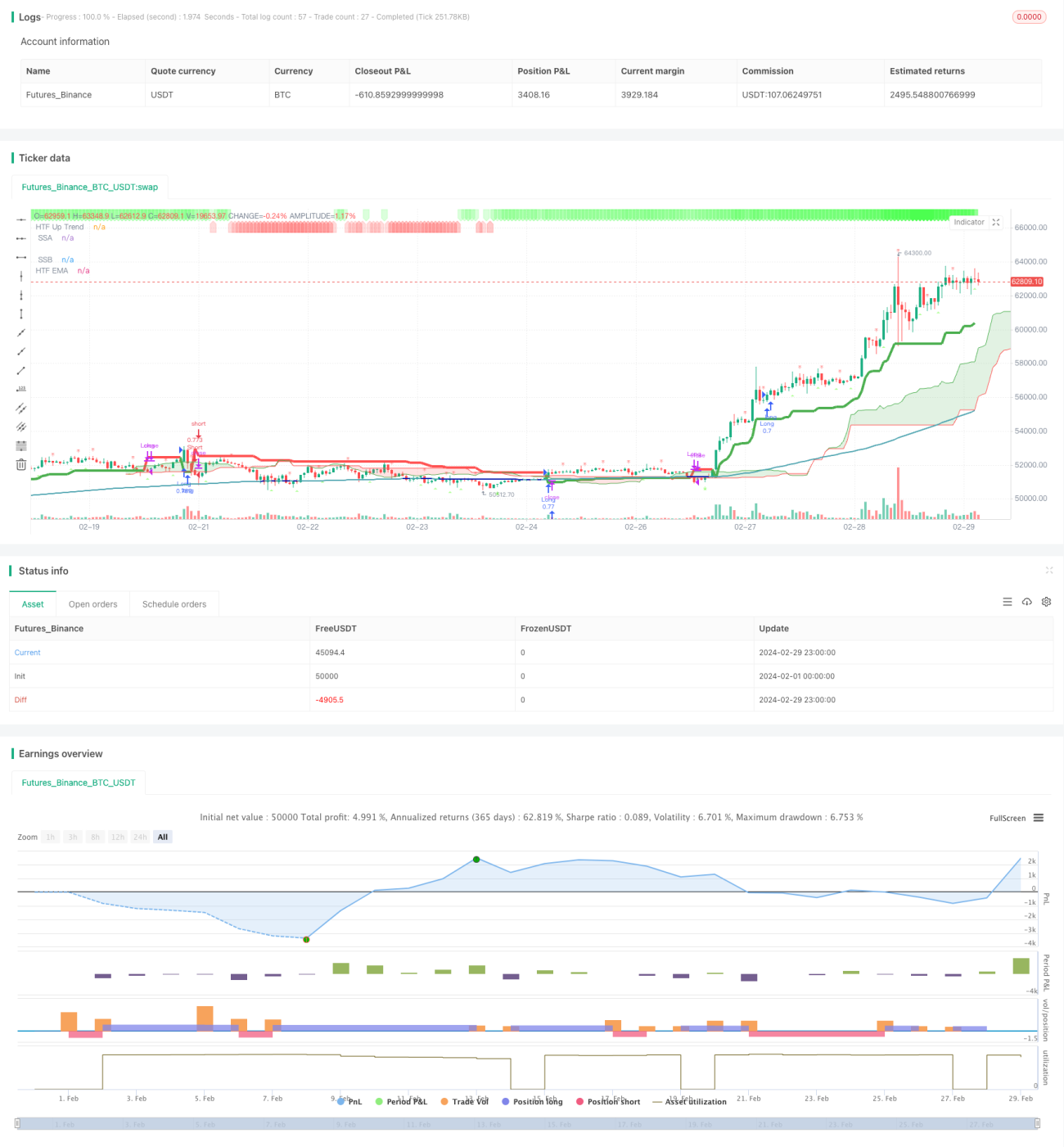

/*backtest
start: 2024-02-01 00:00:00
end: 2024-02-29 23:59:59
period: 1h
basePeriod: 15m
exchanges: [{"eid":"Futures_Binance","currency":"BTC_USDT"}]
*/

// This Pine Script™ code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © godzcopilot / blockybears

// Thanks to anthonyf50 for his MTF Ichimoku https://www.tradingview.com/script/Pw9cBFma/
// Thanks to KivancOzbilgic for his SuperTrend https://www.tradingview.com/script/r6dAP7yi/
// Thanks to ZenAndTheArtOfTrading / PineScriptMastery for their Higher Timeframe EMA https://www.tradingview.com/script/Vh3XG9sD-Higher-Timeframe-EMA/
//  Thanks to LazyBear for WaveTrend Oscillator https://www.tradingview.com/script/2KE8wTuF-Indicator-WaveTrend-Oscillator-WT/
//  Thanks to andreholanda73 for MFI+RSI Area https://www.tradingview.com/script/UlGZzUAr/

//@version=5
strategy("TrendHunter w/MF [Blocky]", overlay=true, default_qty_type=strategy.percent_of_equity, default_qty_value=80, initial_capital=1000, pyramiding=0)

// ================
// Strategy Inputs
// ================

// Defines user inputs for configuring the strategy.

// Inputs for EMA
len     = input.int(title="EMA Length", defval=200, group ='== EMA ==')
col     = input.bool(title="Colour EMA", defval=true, group ='== EMA ==')

// SuperTrend
Periods = input(title='ATR: Period', defval=10, group = '== Supertrend ==', inline = 'atr')
Multiplier = input.float(title='Mult', step=0.1, defval=3.0, group = '== Supertrend ==', inline = 'atr')
Src = input.source(title='Src', defval=hl2, group = '== Supertrend ==', inline = 'atr')

// Ichimoku
conversionPeriods = input.int(9, minval=1, title='Conversion', group = '== Ichimoku ==', inline = 'ich1')
basePeriods = input.int(26, minval=1, title='Base', group = '== Ichimoku ==', inline = 'ich1')
laggingSpan2Periods = input.int(52, minval=1, title='Lagging', group = '== Ichimoku ==', inline = 'ich2')
displacement = input.int(26, minval=1, title='Displacement', group = '== Ichimoku ==', inline = 'ich2')

// Ichimoku Display Options
isActiveConversion = input(false, 'Conversion', group = '== Ichimoku ==', inline = 'lines1')
isActiveBase = input(false, 'Base', group = '== Ichimoku ==', inline = 'lines1')
isActiveLagging = input(false, 'Lagging', group = '== Ichimoku ==', inline = 'lines1')
isActiveCloud = input(true, 'Cloud', group = '== Ichimoku ==', inline = 'lines1')


// Input for WaveTrend
n1 = input(9, 'Channel Length', group = '== WaveTrend ==', inline = 'wt1')
n2 = input(12, 'Average Length', group = '== WaveTrend ==', inline = 'wt1')

obLevel = input(60, 'Over Bought', group = '== WaveTrend ==', inline = 'wt2')
osLevel = input(-60, 'Over Sold', group = '== WaveTrend ==', inline = 'wt2')

// Input for Money Flow
rsiMFIperiod = input(60, 'Money Flow Length', group = '== Money Flow ==', inline = 'mf')
rsiMFIMultiplier = input(190, 'RSI+MFI Area multiplier', group = '== Money Flow ==', inline = 'mf')
MFRSIMA = input.string(defval='SMA', title='Money Flow MA Type', options=['RMA', 'SMA', 'EMA', 'WMA', 'VWMA'], group = '== Money Flow ==', inline = 'mf')


// ================
// Strategy Options
// ================

bTable = input.bool(false, title='Trade Table', group='== Strategy Options ==', tooltip = "Show table that shows current selected options and trade trade entry parameters")

bLong = input.bool(true, title='Enter Longs', group='== Strategy Options ==', inline = 'LongShort')
bShort = input.bool(true, title='Enter Shorts', group='== Strategy Options ==', inline = 'LongShort', tooltip = "Filter long / short trade signals")

bPriceCloud = input.bool(true, title='Price outside cloud', group='== Strategy Options ==', inline='PriceCloud')
priceActionOption = input.string(title="", defval="Close", options=["Close", "Candle Body", "Full Candle"], group = "== Strategy Options ==", inline='PriceCloud')

bPriceEMA = input.bool(false, title='Price above/below EMA', group='== Strategy Options ==', inline='PriceEMA')
priceEMAOption = input.string(title="", defval="Close", options=["Close", "Candle Body", "Full Candle"], group = "== Strategy Options ==", inline='PriceEMA')

bSuper = input.bool(true, title='Supertrend transistions', group='== Strategy Options ==', tooltip = "Trade in direction of the supertrend transitions")

bEMACloud1 = input.bool(true, title='EMA Outside Cloud', group='== Strategy Options ==', tooltip = "EMA must be outside the ichimoku cloud")
bEMACloud2 = input.bool(false, title='EMA above/below Cloud', group='== Strategy Options ==', tooltip = "Longs when EMA above the cloud.\nShort when EMA below the cloud")

bMFI = input.bool(false, title='Money Flow', group='== Strategy Options ==', tooltip = "Money Flow Green for Long\nMoney Flow Red for Short")
bWT = input.bool(false, title='Wavetrend', group='== Strategy Options ==', inline = 'WT')
bWTOB = input.bool(false, title='Overbought/sold', group='== Strategy Options ==', tooltip = "Longs when WT Rising\nShort when WT Falling\n\nRestrict entries if in overbough or oversold levels",inline = 'WT')

bExitHTFTrail = input.bool(true, title='Super Trend Exits', group='== Strategy Options ==', inline = 'Exits')


// ===========================
// EMA Functions and Plotting
// ===========================

// Calculate EMA
ema = ta.ema(close, len)
emaSmooth = request.security(syminfo.tickerid, "", ema[barstate.isrealtime ? 1 : 0], gaps=barmerge.gaps_on)[barstate.isrealtime ? 0 : 1]


// Draw EMA
plot(emaSmooth, color=col ? (close > emaSmooth ? color.rgb(76, 163, 175) : color.rgb(6, 23, 173)) : color.black, linewidth=2, title="HTF EMA")


// ==================================
// Supertrend Functions and Plotting
// ==================================

// Function to calculate SuperTrend
calcSuperTrend(src, atrPeriods, multiplier) =>
    atr = ta.atr(atrPeriods)
    up = src - multiplier * atr
    up1 = nz(up[1], up)
    up := close[1] > up1 ? math.max(up, up1) : up
    dn = src + multiplier * atr
    dn1 = nz(dn[1], dn)
    dn := close[1] < dn1 ? math.min(dn, dn1) : dn
    trend = 1
    trend := nz(trend[1], trend)
    trend := trend == -1 and close > dn1 ? 1 : trend == 1 and close < up1 ? -1 : trend
    [up, dn, trend]


// Fetching the higher time frame data
[HTF_up, HTF_dn, HTF_trend] = request.security(syminfo.tickerid, "", calcSuperTrend(hl2, Periods, Multiplier), lookahead=barmerge.lookahead_on)

// Plotting for the higher time frame
plot(HTF_trend == 1 ? HTF_up : HTF_dn, title='HTF Up Trend', color= HTF_trend == 1 ? color.green : color.red, linewidth=4)


// ===============================
// Ichimoku Functions and Plotting
// ===============================

// Function to convert timeframe to hours
f_convertTimeframeToHours(tf) =>
    val = 0.0
    if tf == "1S" or tf == "S"
        val := 1.0 / 3600.0
    else if str.contains(tf, "S")
        val := str.tonumber(str.replace(tf, "S", "")) / 3600.0
    else if tf == "1D" or tf == "D"
        val := 24.0
    else if str.contains(tf, "D")
        val := str.tonumber(str.replace(tf, "D", "")) * 24.0
    else if tf == "1W" or tf == "W"
        val := 24.0 * 7.0
    else if str.contains(tf, "W")
        val := str.tonumber(str.replace(tf, "W", "")) * 24.0 * 7.0
    else if tf == "1M" or tf == "M"
        val := 24.0 * 30.0  // Approximation for a month
    else if str.contains(tf, "M")
        val := str.tonumber(str.replace(tf, "M", "")) * 24.0 * 30.0  // Approximation for months
    else
        // Default to minutes
        val := str.tonumber(tf) / 60.0
    val

// Time
timeOffset = time - time[1]


// Returns the displacement based on the chart / HTF resolution
f_getDisplacement(_res) =>
    _res == '' ? displacement : math.round(f_convertTimeframeToHours(_res) / f_convertTimeframeToHours(timeframe.period) * displacement)
    //f_avgDilationOf(_res) * displacement

// Returns average value between lowest and highest
f_avgLH(_len) =>
    math.avg(ta.lowest(_len), ta.highest(_len))

// Returns f_donchian data
f_donchian(_tf, _src) =>
    request.security(syminfo.tickerid, _tf, _src, barmerge.gaps_off, barmerge.lookahead_on)

// Returns ichimoku data
f_ichimokuData(_tf) =>
    _isShow = _tf == '' or f_convertTimeframeToHours(_tf) >= f_convertTimeframeToHours(timeframe.period)
    _displacement = _isShow ? f_getDisplacement(_tf) : na
    _Conversion = _isShow ? f_donchian(_tf, f_avgLH(conversionPeriods)) : na
    _Base = _isShow ? f_donchian(_tf, f_avgLH(basePeriods)) : na
    _Lagging = _isShow ? f_donchian(_tf, close) : na
    _SSA = _isShow ? math.avg(_Conversion, _Base) : na
    _SSB = _isShow ? f_donchian(_tf, f_avgLH(laggingSpan2Periods)) : na
    _middleCloud = _isShow ? _SSA[0] > _SSB[0] ? _SSA[0] - math.abs(_SSA[0] - _SSB[0]) / 2 : _SSA[0] + math.abs(_SSA[0] - _SSB[0]) / 2 : na
    [_displacement, _Conversion, _Base, _Lagging, _SSA, _SSB, _middleCloud]

// Plotting ichimoku data

[Displacement, Conversion, Base, Lagging, SSA, SSB, fisrtMiddleCloud] = f_ichimokuData("")

// ————— Conversion
plot(isActiveConversion ? Conversion : na, color=color.new(color.blue, 0), title=' Conversion', linewidth=1)
// ————— Base
plot(isActiveBase ? Base : na, color=color.new(color.fuchsia, 0), title=' Base', linewidth=2)
// ————— Lagging
plot(isActiveLagging ? Lagging : na, offset=-Displacement, color=color.new(color.green, 0), title=' Lagging')

// ————— SSA + SSB
ssa = plot(isActiveCloud ? SSA : na, offset=Displacement, color=color.new(color.green, 0), title=' SSA', linewidth=1)
ssb = plot(isActiveCloud ? SSB : na, offset=Displacement, color=color.new(color.red, 0), title=' SSB', linewidth=1)
fill(ssa, ssb, color=color.new(SSA > SSB ? color.green : color.red , 80), title=' Cloud')


// ===============================
// Makret Cypher Additions
// ===============================


// WaveTrend calculations
ap = hlc3
esa = ta.ema(ap, n1)
d = ta.ema(math.abs(ap - esa), n1)
ci = (ap - esa) / (0.015 * d)
tci = ta.ema(ci, n2)

wt1 = tci
wt2 = ta.sma(wt1, 3)

// WaveTrend plotting
//plot(0, color=color.rgb(120, 123, 134), title='Zero Line')
//plot(emaSmooth + wt1, color=color.rgb(191, 228, 255), style=plot.style_linebr, title='WaveTrend 1')
//plot(emaSmooth + wt2, color=color.rgb(56, 56, 56, 40), style=plot.style_linebr, title='WaveTrend 2')

// WaveTrend shapes
plotshape(ta.crossover(wt1, wt2) and wt2[2] < osLevel ? close : na, title='Pos Crossover', location=location.belowbar, style=shape.cross, size=size.small, color=color.rgb(63, 255, 0, 60))
plotshape(ta.crossover(wt2, wt1) and wt1[2] > osLevel ? close : na, title='Neg Crossover', location=location.abovebar, style=shape.cross, size=size.small, color=color.rgb(255, 82, 82, 60))
plotshape(ta.crossover(wt1, wt2) and osLevel ? close : na, title='Positive Crossover', location=location.belowbar, style=shape.triangleup, size=size.tiny, color=color.rgb(63, 255, 0, 60))
plotshape(ta.crossover(wt2, wt1) and obLevel ?  close : na, title='Negative Crossover', location=location.abovebar, style=shape.triangledown, size=size.tiny, color=color.rgb(255, 82, 82, 60))

// Function to determine WaveTrend direction and steepness
isWaveTrendUp() =>
    wt1Slope = wt1 - wt1[1]
    wt2Slope = wt2 - wt2[1]
    if wt1 > wt2 // wt1Slope > 0 and wt2Slope > 0
        1  // Both are going up
    else if wt1 < wt2 // wt1Slope < 0 and wt2Slope < 0
        2 // Both are going down
    else
        na  // Trends are not in the same direction



ma(matype, src, length) =>
    if matype == 'RMA'
        ta.rma(src, length)
    else
        if matype == 'SMA'
            ta.sma(src, length)
        else
            if matype == 'EMA'
                ta.ema(src, length)
            else
                if matype == 'WMA'
                    ta.wma(src, length)
                else
                    if matype == 'VWMA'
                        ta.vwma(src, length)
                    else
                        src

// Money Flow calculations
candleValue = (close - open) / (high - low)
MVC = ma(MFRSIMA, candleValue, rsiMFIperiod)
MVC := MVC * rsiMFIMultiplier
mfi_transp = math.abs(MVC) > 35 ? 0 : math.abs(MVC) > 30 ? 20 : math.abs(MVC) > 25 ? 30 : math.abs(MVC) > 20 ? 40 : math.abs(MVC) > 15 ? 50 : math.abs(MVC) > 10 ? 60 : math.abs(MVC) > 5 ? 65 : math.abs(MVC) > 2 ? 70 : 80
color_area = MVC > 0 ? color.rgb(76, 255, 80, mfi_transp) : color.rgb(255, 82, 82, mfi_transp)

// Money Flow plotting
// RSIMFIplot = plot(MVC * rsiMFIMultiplier, title='Money Flow', color=color_area, style=plot.style_area)
// fill(RSIMFIplot, plot(0), color_area)

plotshape(MVC > 0 ? true : na, title='MFI', location=location.top, style=shape.labeldown, size= size.tiny, color=color_area)
plotshape(MVC < 0 ? true : na, title='MFI', location=location.top, style= shape.labelup, size= size.tiny, color=color_area)




// ===============================
// Strategy Entries
// ===============================

// Checks whether price is inside the Ichimoku cloud
f_PriceCloud(dir) =>
    _enter = false
    if bPriceCloud
        if bLong and dir == 1
            _enter := switch priceActionOption
                "Close" => close > math.max(SSA[Displacement], SSB[Displacement])
                "Candle Body" => open > math.max(SSA[Displacement], SSB[Displacement]) and close > math.max(SSA[Displacement], SSB[Displacement])
                "Full Candle" => low > math.max(SSA[Displacement], SSB[Displacement]) and high > math.max(SSA[Displacement], SSB[Displacement])
        if bShort and dir == 2
            _enter := switch priceActionOption
                "Close" => close < math.min(SSA[Displacement], SSB[Displacement])
                "Candle Body" => open < math.min(SSA[Displacement], SSB[Displacement]) and close < math.min(SSA[Displacement], SSB[Displacement])
                "Full Candle" => low < math.min(SSA[Displacement], SSB[Displacement]) and high < math.min(SSA[Displacement], SSB[Displacement])
    else
        _enter := na
    _enter

// Checks whether price is above / below the ema
f_PriceEMA(dir) =>
    _enter = false
    if bPriceEMA
        if bLong and dir == 1
            _enter := switch priceEMAOption
                "Close" => close > math.max(SSA[Displacement], SSB[Displacement])
                "Candle Body" => open > math.max(SSA[Displacement], SSB[Displacement]) and close > math.max(SSA[Displacement], SSB[Displacement])
                "Full Candle" => low > math.max(SSA[Displacement], SSB[Displacement]) and high > math.max(SSA[Displacement], SSB[Displacement])
        if bShort and dir == 2
            _enter := switch priceEMAOption
                "Close" => close < math.min(SSA[Displacement], SSB[Displacement])
                "Candle Body" => open < math.min(SSA[Displacement], SSB[Displacement]) and close < math.min(SSA[Displacement], SSB[Displacement])
                "Full Candle" => low < math.min(SSA[Displacement], SSB[Displacement]) and high < math.min(SSA[Displacement], SSB[Displacement])
    else
        _enter := na
    _enter

// Checks HTF supertrend direction
f_Super(dir) =>
    _enter = false
    if bSuper
        if bLong and dir == 1
            _enter := HTF_trend == 1
        if bShort and dir == 2
            _enter := HTF_trend == -1
    else
        _enter := na

    _enter

// Checks whether ema is inside the Ichimoku cloud
f_EMACloud1(dir) =>
    _enter = false
    if bEMACloud1
        if bLong and dir == 1
            _enter := (emaSmooth > math.max(SSA[Displacement], SSB[Displacement])) or (emaSmooth < math.min(SSA[Displacement], SSB[Displacement]))
        if bShort and dir == 2
            _enter := (emaSmooth > math.max(SSA[Displacement], SSB[Displacement])) or (emaSmooth < math.min(SSA[Displacement], SSB[Displacement]))
    else
        _enter := na
    _enter

// Checks whether ema is above/below Ichimoku cloud
f_EMACloud2(dir) =>
    _enter = false
    if bEMACloud2
        if bLong and dir == 1
            _enter := emaSmooth > math.max(SSA[Displacement], SSB[Displacement])
        if bShort and dir == 2
            _enter := emaSmooth < math.min(SSA[Displacement], SSB[Displacement])
    else
        _enter := na
    _enter

// Checks whether moneyflow is positive
f_MFI(dir) =>
    _enter = false
    if bMFI
        if bLong and dir == 1
            _enter := MVC > 0
        if bShort and dir == 2
            _enter := MVC < 0
    else
        _enter := na
    _enter


// Checks whether wavetrend is rising or falling
f_WT(dir) =>
    _enter = false
    if bWT
        if bLong and dir == 1
            _enter := isWaveTrendUp() == dir
        if bShort and dir == 2
            _enter := isWaveTrendUp() == dir
    else
        _enter := na
    _enter


f_WTOB(dir) =>
    _enter = false
    if bWT and bWTOB
        if bLong and dir == 1
            _enter := wt1 < obLevel
        if bShort and dir == 2
            _enter := wt1 > osLevel
    else
        _enter := na
    _enter


// Check if a value is 'na' or true.
f_NATrue(val) =>
    _enter = false
    if na(val)
        _enter := true
    if val
        _enter := true
    _enter


// Consolidates entry conditions.
f_checkCondition(dir) =>
    _enter = false
    if na(f_PriceCloud(dir)) and na(f_PriceEMA(dir)) and na(f_Super(dir)) and na(f_EMACloud1(dir)) and na(f_EMACloud2(dir)) and na(f_MFI(dir)) and na(f_WT(dir)) and na(f_WTOB(dir))
        _enter := false
    else if f_NATrue(f_PriceCloud(dir)) and f_NATrue(f_PriceEMA(dir)) and f_NATrue(f_Super(dir)) and f_NATrue(f_EMACloud1(dir)) and f_NATrue(f_EMACloud2(dir)) and f_NATrue(f_MFI(dir)) and f_NATrue(f_WT(dir)) and f_NATrue(f_WTOB(dir))
        _enter := true
    _enter


// Execute long trade entries
longCondition = bLong and f_checkCondition(1)
if (longCondition)
    strategy.entry("Long", strategy.long)

// Execute short trade entries
shortCondition = bShort and f_checkCondition(2)
if (shortCondition)
    strategy.entry("Short", strategy.short)

// Excute trade exits
exitLong = (bExitHTFTrail and (close < HTF_up or HTF_trend == -1))
exitShort = (bExitHTFTrail and (close > HTF_dn or HTF_trend == 1))

if exitLong
    strategy.close("Long")

if exitShort
    strategy.close("Short")

// Creates a table shoing all the user options and their current status for entering a trade
if bTable
    // Create a table
    tbl = table.new(position = position.bottom_right, columns = 4, rows = 11, bgcolor=color.new(color.black,100), border_width = 0, frame_width = 0)

    table.cell(tbl, 1, 0, "Selected", text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 0, "Long", bgcolor=na(bLong) ? color.new(color.black,100) : bShort ? color.rgb(4, 112, 8) : color.rgb(100, 7, 7), text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 0, "Short", bgcolor=na(bShort) ? color.new(color.black,100) : bShort ? color.rgb(4, 112, 8) : color.rgb(100, 7, 7), text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))

    table.cell(tbl, 0, 1, "Entry", text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 1, longCondition  ? "✓" : "✗", bgcolor=longCondition ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 1, shortCondition  ? "✓" : "✗", bgcolor=shortCondition ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))


    table.cell(tbl, 0, 3, "Price Cloud", text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 1, 3, bPriceCloud ? "✓" : "✗", bgcolor=na(bPriceCloud) ? color.new(color.black,100) : bPriceCloud ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 3, f_PriceCloud(1) ? "✓" : "✗", bgcolor=na(f_PriceCloud(1)) ? color.new(color.black,100) : f_PriceCloud(1) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 3, f_PriceCloud(2)  ? "✓" : "✗", bgcolor=na(f_PriceCloud(2)) ? color.new(color.black,100) : f_PriceCloud(2) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))

    table.cell(tbl, 0, 4, "Price EMA", text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 1, 4, bPriceEMA ? "✓" : "✗", bgcolor=na(bPriceEMA) ? color.new(color.black,100) : bPriceEMA ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 4, f_PriceEMA(1) ? "✓" : "✗", bgcolor=na(f_PriceEMA(1)) ? color.new(color.black,100) : f_PriceEMA(1) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 4, f_PriceEMA(2) ? "✓" : "✗", bgcolor=na(f_PriceEMA(2)) ? color.new(color.black,100) : f_PriceEMA(2) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))

    table.cell(tbl, 0, 5, "SuperTrend", text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 1, 5, bSuper ? "✓" : "✗", bgcolor=na(bSuper) ? color.new(color.black,100) : bSuper ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 5, f_Super(1) ? "✓" : "✗", bgcolor=na(f_Super(1)) ? color.new(color.black,100) : f_Super(1) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 5, f_Super(2) ? "✓" : "✗", bgcolor=na(f_Super(2)) ? color.new(color.black,100) : f_Super(2) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))

    table.cell(tbl, 0, 6, "EMA Outside Cloud", text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 1, 6, bEMACloud1 ? "✓" : "✗", bgcolor=na(bEMACloud1) ? color.new(color.black,100) : bEMACloud1 ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 6, f_EMACloud1(1) ? "✓" : "✗", bgcolor=na(f_EMACloud1(1)) ? color.new(color.black,100) : f_EMACloud1(1) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 6, f_EMACloud1(2) ? "✓" : "✗", bgcolor=na(f_EMACloud1(2)) ? color.new(color.black,100) : f_EMACloud1(2) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))

    table.cell(tbl, 0, 7, "EMA Above/Below Cloud", text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 1, 7, bEMACloud2 ? "✓" : "✗", bgcolor=na(bEMACloud2) ? color.new(color.black,100) : bEMACloud2 ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 7, f_EMACloud2(1) ? "✓" : "✗", bgcolor=na(f_EMACloud2(1)) ? color.new(color.black,100) : f_EMACloud2(1) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 7, f_EMACloud2(2) ? "✓" : "✗", bgcolor=na(f_EMACloud2(2)) ? color.new(color.black,100) : f_EMACloud2(2) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))

    table.cell(tbl, 0, 8, "Moneyflow", text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 1, 8, bMFI ? "✓" : "✗", bgcolor=na(bMFI) ? color.new(color.black,100) : bMFI ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 8, f_MFI(1) ? "✓" : "✗", bgcolor=na(f_MFI(1)) ? color.new(color.black,100) : f_MFI(1) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 8, f_MFI(2) ? "✓" : "✗", bgcolor=na(f_MFI(2)) ? color.new(color.black,100) : f_MFI(2) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))

    table.cell(tbl, 0, 9, "WaveTrend", text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 1, 9, bWT ? "✓" : "✗", bgcolor=na(bWT) ? color.new(color.black,100) : bWT ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 9, f_WT(1) ? "✓" : "✗", bgcolor=na(f_WT(1)) ? color.new(color.black,100) : f_WT(1) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 9, f_WT(2) ? "✓" : "✗", bgcolor=na(f_WT(2)) ? color.new(color.black,100) : f_WT(2) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))

    table.cell(tbl, 0, 10, "Overbought/Sold  " + str.tostring(wt1, '#.#'), text_halign = text.align_left, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 1, 10, bWTOB ? "✓" : "✗", bgcolor=na(bWTOB) ? color.new(color.black,100) : bWTOB ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 2, 10, f_WTOB(1) ? "✓" : "✗", bgcolor=na(f_WTOB(1)) ? color.new(color.black,100) : f_WTOB(1) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
    table.cell(tbl, 3, 10, f_WTOB(2) ? "✓" : "✗", bgcolor=na(f_WTOB(2)) ? color.new(color.black,100) : f_WTOB(2) ? color.green : color.red, text_halign = text.align_center, text_size = size.small, text_color = color.rgb(207, 207, 207))
More

2019 FMZ - All rights reserved
