Multi-Indicator Synergistic Trend Reversal Quantitative Trading Strategy

Author: ChaoZhang, Date: 2025-01-17 15:44:01
Tags: MAEMAWMAVWMAATRSMAADX

Multi-Indicator Synergistic Trend Reversal Quantitative Trading Strategy

Overview

This strategy is a trend reversal trading system based on multiple technical indicators synchronization, primarily designed for short-term trading on 5-minute timeframes. It integrates moving average trend following, volume confirmation, ATR volatility filtering, and other multi-dimensional analysis methods to screen high-probability reversal trading opportunities through strict entry conditions. The strategy is particularly suitable for trading during high-liquidity sessions and can effectively capture short-term market reversal opportunities.

Strategy Principles

The core logic of the strategy is based on the following key components: 1. Reversal Signal Detection: Uses a lookback period (default 12 periods) to identify potential reversal patterns by analyzing price relationships with historical highs and lows. 2. Trend Confirmation: Integrates various moving average indicators including SMA, EMA, WMA, and VWMA, allowing users to select the most suitable average type for different market conditions. 3. Volume Verification: Confirms reversal signals by comparing current volume with the 20-period volume average. 4. Risk Management: Dynamically adjusts stop-loss and profit targets based on the ATR indicator, using 1.5x ATR as default stop-loss range and 2x stop-loss as profit target.

Strategy Advantages

  1. Multi-dimensional Signal Confirmation: Significantly improves trading signal reliability by integrating price patterns, trends, and volume dimensions.
  2. Flexible Parameter Configuration: Provides rich customization options including moving average type selection and lookback period settings, enabling adaptation to different market environments.
  3. Comprehensive Risk Control: Employs dynamic stop-loss based on market volatility, better adapting to market volatility changes.
  4. High Automation: Includes complete signal generation, order management, and risk control logic, achieving trading process automation.

Strategy Risks

  1. False Breakout Risk: May generate false reversal signals in choppy markets; recommended for use in trending market environments.
  2. Slippage Impact: As a short-term strategy, may face significant slippage risk during order execution; recommended trading during high-liquidity periods.
  3. Parameter Sensitivity: Strategy performance is sensitive to parameter settings, requiring thorough backtesting for parameter optimization.

Strategy Optimization Directions

  1. Market Environment Adaptation: Add market environment recognition module to automatically adjust strategy parameters under different market conditions.
  2. Signal Filtering Enhancement: Introduce more technical indicators to filter false signals, such as combining RSI and MACD indicators.
  3. Dynamic Profit Targets: Dynamically adjust risk-reward ratios based on market volatility for optimal performance in different market environments.
  4. Trading Time Optimization: Further refine trading time windows, focusing on high market activity periods.

Summary

This strategy is a well-designed short-term trading system that achieves reliable reversal signal identification and risk control through multi-indicator collaboration. Its strengths lie in flexible configuration options and comprehensive risk management mechanisms, but traders need to thoroughly optimize parameter settings and use it in suitable market environments. Through continuous optimization and improvement, this strategy has the potential to become a stable short-term trading tool.

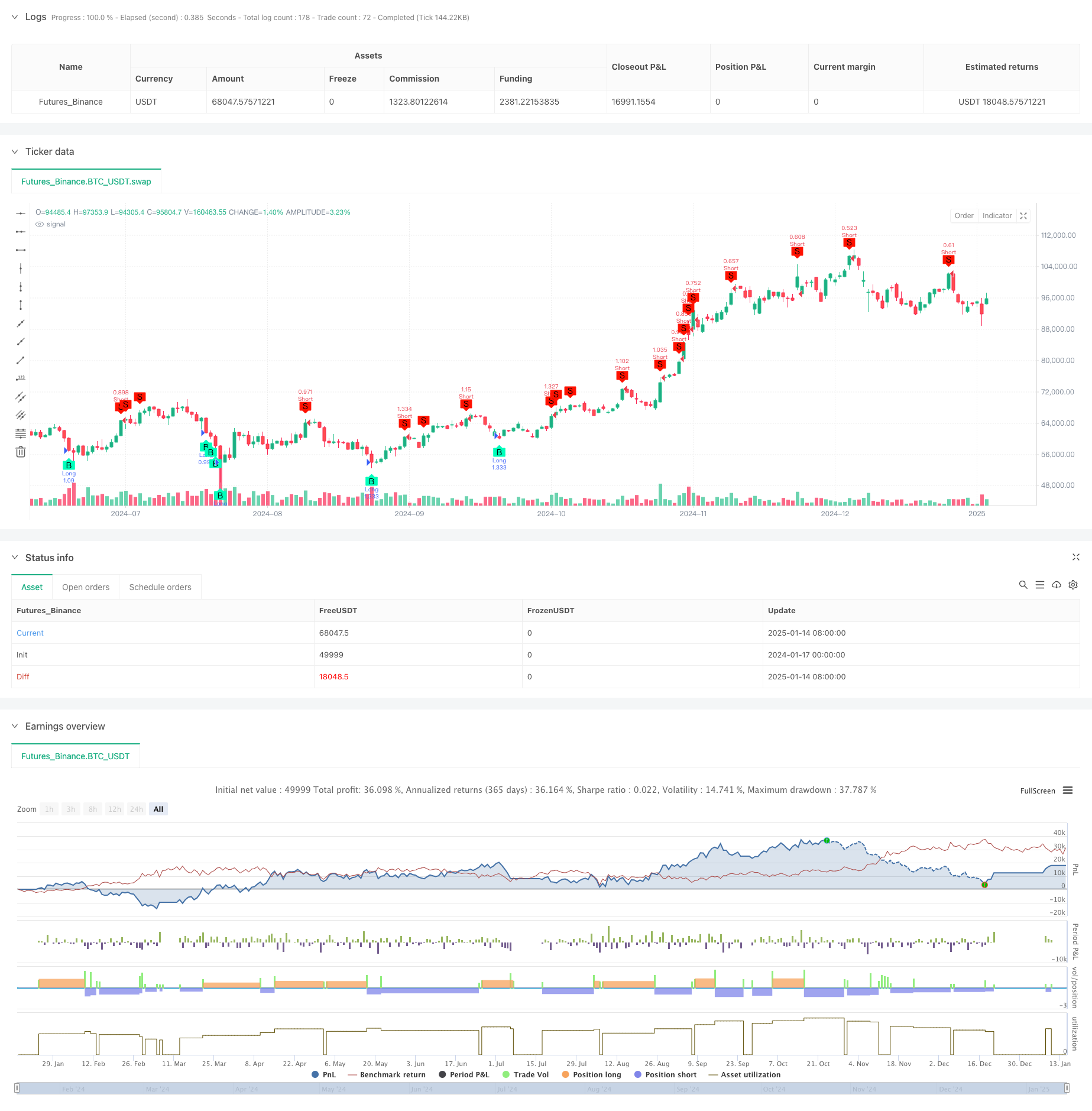

/*backtest
start: 2024-01-17 00:00:00
end: 2025-01-15 08:00:00
period: 1d
basePeriod: 1d
exchanges: [{"eid":"Futures_Binance","currency":"BTC_USDT","balance":49999}]
*/

//@version=5
strategy("Reversal Signals Strategy [AlgoAlpha]", overlay=true, default_qty_type=strategy.percent_of_equity, default_qty_value=100)

// Inputs
group_strategy = "Strategy Settings"
riskRewardRatio = input.float(2.0, "Risk-Reward Ratio", tooltip="Take Profit is Risk-Reward times Stop Loss", group=group_strategy)
stopLossATRMultiplier = input.float(1.5, "Stop Loss ATR Multiplier", tooltip="Multiplier for ATR-based stop loss", group=group_strategy)

// Reversal Signal Detection (from previous script)
group_reversal = "Reversal Detection Settings"
lookbackPeriod = input.int(12, "Candle Lookback", group=group_reversal)
confirmationPeriod = input.int(3, "Confirm Within", group=group_reversal)
enableVolumeConfirmation = input.bool(true, "Use Volume Confirmation", group=group_reversal)

group_trend = "Trend Settings"
trendMAPeriod = input.int(50, "Trend MA Period", group=group_trend)
trendMAType = input.string("EMA", "MA Type", options=["SMA", "EMA", "WMA", "VWMA"], group=group_trend)

group_appearance = "Appearance"
bullColor = input.color(#00ffbb, "Bullish Color", group=group_appearance)
bearColor = input.color(#ff1100, "Bearish Color", group=group_appearance)

// Moving Average Selection
ma_current = switch trendMAType
    "SMA" => ta.sma(close, trendMAPeriod)
    "EMA" => ta.ema(close, trendMAPeriod)
    "WMA" => ta.wma(close, trendMAPeriod)
    "VWMA" => ta.vwma(close, trendMAPeriod)

// Volume Confirmation
volumeIsHigh = volume > ta.sma(volume, 20)

// Calculate Reversal Scores
bullCandleScore = 0
bearCandleScore = 0
for i = 0 to (lookbackPeriod - 1)
    bullCandleScore += close < low[i] ? 1 : 0
    bearCandleScore += close > high[i] ? 1 : 0

// Reversal Signals
bullSignal = bullCandleScore == (lookbackPeriod - 1) and (not enableVolumeConfirmation or volumeIsHigh)
bearSignal = bearCandleScore == (lookbackPeriod - 1) and (not enableVolumeConfirmation or volumeIsHigh)

// ATR-based Stop Loss and Take Profit
atrValue = ta.atr(14)
stopLossLevel = stopLossATRMultiplier * atrValue
takeProfitLevel = stopLossLevel * riskRewardRatio

// Strategy Orders
if bullSignal
    strategy.entry("Long", strategy.long)
    strategy.exit("Long TP/SL", from_entry="Long", stop=close - stopLossLevel, limit=close + takeProfitLevel)

if bearSignal
    strategy.entry("Short", strategy.short)
    strategy.exit("Short TP/SL", from_entry="Short", stop=close + stopLossLevel, limit=close - takeProfitLevel)

// Plot Reversal Signals
plotshape(bullSignal, title="Buy Signal", style=shape.labelup, location=location.belowbar, color=bullColor, size=size.small, text="B")
plotshape(bearSignal, title="Sell Signal", style=shape.labeldown, location=location.abovebar, color=bearColor, size=size.small, text="S")

// Alerts for trade signals
alertcondition(bullSignal, "Bullish Reversal", "Bullish Reversal Signal Detected")
alertcondition(bearSignal, "Bearish Reversal", "Bearish Reversal Signal Detected")
