MACD-EMA Multi-Period Dynamic Crossover Quantitative Trading System

Author: ChaoZhang, Date: 2024-11-27 14:58:04
Tags: MACDEMAMARSI


Overview

This strategy is a quantitative trading system based on MACD and multiple-period EMA indicators. It combines the trend-following characteristics of MACD with the support and resistance features of multiple EMA lines to create a complete trading decision system. The system includes not only signal generation but also real-time alerts to help traders capture market opportunities timely.

Strategy Principle

The core logic is built on two main technical indicators. First is the MACD indicator, composed of fast line (12 periods) and slow line (26 periods), generating trading signals through their crossovers. Buy signals are generated when the MACD line crosses above the signal line, and sell signals when it crosses below. Second, the strategy incorporates five different period EMAs (10/20/50/100/200) as references for trend confirmation and support/resistance levels. This multi-period EMA design helps traders better understand the current market trend environment.

Strategy Advantages

  1. Complete Signal System: Combines MACD’s trend-following characteristics with multiple EMA trend confirmation functions.
  2. Multi-dimensional Analysis: Provides multi-level market structure reference through different period EMAs.
  3. Real-time Alert Mechanism: Integrates real-time alerts for buy/sell signals to help traders identify trading opportunities promptly.
  4. Strong Visualization: Strategy clearly displays buy/sell signals on charts for intuitive market trend understanding.
  5. Adjustable Parameters: Core parameters are customizable for optimization in different market environments.

Strategy Risks

  1. Lag Risk: Both MACD and EMA are lagging indicators, possibly resulting in delayed signals in volatile markets.
  2. False Breakout Risk: Frequent false breakout signals may occur during consolidation phases.
  3. Trend Reversal Risk: Strategy may lack adaptability at major trend turning points.
  4. Parameter Sensitivity: Fixed parameters may lead to unstable strategy performance in different market environments.

Strategy Optimization Directions

  1. Introduce Volatility Filtering: Suggest adding ATR or Bollinger Bands to filter false signals in low volatility environments.
  2. Add Volume Confirmation: Can combine volume indicators to improve signal reliability.
  3. Optimize Stop Loss Mechanism: Suggest adding dynamic stop loss functionality, such as trailing stops or ATR-based stop loss settings.
  4. Increase Market Environment Classification: Can dynamically adjust strategy parameters based on different market environments (trend/oscillation).
  5. Add Risk Control Module: Suggest adding position management and risk control functions.

Summary

This strategy constructs a relatively complete trading system by combining MACD and multi-period EMA indicators. Its strengths lie in clear signals, rich analytical dimensions, and good visualization. However, it also has inherent risks such as lag and false signals. Through optimization measures like adding volatility filtering and volume confirmation, the strategy’s stability and reliability can be further enhanced. This strategy is suitable for medium to long-term traders, particularly excelling in clear trend market environments.

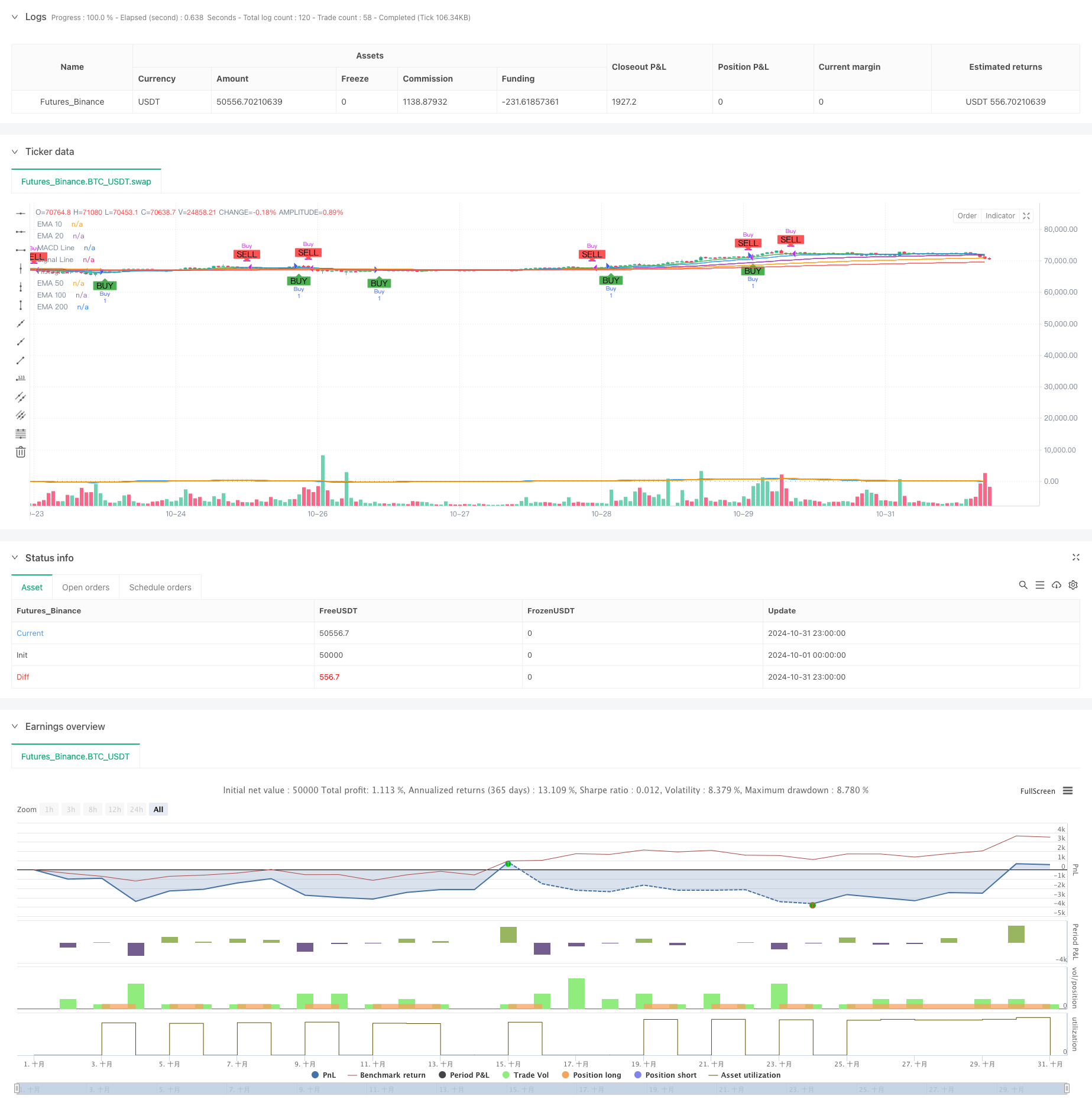

/*backtest
start: 2024-10-01 00:00:00
end: 2024-10-31 23:59:59
period: 1h
basePeriod: 1h
exchanges: [{"eid":"Futures_Binance","currency":"BTC_USDT"}]
*/

//@version=5
strategy("REEL TIME MACD Strategy with Alerts and EMAs", overlay=true)

// --- Custom Indicator: MACD ---
fastLength = input(12, title="MACD Fast Length")
slowLength = input(26, title="MACD Slow Length")
signalSmoothing = input(9, title="MACD Signal Smoothing")
src = close

[macdLine, signalLine, _] = ta.macd(src, fastLength, slowLength, signalSmoothing)
histogram = macdLine - signalLine

// Plot MACD components
plot(macdLine, color=color.blue, linewidth=2, title="MACD Line")
plot(signalLine, color=color.orange, linewidth=2, title="Signal Line")
plot(histogram, style=plot.style_histogram, color=(histogram >= 0 ? color.green : color.red), title="Histogram")

// --- Custom Indicator: EMAs ---
ema10 = ta.ema(src, 10)
ema20 = ta.ema(src, 20)
ema50 = ta.ema(src, 50)
ema100 = ta.ema(src, 100)
ema200 = ta.ema(src, 200)

// Plot EMAs on the chart
plot(ema10, color=color.green, linewidth=1, title="EMA 10")
plot(ema20, color=color.blue, linewidth=1, title="EMA 20")
plot(ema50, color=color.purple, linewidth=1, title="EMA 50")
plot(ema100, color=color.orange, linewidth=1, title="EMA 100")
plot(ema200, color=color.red, linewidth=1, title="EMA 200")

// --- Strategy: Buy and Sell conditions (MACD) ---
buyCondition = ta.crossover(macdLine, signalLine) // Buy when MACD crosses above signal line
sellCondition = ta.crossunder(macdLine, signalLine) // Sell when MACD crosses below signal line

// Execute strategy based on buy/sell conditions
if (buyCondition)
    strategy.entry("Buy", strategy.long)

if (sellCondition)
    strategy.close("Buy")

// --- Alerts ---
alertcondition(buyCondition, title="MACD Buy Alert", message="MACD XUP - Buy")
alertcondition(sellCondition, title="MACD Sell Alert", message="MACD XDN - Sell")

// Optional: Visualization for Buy/Sell signals
plotshape(series=buyCondition, location=location.belowbar, color=color.green, style=shape.labelup, title="Buy Signal", text="BUY")
plotshape(series=sellCondition, location=location.abovebar, color=color.red, style=shape.labeldown, title="Sell Signal", text="SELL")
